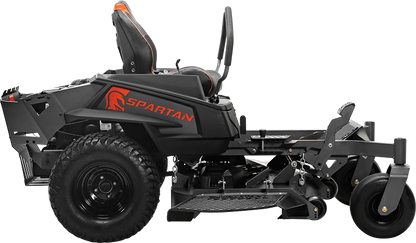

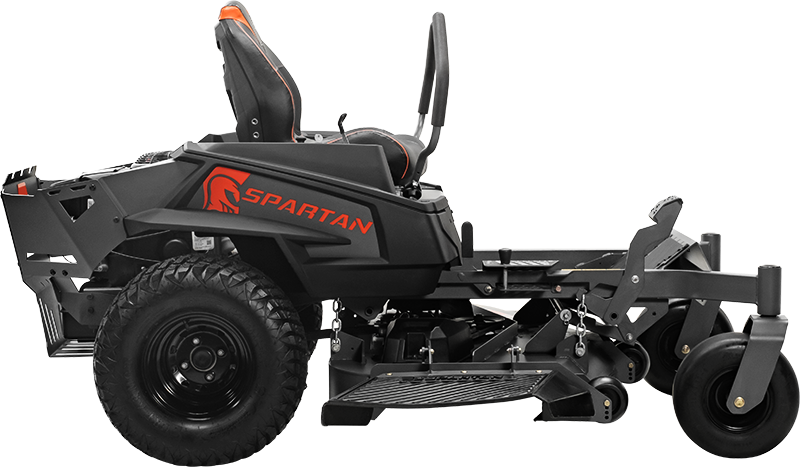

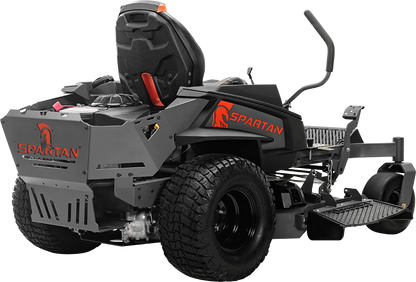

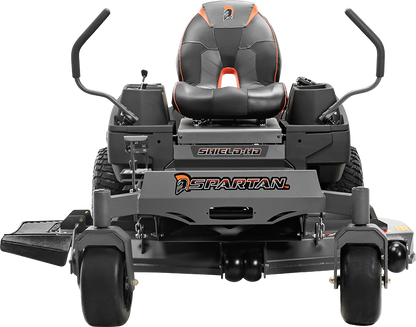

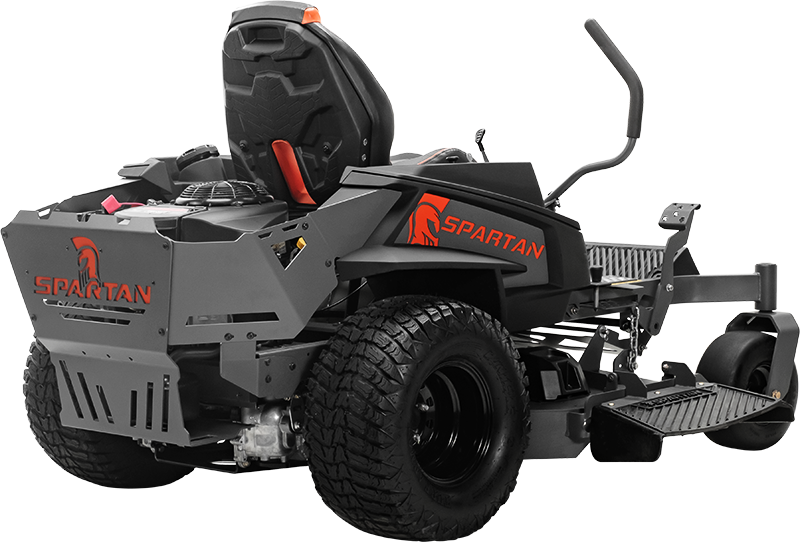

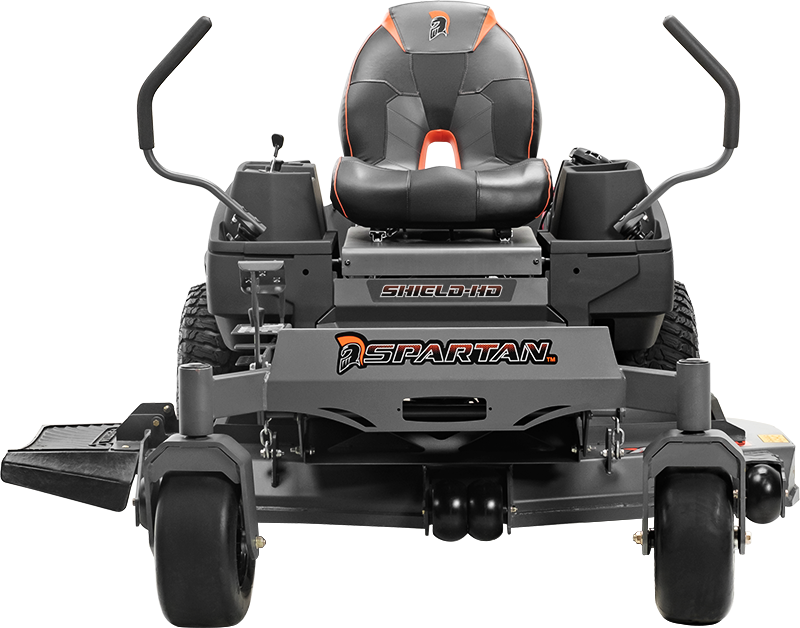

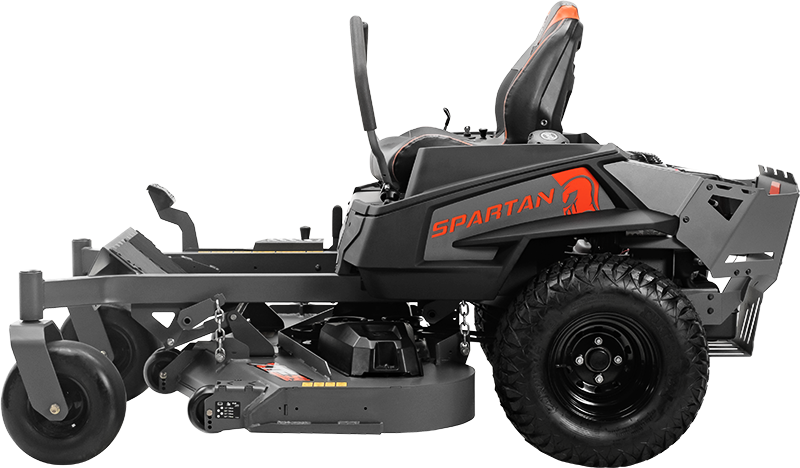

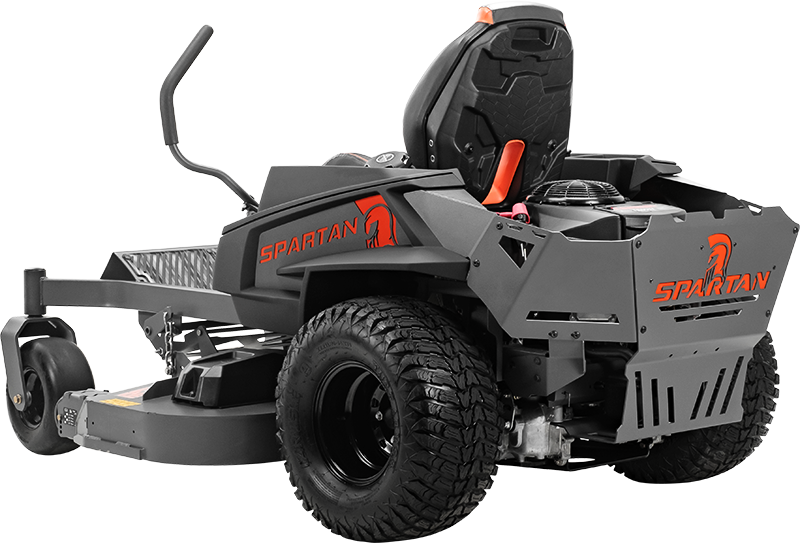

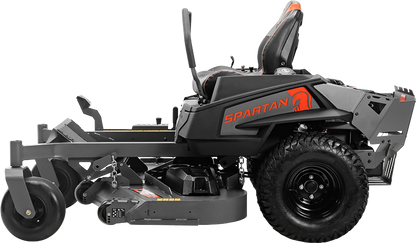

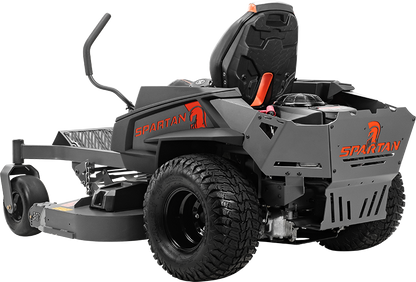

Spartan® Shield HD - Built Tough to Tackle Big Yards
Key Features
Automatic Parking Brake
Reliable automatic parking brake for hands-free safety and parking.
Hydro-Gear ZT-2800 Transmission
High-performance ZT-2800 transmission for smooth, responsive control.
5 gal Fuel Capacity
5-gallon fuel tank provides extended operation without frequent refueling.
4" Deck Height
4-inch deck height ensures a precise, clean cut for a well-manicured lawn.
Magnetic Pin Height Adjustment
Effortless cutting height adjustment with a secure magnetic pin system.
Adjustable Steering Arms
Fully adjustable steering arms for a customized and comfortable driving experience.
Key Switch Panel
Easy-to-use key switch panel for secure ignition and operation.
Foot Operated Shock Assisted Deck Lift
Convenient foot-operated deck lift with shock assistance for smooth adjustments.
Model Comparison
| Model | Deck Size | Engine | Horsepower | Transmission | Top Speed | Fuel Capacity |
|---|---|---|---|---|---|---|
| Shield | 42" / 54 | Kawasaki FR691 | 22 / 23 HP | Hydro-Gear ZT-2200 | 7 MPH | 5 gal |
| Shield-HD | 42" / 54" / 60" | Kawaski FR691V 23 HP/Spartan 24 HP | 23 / 24 HP | Hydro-Gear ZT-2800 | 8 MPH | 5 gal |
| Defender | 48" / 54" / 60" | Kawasaki FR691 | 23 / 24 HP | Hydro-Gear ZT-2800 | 8 MPH | 5 gal |
| RZ-HD | 48" / 54" / 60" | Kawasaki FR691V / Briggs CXI 27 HP / Kawasaki FR730V 24 HP / Kawasaki FR730V HP | 24 / 27 HP | Parker HTE Transaxles - 10cc Drive Motors | 9 MPH | 9.5 gal |
Available Accessories (Sold Separately)
No available accessories data found.
Offers and Financing
Best Rates for Qualified Buyers
Designed for top-tier credit customers who want the lowest rates on mowers and outdoor power equipment. Personal and commercial financing available with no early payoff penalties.
Prequalify
Fast Approval. Flexible Credit.
A strong fit for customers rebuilding or strengthening credit. Personal and commercial equipment loans with fast approvals and no prepayment penalties.
Prequalify
Equipment Without the Wait
Fast, simple approvals for entrepreneurs needing equipment quickly. Covers new and used outdoor power equipment with instant decisions up to $25,000.
Prequalify
Flexible Payments Made Simple
Ideal for mid to top-tier credit customers who want payment flexibility. Revolving credit makes it easy to finance mowers, handheld equipment, and smaller purchases.
View Details
Real Solutions for Real Credit
A strong option when traditional financing says no. Same-day approvals available for new and used mowers and equipment.
View Details
SPARTAN - Spring Mower Sales Event
Spring Mower Sales Event valid from April 1 – June 30, 2026. Credits are issued on qualified retail sales during the promotional period.
Learn MoreSpecification Highlights
Engine
Engine Name: 42" Spartan 22 HP, 54" Spartan 22 HP, 42" Kawasaki FR691V 23 HP, 54" Kawasaki FR691V 23 HP
Engine Model: Kawasaki FR691
Horsepower: 22 HP
Fuel Capacity: 5 Gallons
Drive Line
Hydraulic Drive: Hydro-Gear ZT-2200
Hydraulic Drive Torque: Up to 215 ft-lb
Hydraulic Drive Maintenance: No Maintenance Required
Front Tires: 12" Bias Ply
Drive Tires: 20x7-10 Carlisle Turf Armor
Wheel Type: Steel
Speed (F/R): Forward - Up to 7 mph, Reverse - Up to 5 mph
Features
Acreage: Up to 1 acre
Seat: Comfortable, Custom Design
Steering Levers: Soft-Touch Knobs to Adjust Forward and Back. Adjustable Up and Down
Control Panel LCD Display: N/A
Control Panel LED Warning Indicators: N/A
Ignition: Key Switch
Auxiliary Power: N/A
Storage: Cup Holder and Deep Storage Tray
Hitch: N/A
LED Light Bar: N/A
Cutting Deck
Deck Size: 42"
Deck Depth: 4"
Deck Lift: Foot Operated
Deck Adjustment: Magnetic Pin Height Adjustment
Cut Height: 1" to 5" with 15 Cut Heights
Blade Spindles: Cast Aluminum, No Maintenance/Sealed Bearings
Parking Brake: Automatic in Control Arms
Frame: 1.5" by 3" Powder Coated Frame
Measurements
Width: 42" Deck - 43.5" Wide
Weight: 682 - 719 lbs
Length: 81"
Height: 44"
Warranty
Engine Warranty: 3 Year
Leading Deck Edge Warranty: 3 Year
Hydraulic Drive Warranty: 3 Year
Control Panel Warranty: N/A
Product Warranty: 3 Year
Battery Warranty: 6 Months
Belt Warranty: 90 Days
