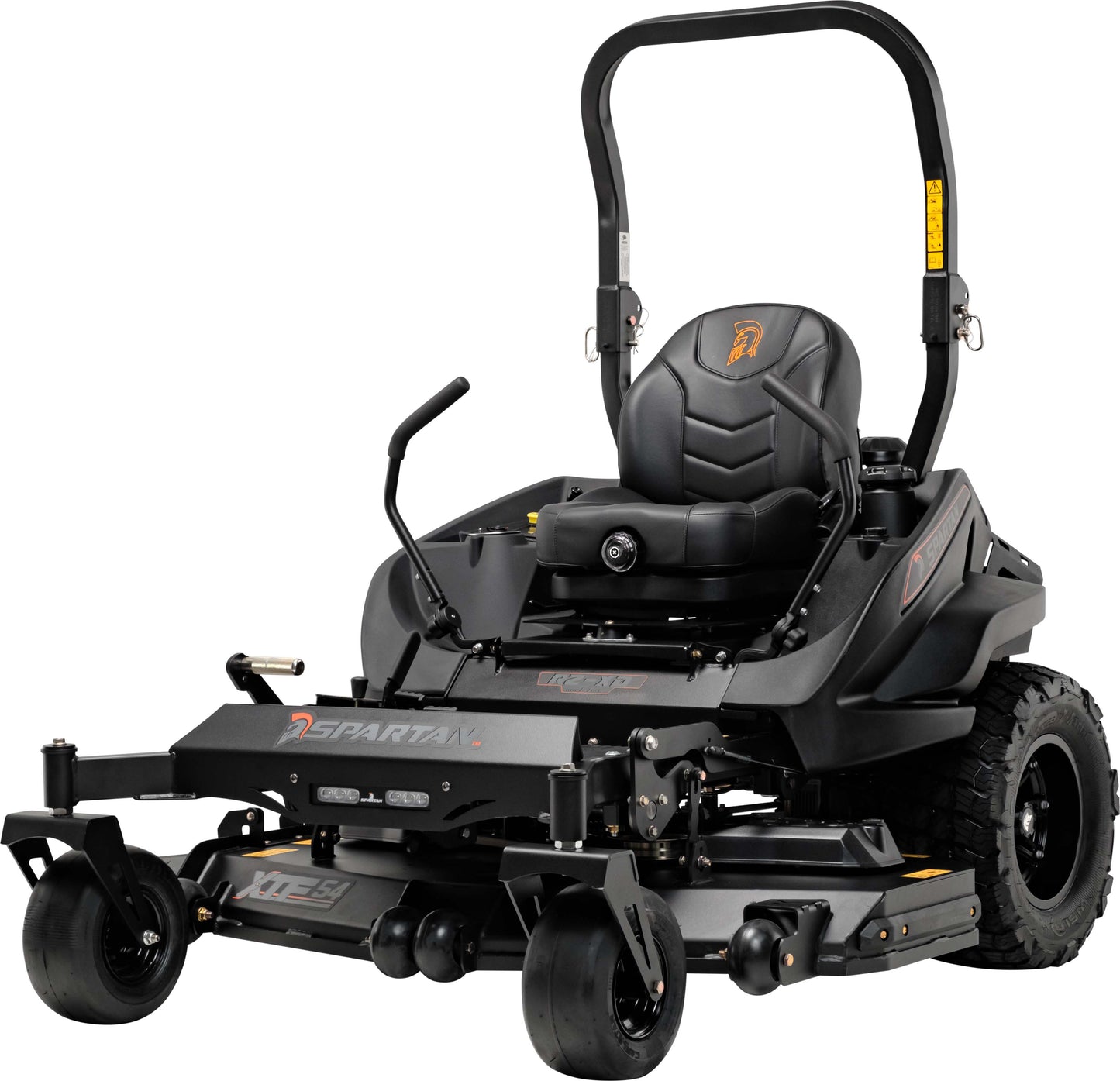

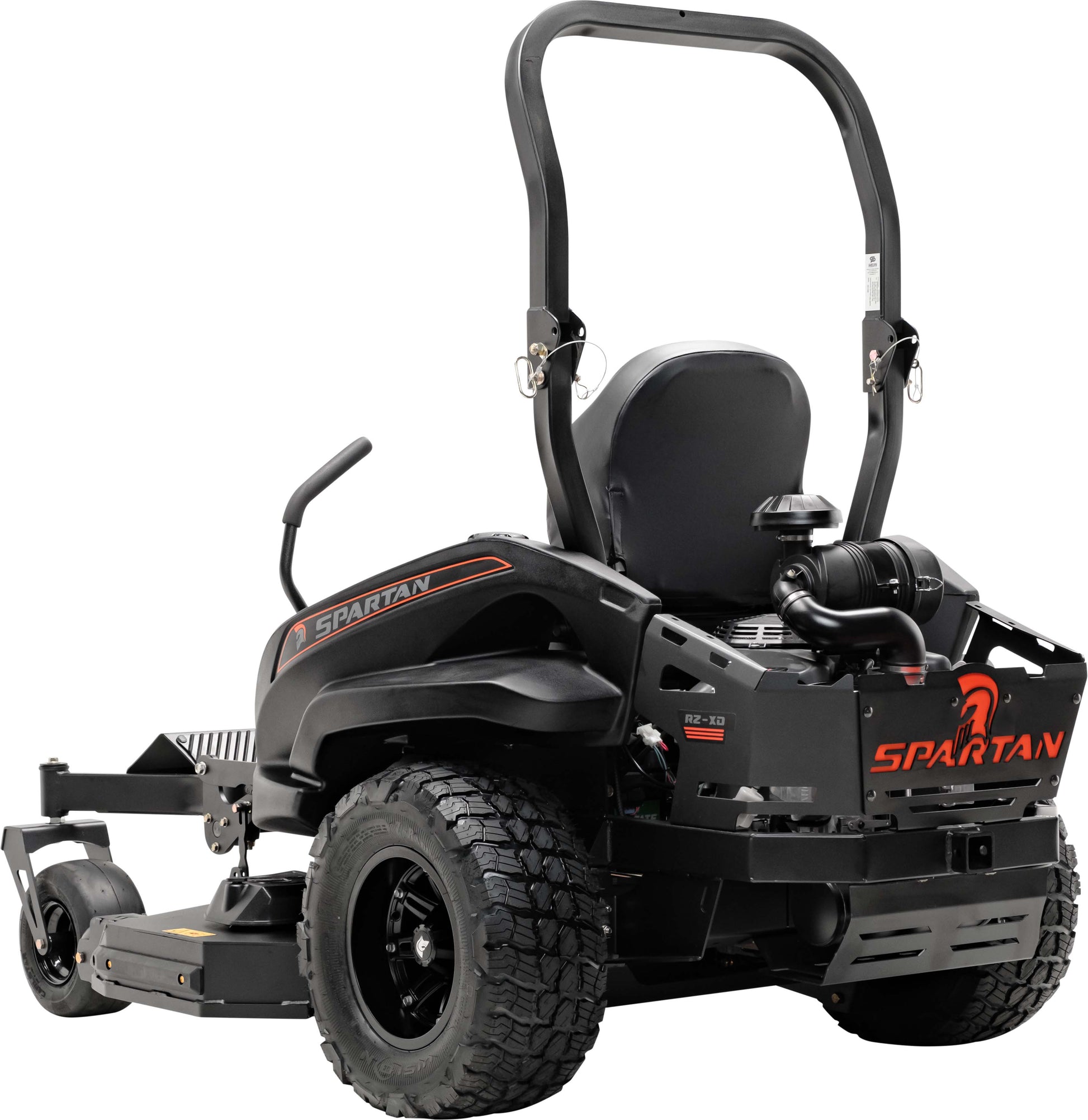

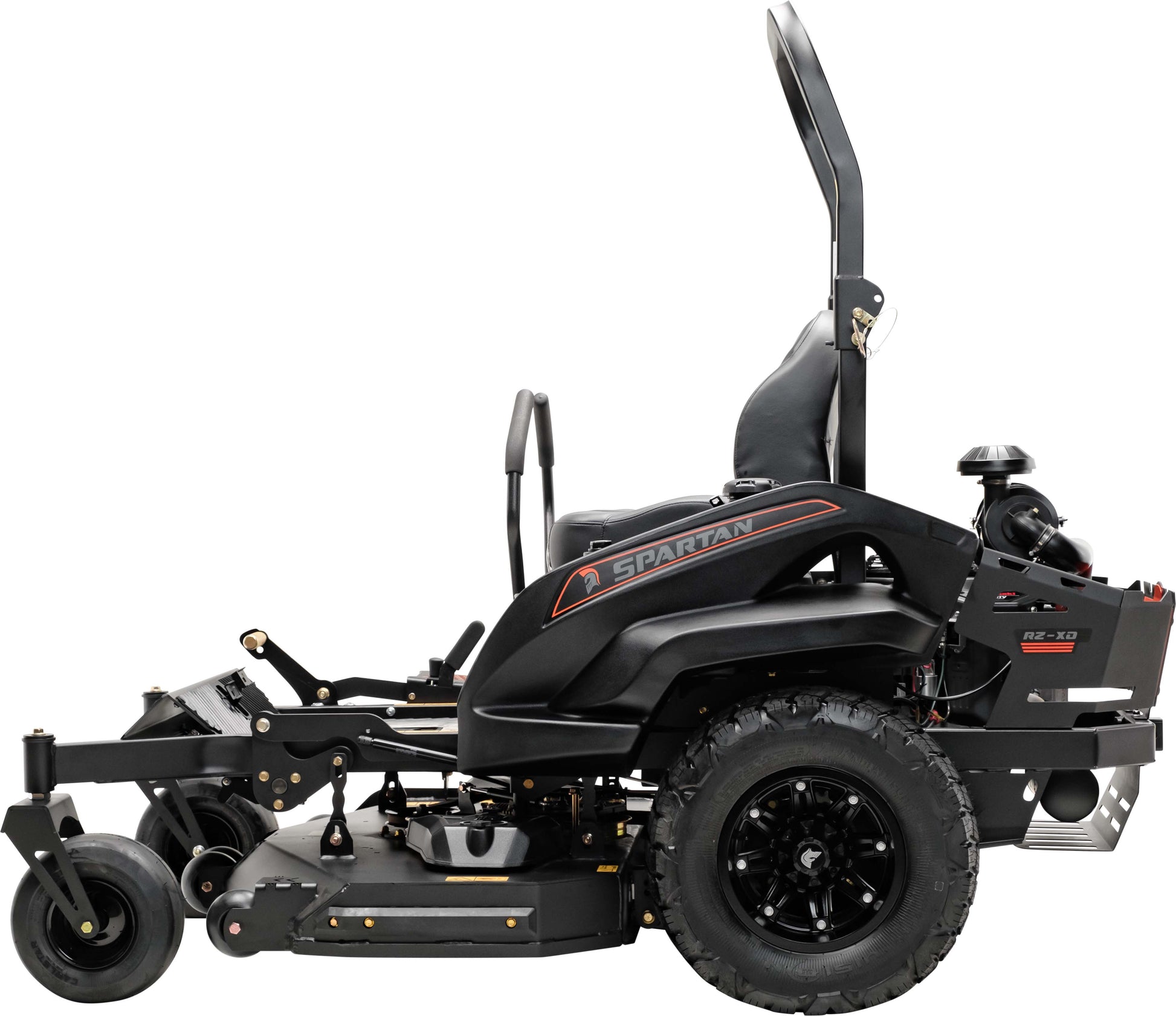

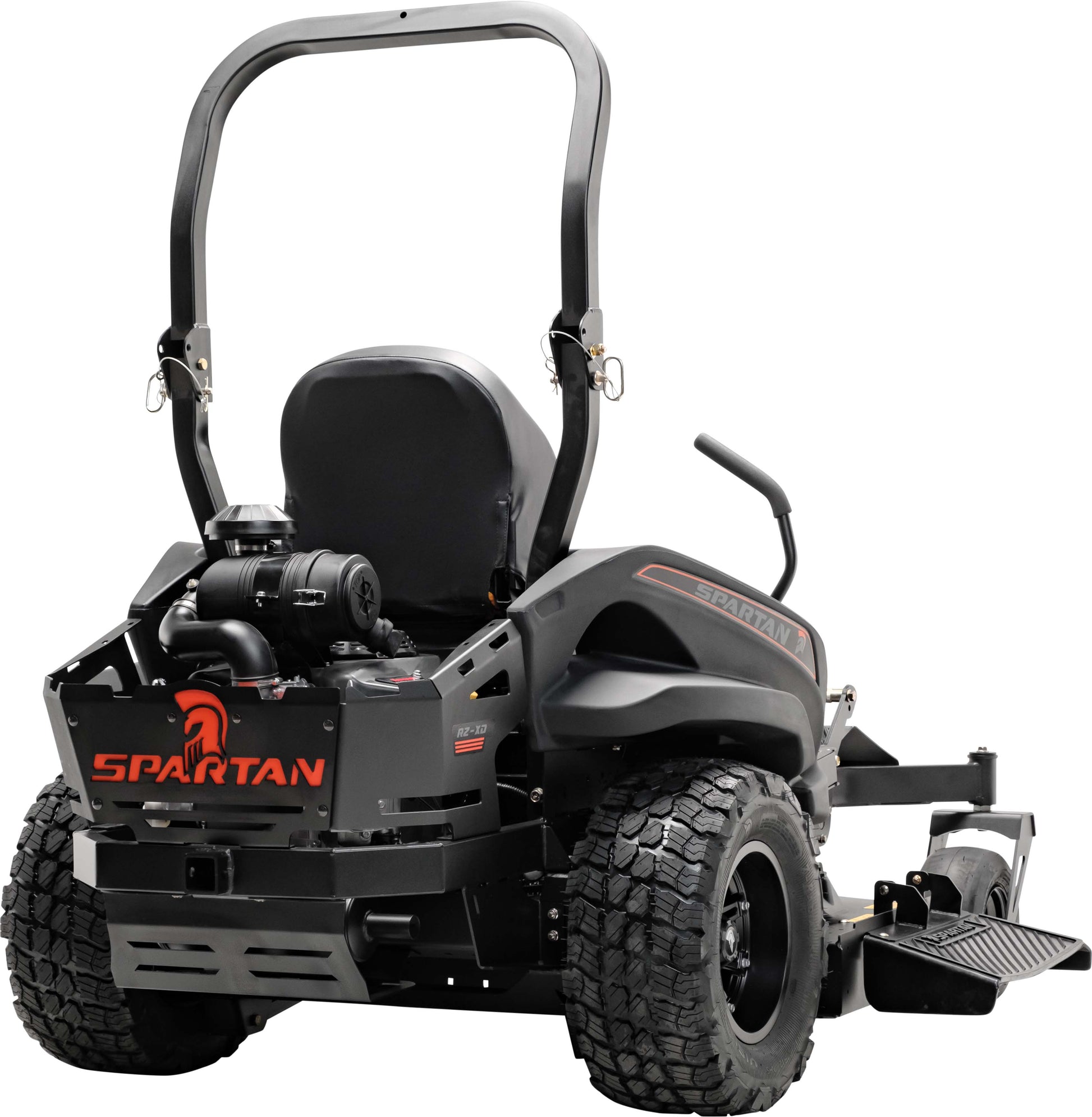

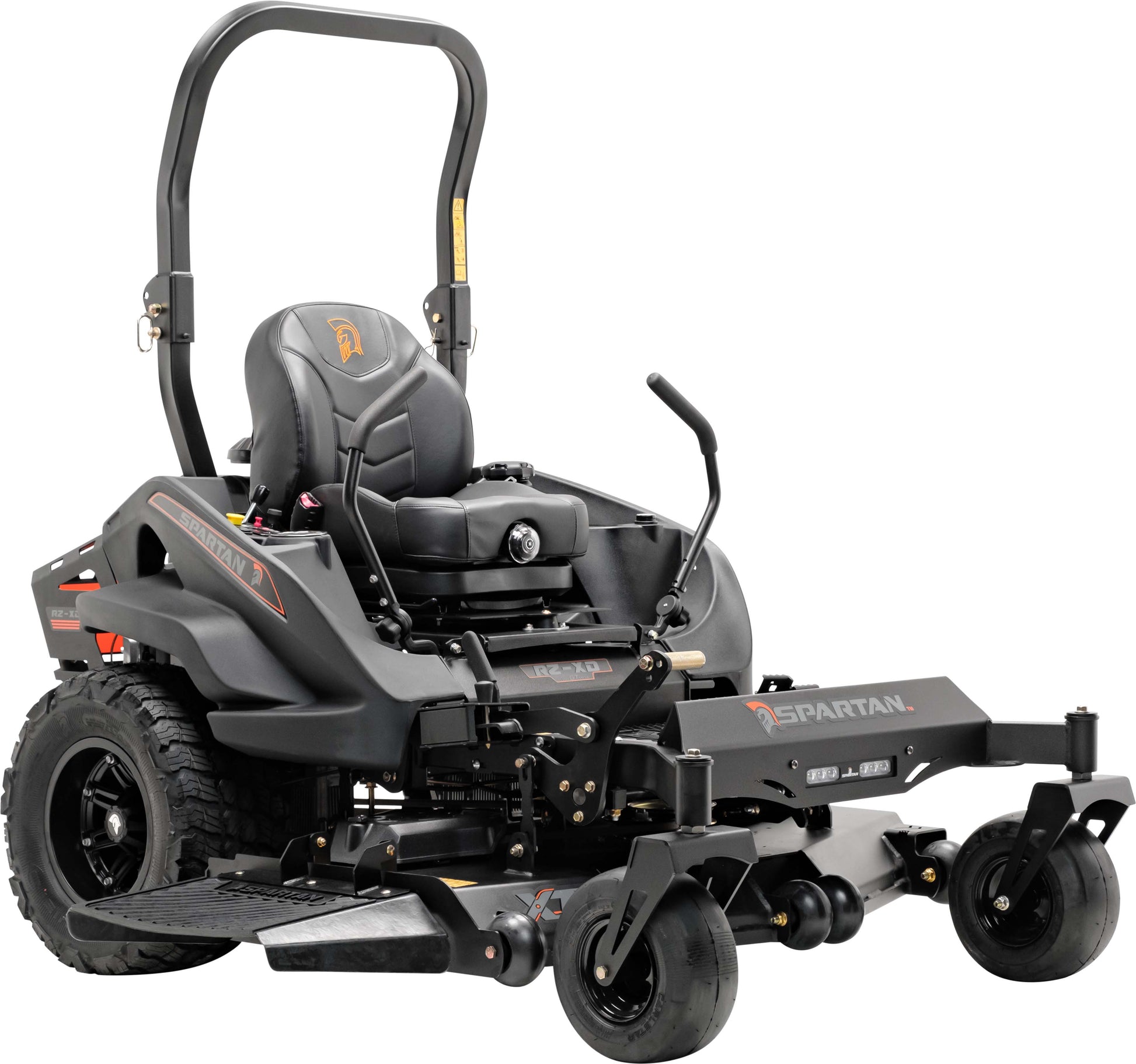

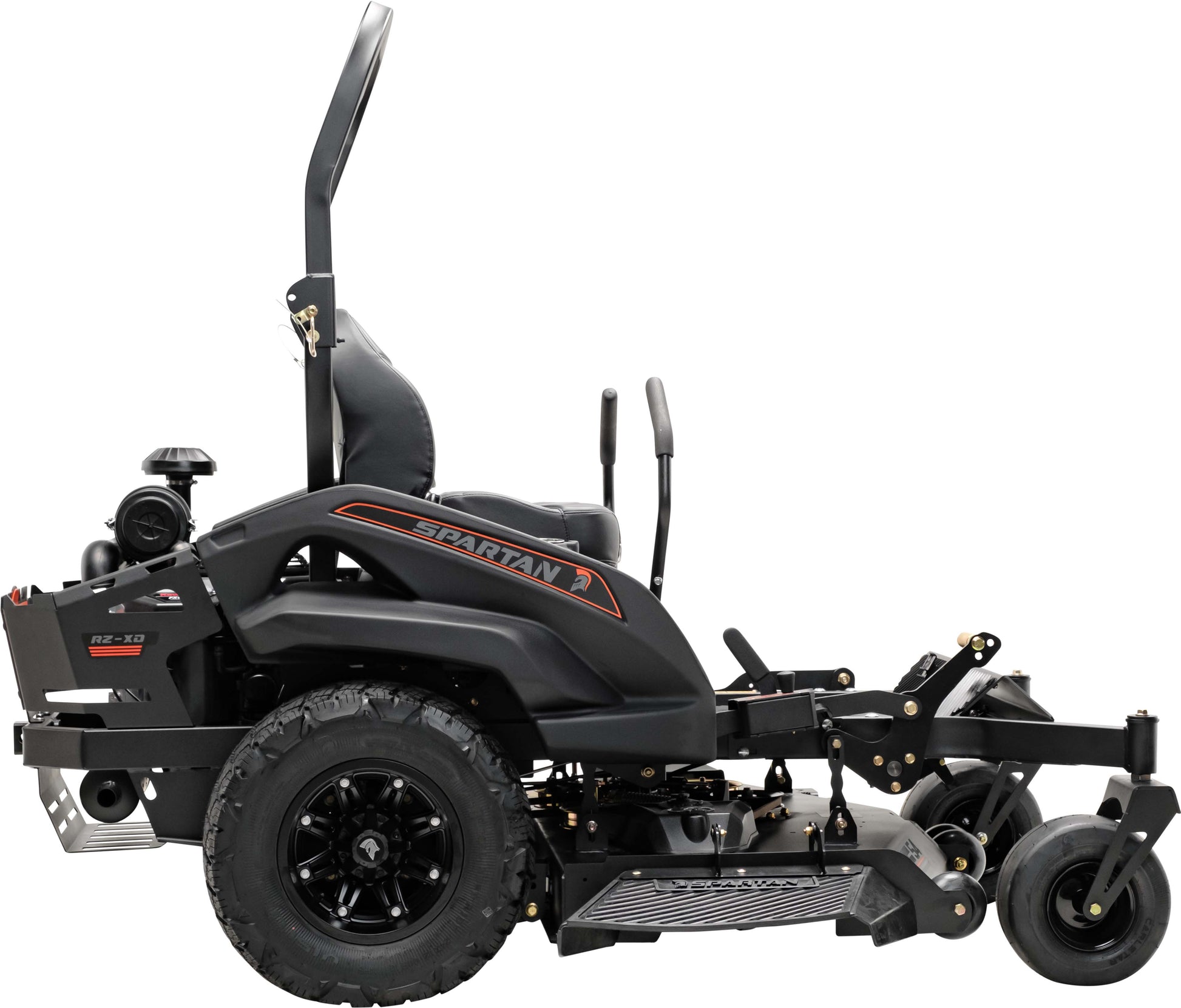

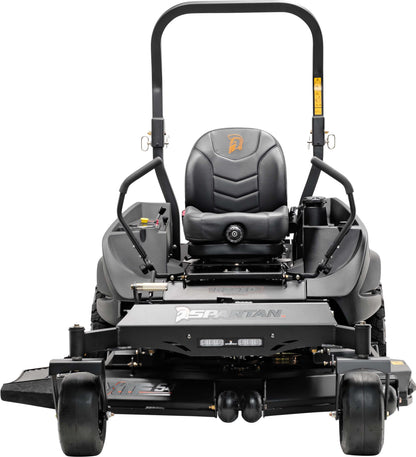

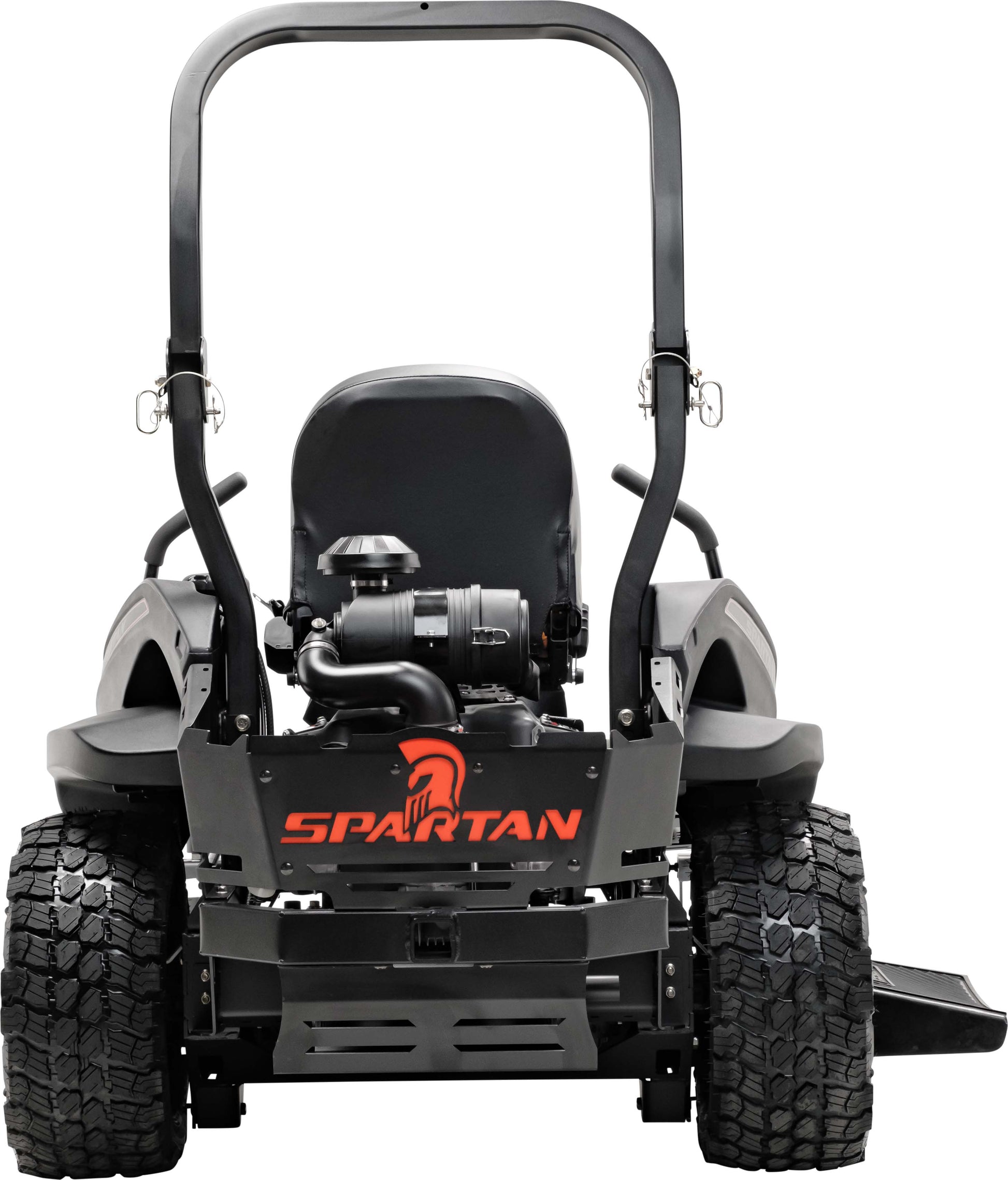

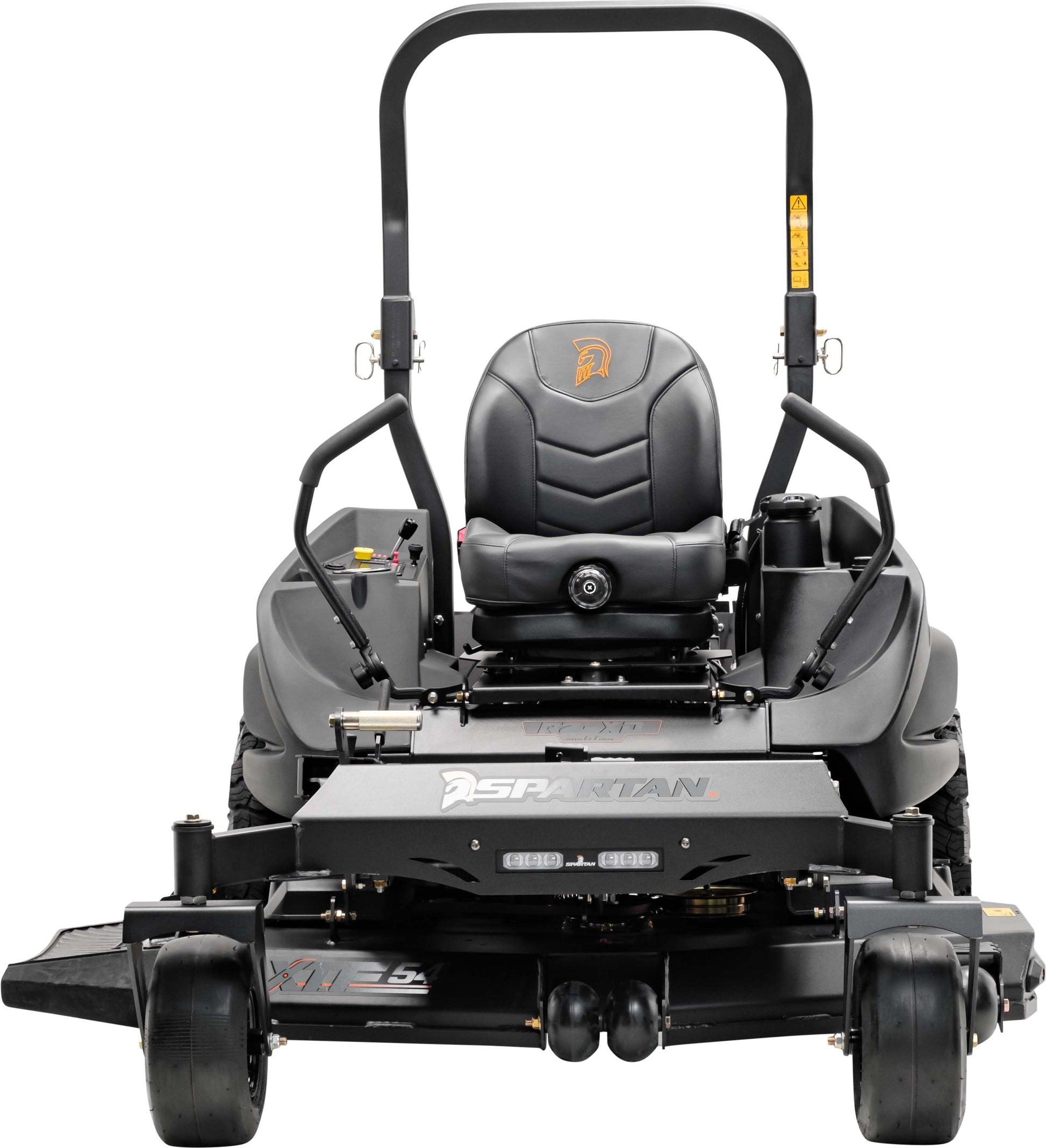

Spartan® RZ-XD Blackout - Blacked Out Look, All Out Power
Key Features
1 1/2" x 3" Tubular Welded Frame
Rugged, heavy-duty welded frame for superior strength and stability.
Multi-Function Keypad with Soft Start
Easy-to-use multi-function keypad with soft start for smooth, controlled operation.
Full Beam LED Light Bar
Powerful full beam LED light bar for excellent visibility in dark or low-light conditions.
Bias Ply Front Tires
Reliable bias ply front tires designed for a stable and smooth ride on all terrains.
Magnetic Pin Height Adjustment
Quick and precise deck height adjustments with a magnetic pin system.
Adjustable Steering Arms
Customizable steering arms for enhanced comfort and personalized control.
Folding ROPS
Foldable Roll-Over Protective Structure (ROPS) for safety and compact storage.
GT Trac Stabilization
GT Trac Stabilization system for superior traction and smoother operation on uneven surfaces.
18,500 FPM Blade Tip Speed
High 18,500 FPM blade tip speed for fast, efficient, and clean cutting performance.
Protective Side Deck Trim
Durable side deck trim designed to protect against debris and wear.
Upgraded Spindles
Reinforced spindles for improved durability and precision cutting.
Upgraded Spindles
Heavy-duty 7-gauge XTF deck for superior strength and professional-grade performance.
Foot Operated Parking Brake
Convenient foot-operated parking brake for hands-free engagement and safety.
12V Outlet
Built-in 12V outlet to charge devices or power accessories on the go.
Large Cup Holder
Spacious cup holder to keep drinks secure and within easy reach while mowing.
Phone Holder in Console
Handy phone holder integrated into the console for easy access and storage.
Storage Tray in Console
Practical storage tray for small tools, accessories, or personal items.
2" Receiver Hitch
Heavy-duty 2-inch receiver hitch for towing attachments and accessories.
Foot Operated Shock Assisted Deck Lift
Foot-operated deck lift with shock assistance for smooth, easy adjustments.
Anti-Vibration Floor Mat
Anti-vibration floor mat to reduce fatigue and enhance comfort during operation.
Ultra Premium Dymetrol ® Adjustable 3" Travel Seat
Ultra-comfortable Dymetrol® seat with 3 inches of adjustable travel for a personalized ride.
Special Blackout Seat Design
Stylish blackout seat design for a sleek, modern look and added durability.
Model Comparison
| Model | Deck Size | Engine | Horsepower | Transmission | Top Speed | Fuel Capacity |
|---|---|---|---|---|---|---|
| RZ-XD | 48" / 54" / 60" | Kawasaki FX730V 24 HP | 24 HP | Parker HTE Transaxles - 10cc Drive Motors | 9 MPH | 9.5 gal |
| RZ-XD Blackout | 54" / 60" | Kawasaki FX801V 25.5 HP | 25.5 HP | Parker HTE Transaxles - 10cc Drive Motors | 9 MPH | 9.5 gal |
| RT-HD | 54" / 61" / 72" | Vanguard EFI 993cc 37 HP / Kawasaki Vanguard EFI 993cc 37 HP / Kawasaki FX1000 35 HP | 35 / 37 HP | Parker HTJ Transaxles - 12cc Drive Motors | 11 MPH | 9.5 gal |
| SRT-XDe | 54" / 61" | Kawasaki FX801V 25.5 HP | 25.5 HP | Parker HTJ Transaxles - 12cc Drive Motors | 11 MPH | 9.5 gal |
| SRT-XD | 61" / 72" | Kawasaki FX1000 EFI 38.5 HP / Vanguard EFI 994cc w/OG 40 HP | 38.5 / 40 HP | Parker HTG Transaxles - 16cc Drive Motors | 13 MPH | 9.5 gal |
| KGZ-XD | 61" / 72" | Vanguard EFI 994cc w/OG 40 HP | 40 HP | Parker HTG Transaxles - 16cc Drive Motors | 15 MPH | 17 gal |
Available Accessories (Sold Separately)
No available accessories data found.
Offers and Financing
Best Rates for Qualified Buyers
Designed for top-tier credit customers who want the lowest rates on mowers and outdoor power equipment. Personal and commercial financing available with no early payoff penalties.
Prequalify
Fast Approval. Flexible Credit.
A strong fit for customers rebuilding or strengthening credit. Personal and commercial equipment loans with fast approvals and no prepayment penalties.
Prequalify
Equipment Without the Wait
Fast, simple approvals for entrepreneurs needing equipment quickly. Covers new and used outdoor power equipment with instant decisions up to $25,000.
Prequalify
Flexible Payments Made Simple
Ideal for mid to top-tier credit customers who want payment flexibility. Revolving credit makes it easy to finance mowers, handheld equipment, and smaller purchases.
View Details
Real Solutions for Real Credit
A strong option when traditional financing says no. Same-day approvals available for new and used mowers and equipment.
View Details
SPARTAN - Spring Mower Sales Event
Spring Mower Sales Event valid from April 1 – June 30, 2026. Credits are issued on qualified retail sales during the promotional period.
Learn MoreSpecification Highlights
Engine
Engine Name: 54" Kawasaki FX801V 25.5 HP, 60" Kawasaki FX801V 25.5 HP
Horsepower: 25.5 HP
Fuel Capacity: 9.5 Gallons
Drive Line
Hydraulic Drive: Parker HTE Transaxles - 10cc Drive Motors
Hydraulic Drive Torque: Continuous - 262 ft-lb | Max Torque - 406 ft-lb
Hydraulic Drive Maintenance: 1,000 Hours Between Oil Change
Front Tires: 13" Bias Ply
Drive Tires: 24x12-12 Radials
Wheel Type: Aluminum
Speed (F/R): Forward - Up to 9 mph | Reverse - Up to 5 mph
Features
Acreage: 2+
Seat: Blackout Dymetrol Seat with 360 Degree Floating Seat Platform
Steering Levers: Adjustable Up and Down
Control Panel LCD Display: Engine Hour Meter - Mower Deck Hour Meter - Tachometer - Low Level Warner Volt Meter - Time Between Oil Change Countdown - Fault Codes
Control Panel LED Warning Indicators: Parking Brake Set - Drive Levers - Operator Present - PTO - Low/Hi Battery Volts - Low Oil PSI
Ignition: Keyless, Personal Code Activated
Auxiliary Power: 12v Outlet
Storage: Phone Holder, Cup Holder, and Deep Storage Tray
Hitch: 2" Rear Receiver
LED Light Bar: Full Beam
Cutting Deck
Deck Size: 54"
Deck Depth: 5" Deep, Reinforced 7 Gauge Full-Floating Deck
Deck Lift: Foot Operated with Shock Assist
Deck Adjustment: Magnetic Pin Height Adjustment
Cut Height: 1.5" to 4.75" with 14 Cut Heights
Blade Spindles: Cast Aluminum, No Maintenance/Sealed Bearings
Parking Brake: Foot Operated
Frame: 1.5" by 3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame
Measurements
Width: 54” Deck - 55.5” Wide
Weight: 907 - 1,095 lb
Length: 84"
Height: 75" with ROPS Up | 54" with Folding ROPS Down
Warranty
Engine Warranty: 3 Year
Leading Deck Edge Warranty: 3 Year
Hydraulic Drive Warranty: 3 Year / 400 Hour
Control Panel Warranty: 3 Year
Product Warranty: 3 Year / 400 Hour
Battery Warranty: 6 Months
Belt Warranty: 90 Days
