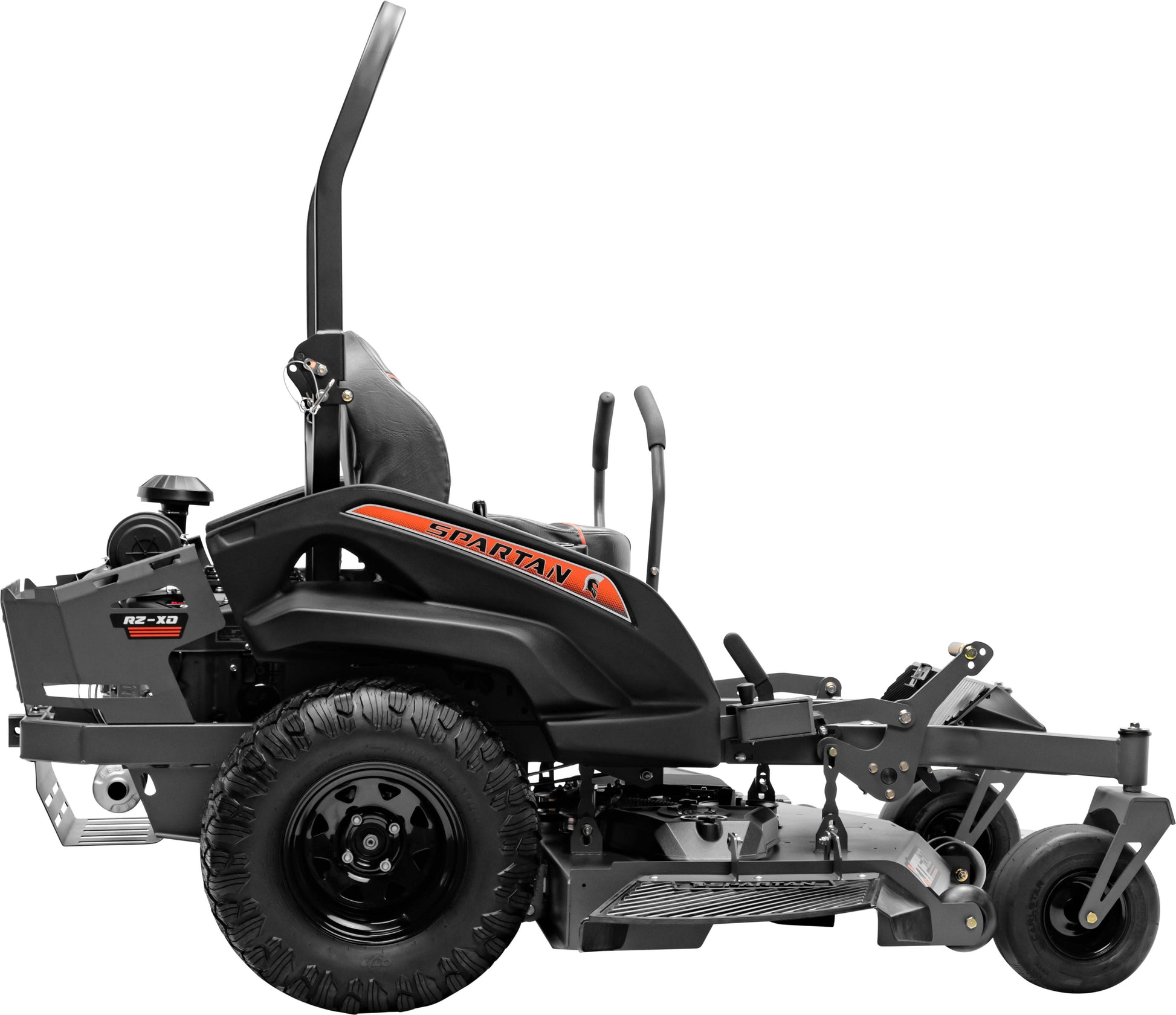

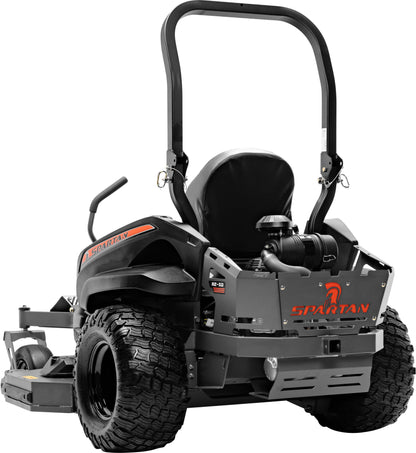

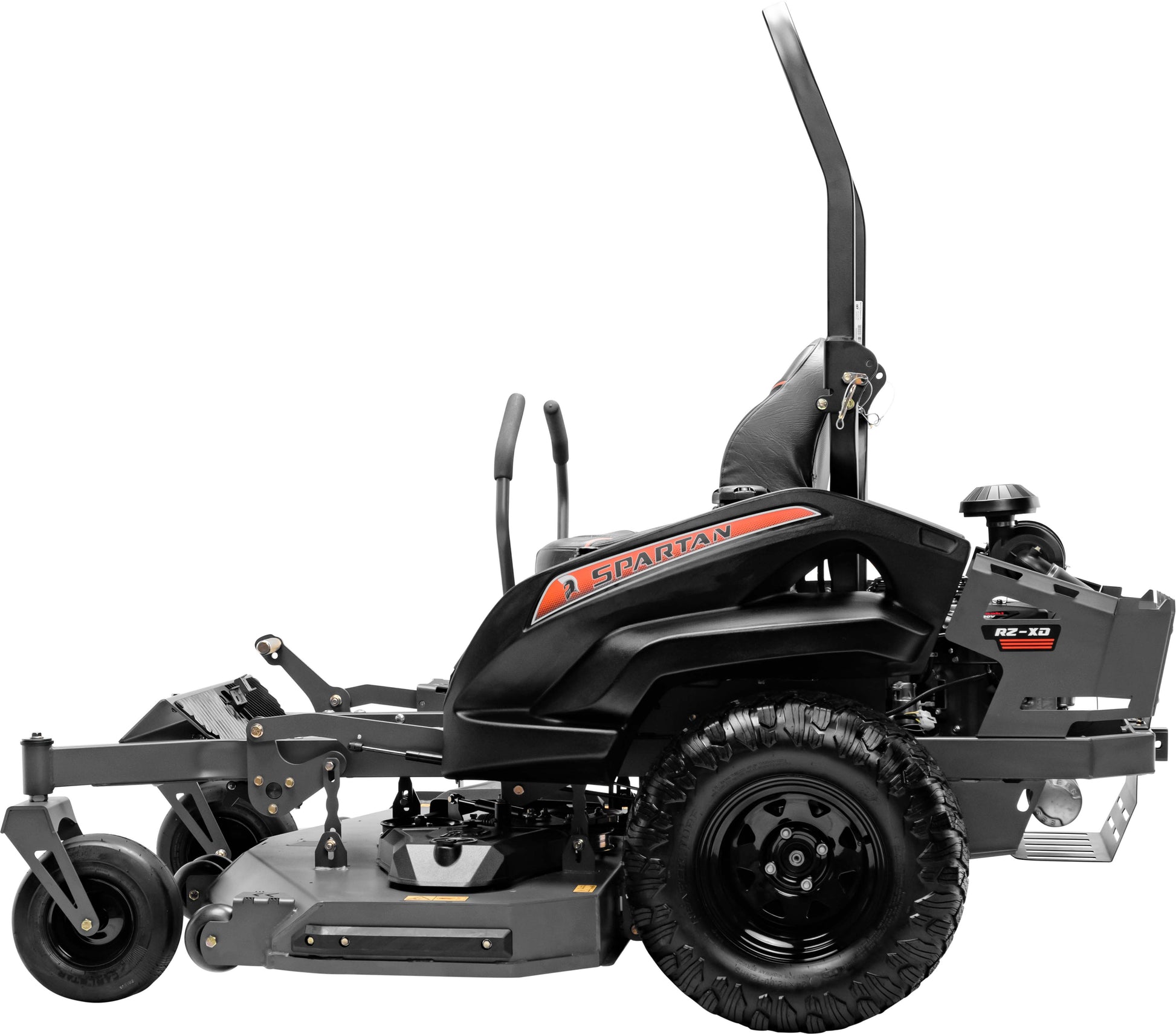

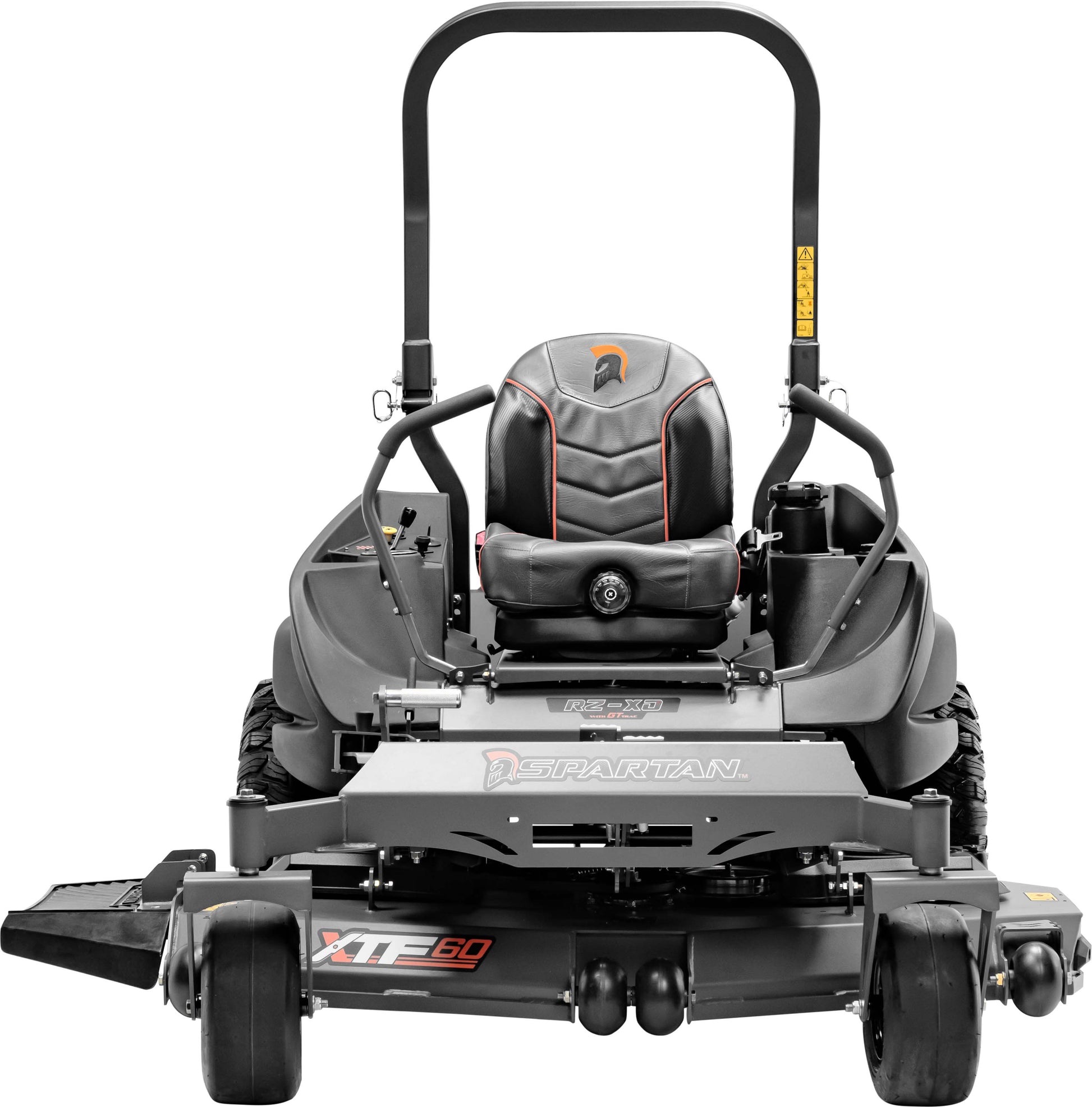

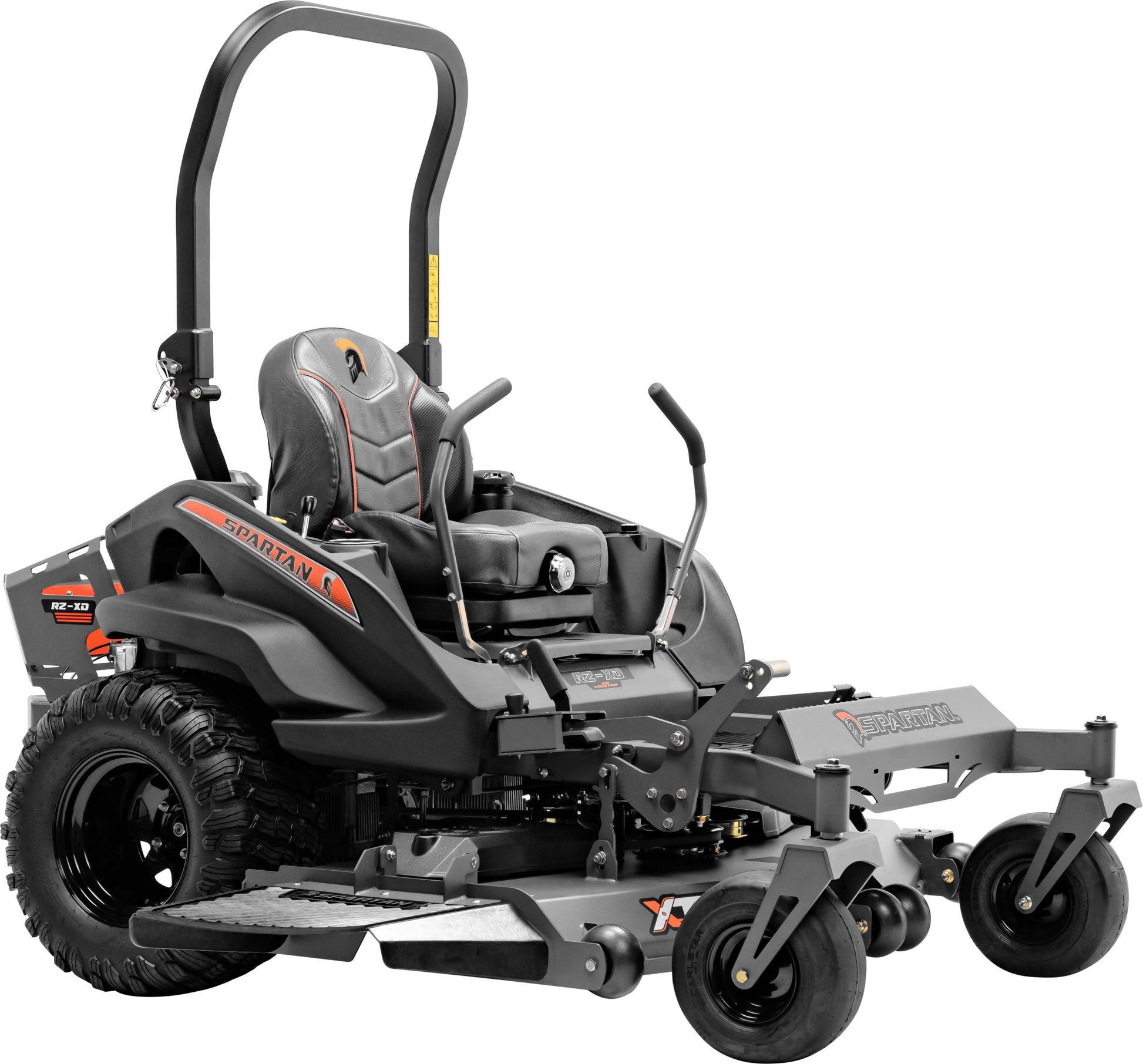

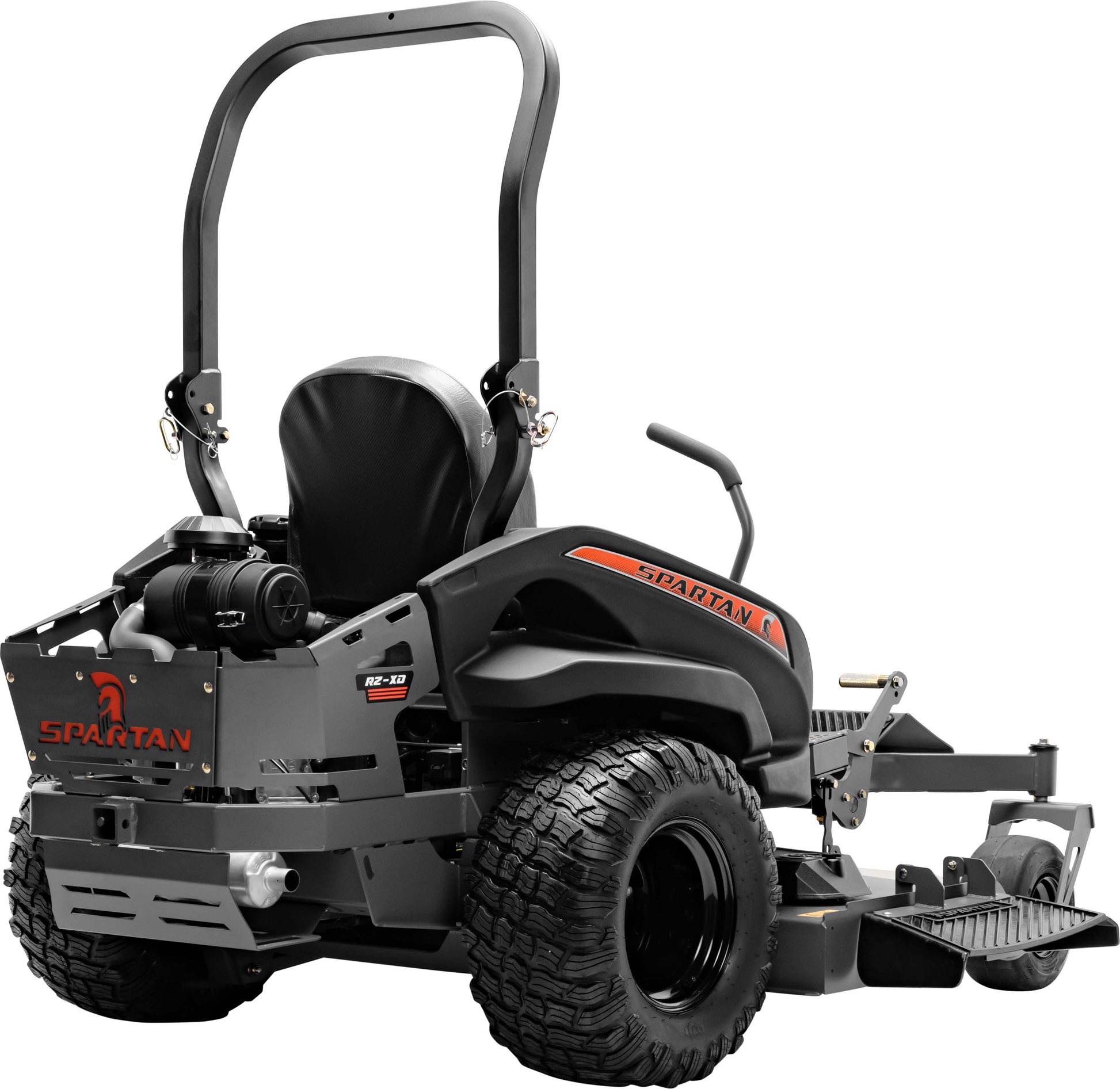

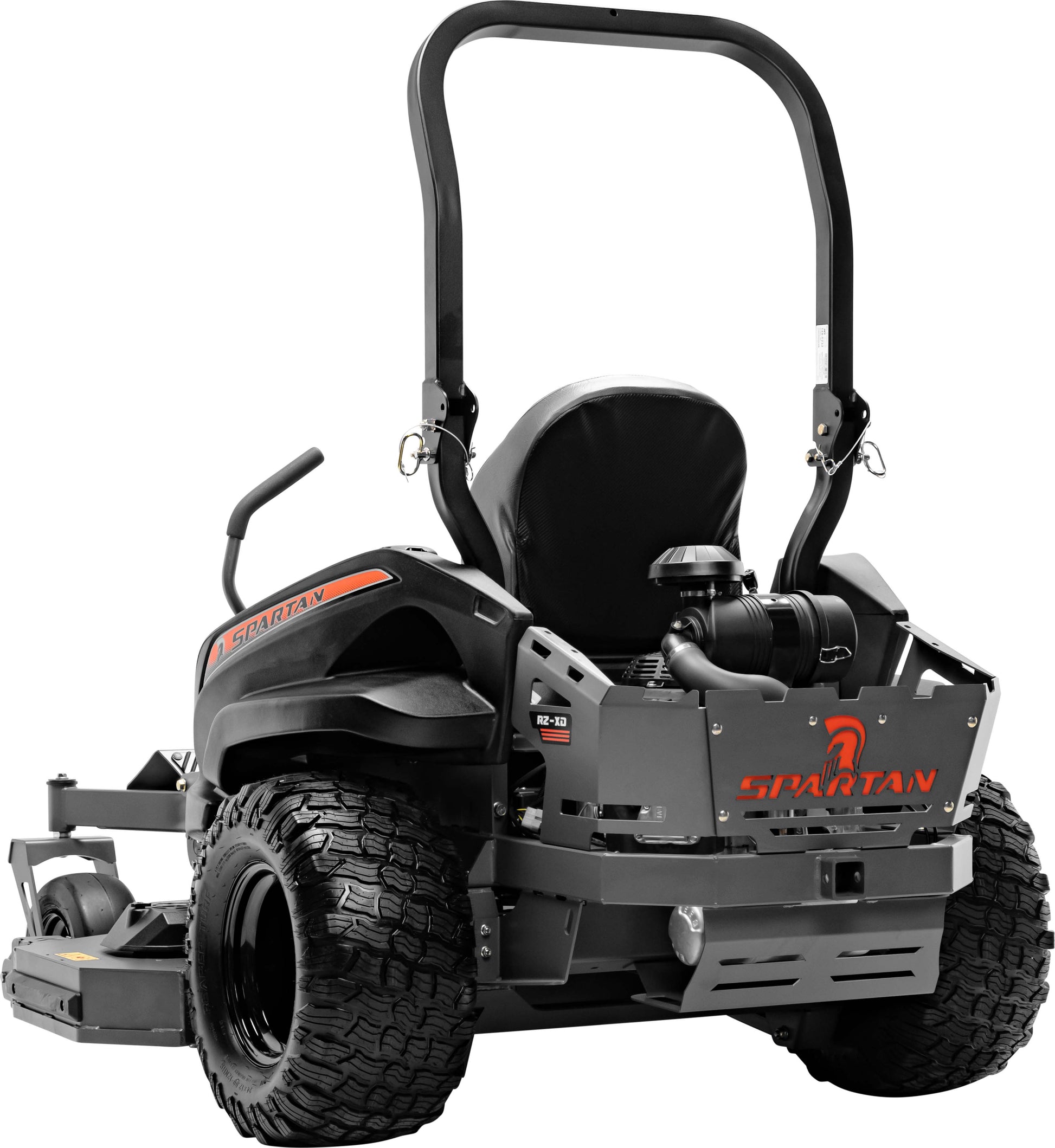

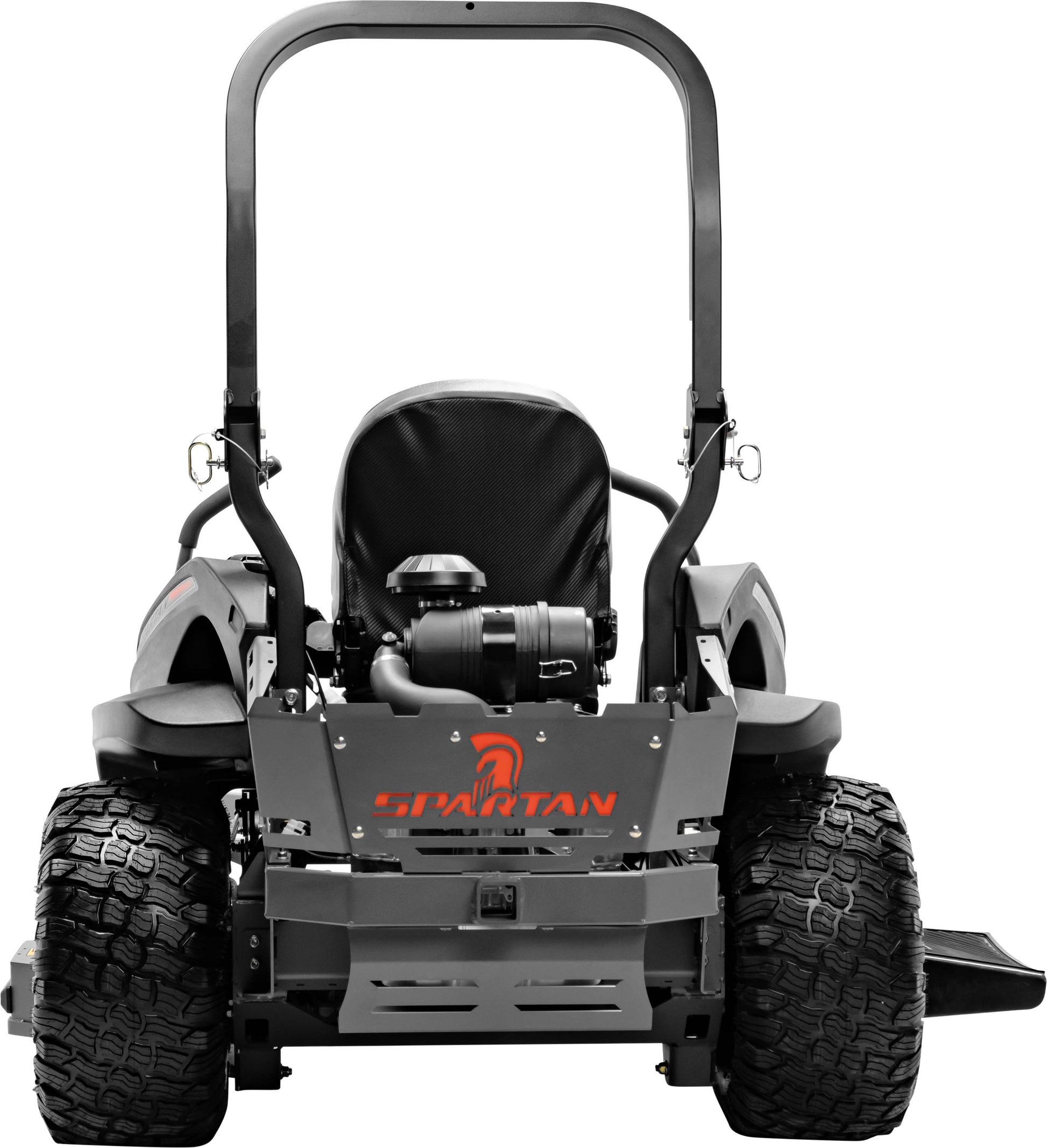

Spartan® RZ-XD - Extreme Duty Build, Residential Simplicity
Key Features
1 1/2" x 3" Tubular Welded Frame
Heavy-duty welded frame for maximum strength and durability.
Full Beam LED Light Bar
Bright, full beam LED light bar for optimal visibility in low-light conditions.
Bias Ply Front Tires
Durable bias ply front tires for a stable and smooth ride across various terrains.
Magnetic Pin Height Adjustment
Quick and easy cutting height adjustments with a secure magnetic pin system.
Folding ROPS
Convenient folding Roll-Over Protective Structure (ROPS) for safety and easy storage.
GT Trac Stabilization
GT Trac Stabilization technology for superior traction on uneven surfaces.
18,500 FPM Blade Tip Speed
Fast 18,500 FPM blade tip speed for an efficient, clean cut.
Protective Side Deck Trim
Tough side deck trim for added protection against wear and debris.
Upgraded Spindles
Reinforced spindles for greater durability and precision in cutting.
7-gauge XTF Deck
Sturdy 7-gauge XTF deck for long-lasting performance and a professional-quality cut.

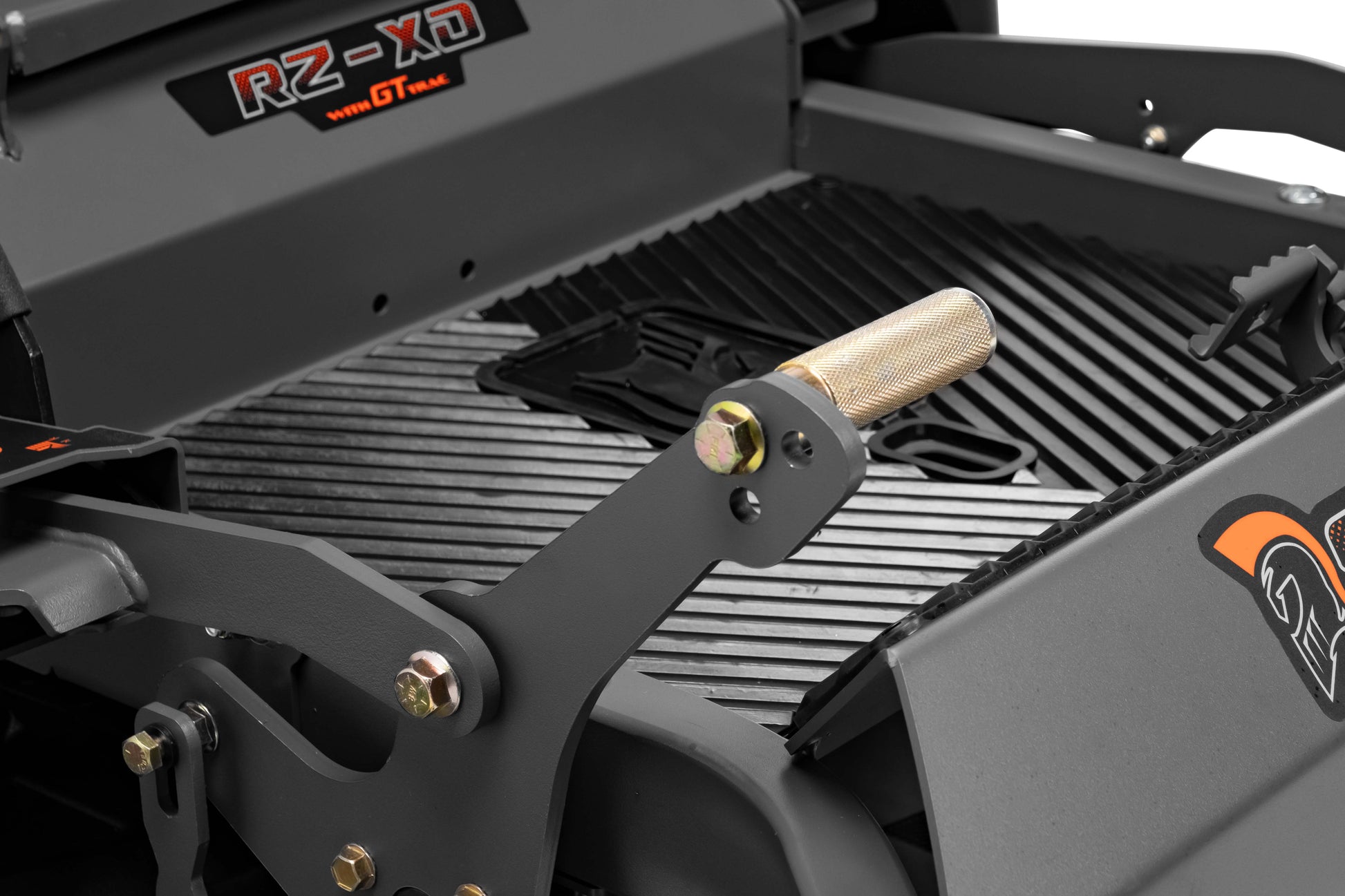

Foot Operated Parking Brake
Foot-operated parking brake for easy, hands-free engagement.
12V Outlet
Convenient 12V outlet to charge devices or power accessories while mowing.
Large Cup Holder
Spacious cup holder to keep beverages secure and within reach during operation.
Phone Holder in Console
Built-in phone holder for easy access and secure storage while working.
Storage Tray in Console
Practical console storage tray for tools and personal items.
2" Receiver Hitch
Heavy-duty 2-inch receiver hitch for towing accessories and attachments.
Foot Operated Shock Assisted Deck Lift
Easy-to-use foot-operated deck lift with shock assistance for smooth adjustments.
Anti-Vibration Floor Mat
Anti-vibration floor mat for added comfort and reduced operator fatigue.
Ultra Premium Dymetrol ® Adjustable 3" Travel Seat
Ultra-premium Dymetrol® seat with 3" adjustable travel for maximum comfort and support.
Model Comparison
| Model | Deck Size | Engine | Horsepower | Transmission | Top Speed | Fuel Capacity |
|---|---|---|---|---|---|---|
| RZ-XD | 48" / 54" / 60" | Kawasaki FX730V 24 HP | 24 HP | Parker HTE Transaxles - 10cc Drive Motors | 9 MPH | 9.5 gal |
| RZ-XD Blackout | 54" / 60" | Kawasaki FX801V 25.5 HP | 25.5 HP | Parker HTE Transaxles - 10cc Drive Motors | 9 MPH | 9.5 gal |
| RT-HD | 54" / 61" / 72" | Vanguard EFI 993cc 37 HP / Kawasaki Vanguard EFI 993cc 37 HP / Kawasaki FX1000 35 HP | 35 / 37 HP | Parker HTJ Transaxles - 12cc Drive Motors | 11 MPH | 9.5 gal |
| SRT-XDe | 54" / 61" | Kawasaki FX801V 25.5 HP | 25.5 HP | Parker HTJ Transaxles - 12cc Drive Motors | 11 MPH | 9.5 gal |
| SRT-XD | 61" / 72" | Kawasaki FX1000 EFI 38.5 HP / Vanguard EFI 994cc w/OG 40 HP | 38.5 / 40 HP | Parker HTG Transaxles - 16cc Drive Motors | 13 MPH | 9.5 gal |
| KGZ-XD | 61" / 72" | Vanguard EFI 994cc w/OG 40 HP | 40 HP | Parker HTG Transaxles - 16cc Drive Motors | 15 MPH | 17 gal |
Available Accessories (Sold Separately)
No available accessories data found.
Offers and Financing
Best Rates for Qualified Buyers
Designed for top-tier credit customers who want the lowest rates on mowers and outdoor power equipment. Personal and commercial financing available with no early payoff penalties.
Prequalify
Fast Approval. Flexible Credit.
A strong fit for customers rebuilding or strengthening credit. Personal and commercial equipment loans with fast approvals and no prepayment penalties.
Prequalify
Equipment Without the Wait
Fast, simple approvals for entrepreneurs needing equipment quickly. Covers new and used outdoor power equipment with instant decisions up to $25,000.
Prequalify
Flexible Payments Made Simple
Ideal for mid to top-tier credit customers who want payment flexibility. Revolving credit makes it easy to finance mowers, handheld equipment, and smaller purchases.
View Details
Real Solutions for Real Credit
A strong option when traditional financing says no. Same-day approvals available for new and used mowers and equipment.
View Details
SPARTAN - Spring Mower Sales Event
Spring Mower Sales Event valid from April 1 – June 30, 2026. Credits are issued on qualified retail sales during the promotional period.
Learn MoreSpecification Highlights
Engine
Engine Name: 48" Kawasaki FX730V 24 HP, 54" Kawasaki FX730V 24 HP, 60" Kawasaki FX730V 24 HP
Horsepower: 24 HP
Fuel Capacity: 9.5 Gallons
Drive Line
Hydraulic Drive: Parker HTE Transaxles - 10cc Drive Motors
Hydraulic Drive Torque: Continuous - 262 ft-lb | Max Torque - 406 ft-lb
Hydraulic Drive Maintenance: 1,000 Hours Between Oil Change
Front Tires: 13" Bias Ply
Drive Tires: 24x12-12 Reapers
Wheel Type: Steel
Speed (F/R): Forward - Up to 9 mph | Reverse - Up to 5 mph
Features
Acreage: 2+

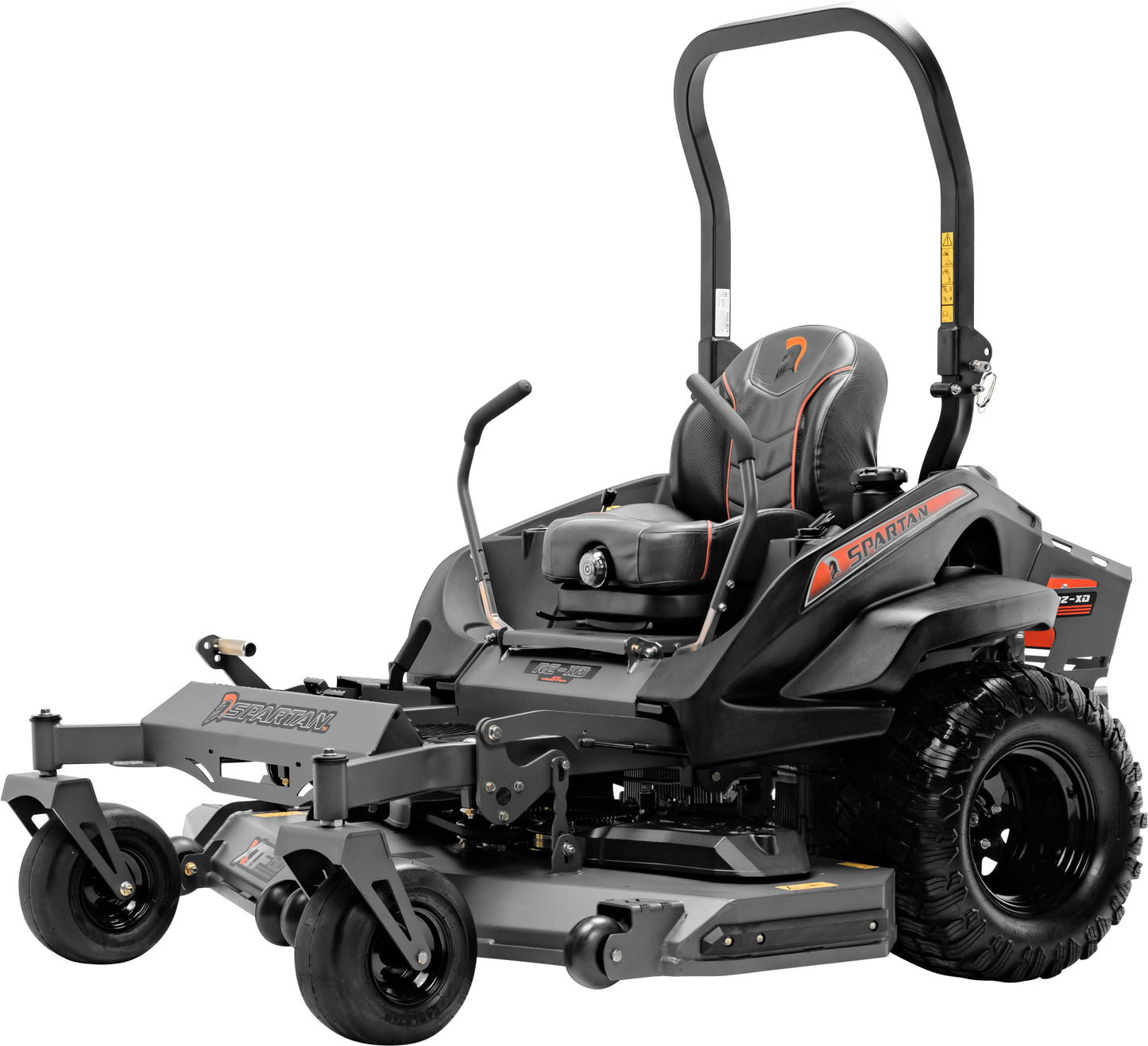

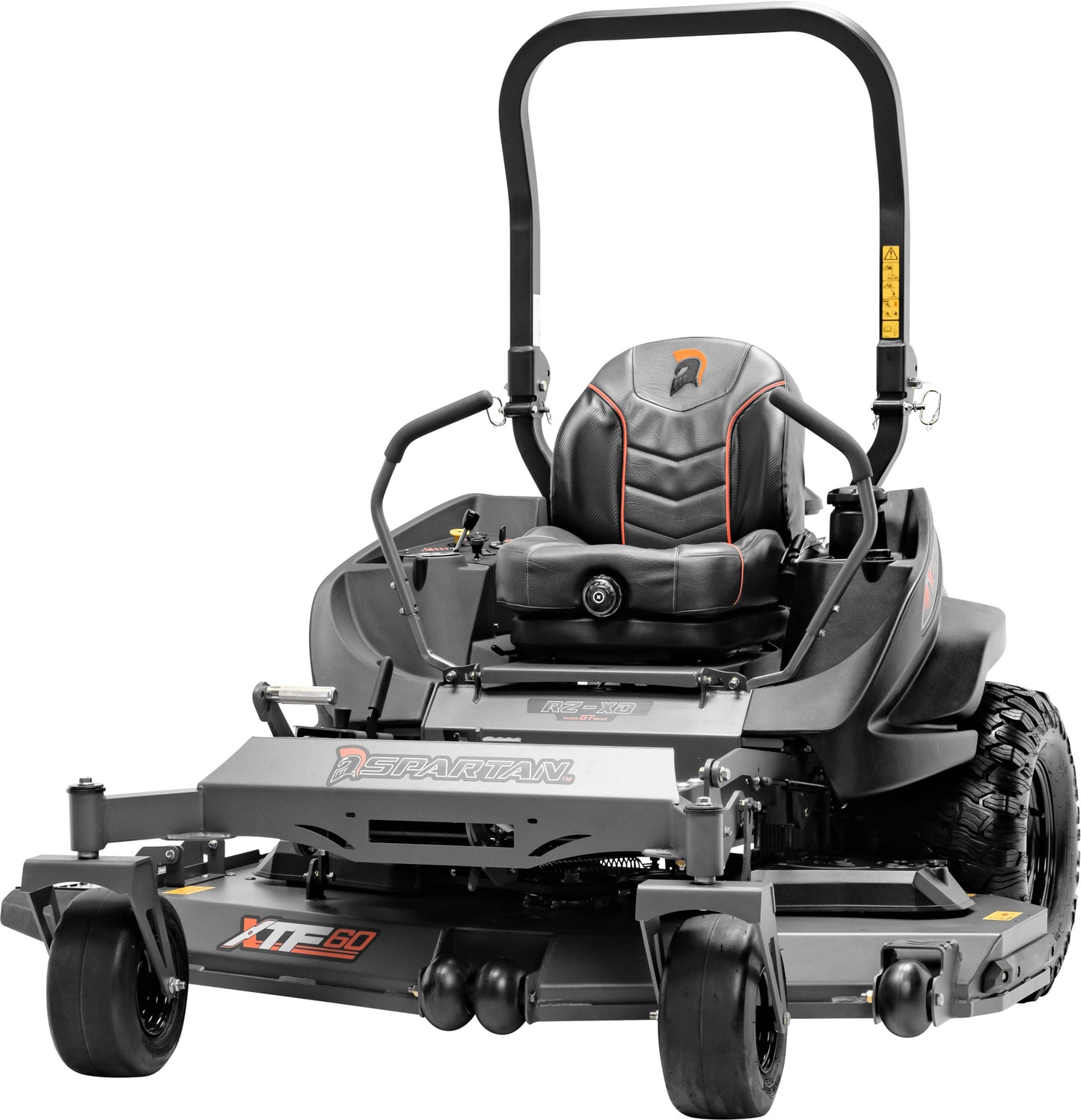

Seat: Dymetrol Seat with 360 Degree Floating Seat Platform
Steering Levers: Adjustable Up and Down
Control Panel LCD Display: Hour Meter - Engine Hours, Tachometer
Control Panel LED Warning Indicators: N/A
Ignition: Key Switch
Auxiliary Power: 12v Outlet
Storage: Phone Holder, Cup Holder, and Deep Storage Tray
Hitch: 2" Rear Receiver
LED Light Bar: Full Beam
Cutting Deck
Deck Size: 48"
Deck Depth: 5" Deep, Reinforced 7 Gauge Full-Floating Deck
Deck Lift: Foot Operated with Shock Assist
Deck Adjustment: Magnetic Pin Height Adjustment
Cut Height: 1.5" to 4.75" with 14 Cut Heights
Blade Spindles: Cast Aluminum, No Maintenance/Sealed Bearings
Parking Brake: Foot Operated
Frame: 1.5" by 3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame
Measurements
Width: 48” Deck - 49.5” Wide
Weight: 907 - 1,095 lb
Length: 84"
Height: 75" with ROPS Up | 54" with Folding ROPS Down
Warranty
Engine Warranty: 3 Year
Leading Deck Edge Warranty: 3 Year
Hydraulic Drive Warranty: 3 Year / 400 Hour
Control Panel Warranty: N/A
Product Warranty: 3 Year / 400 Hour
Battery Warranty: 6 Months
Belt Warranty: 90 Days
