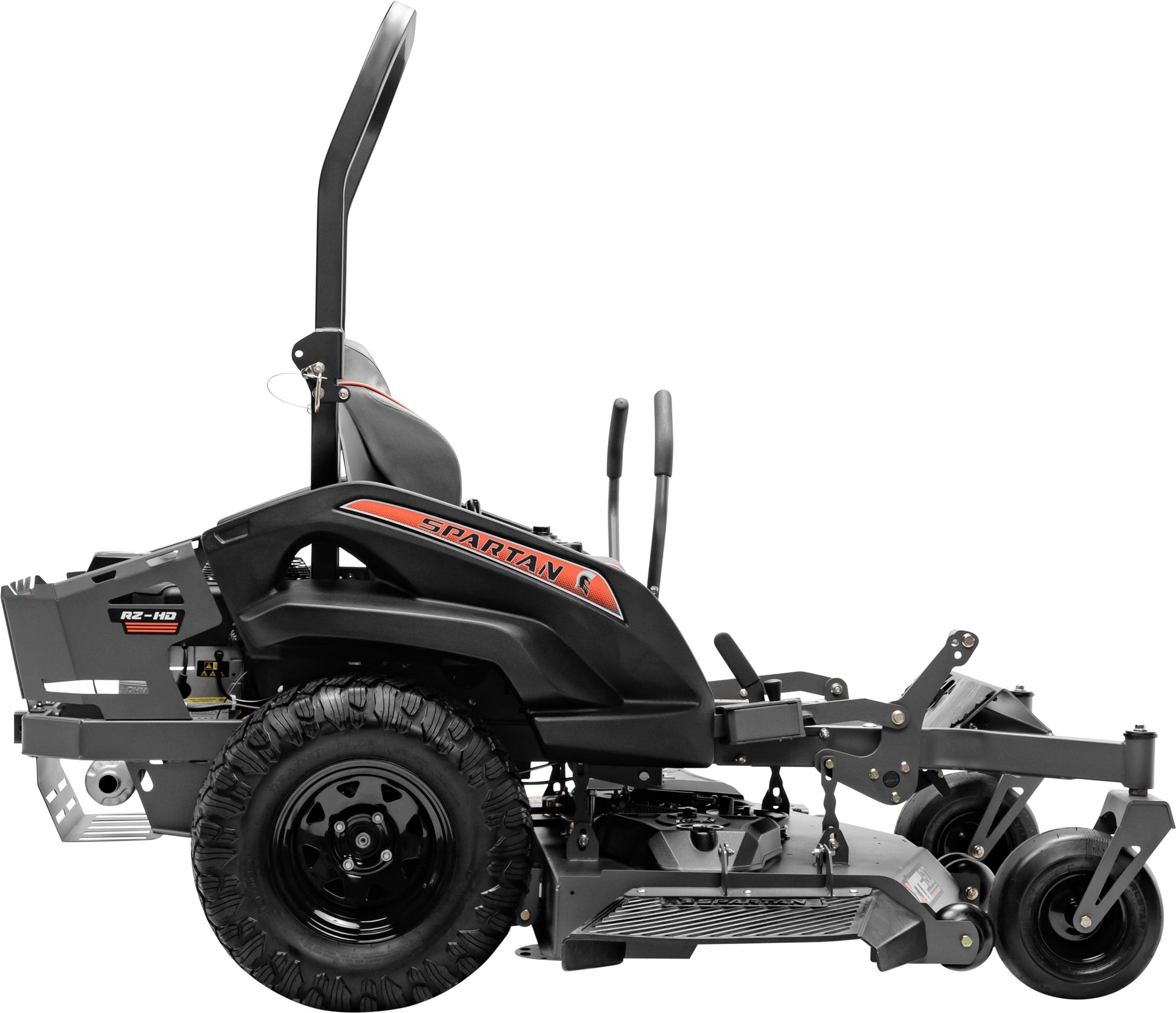

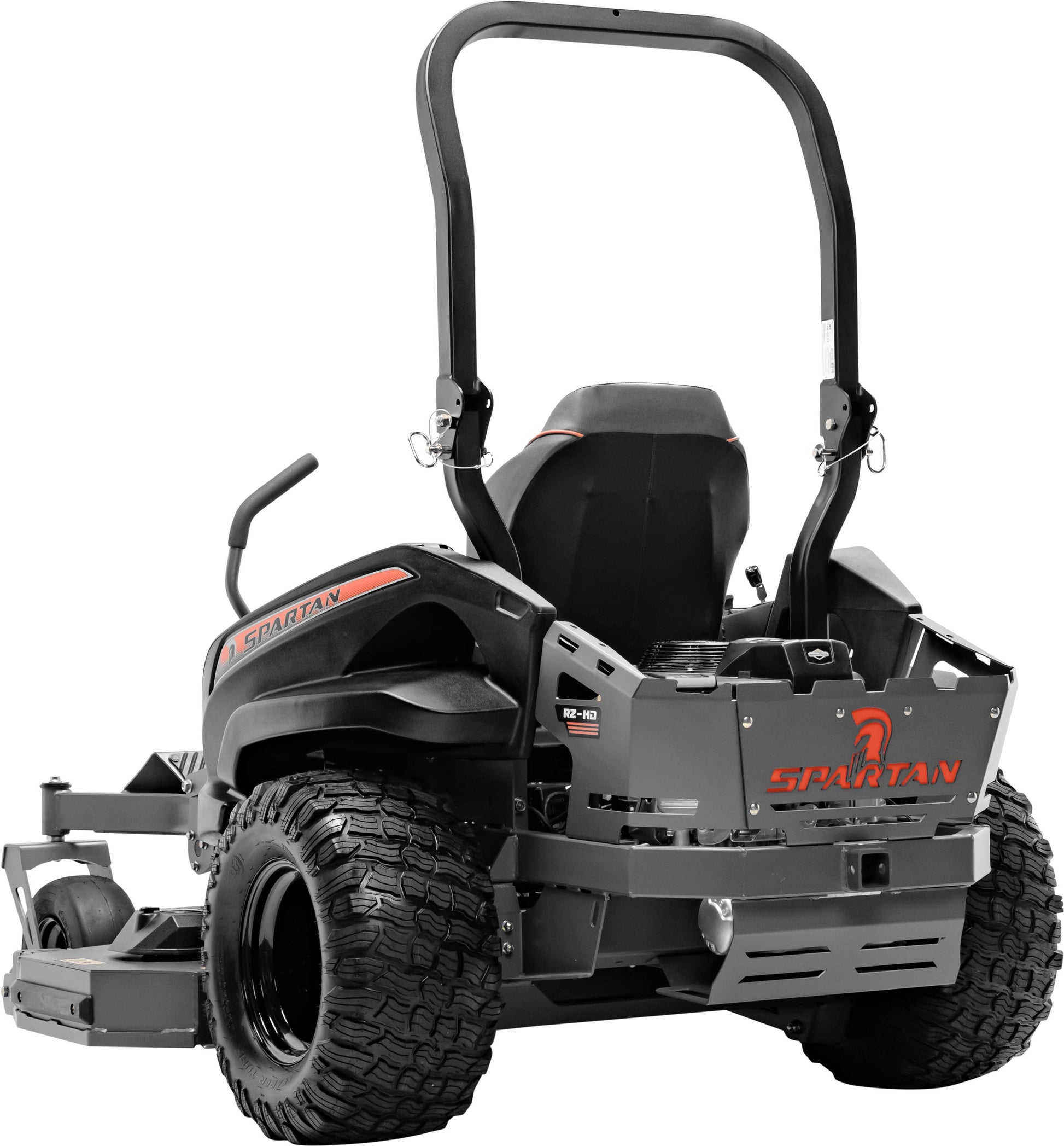

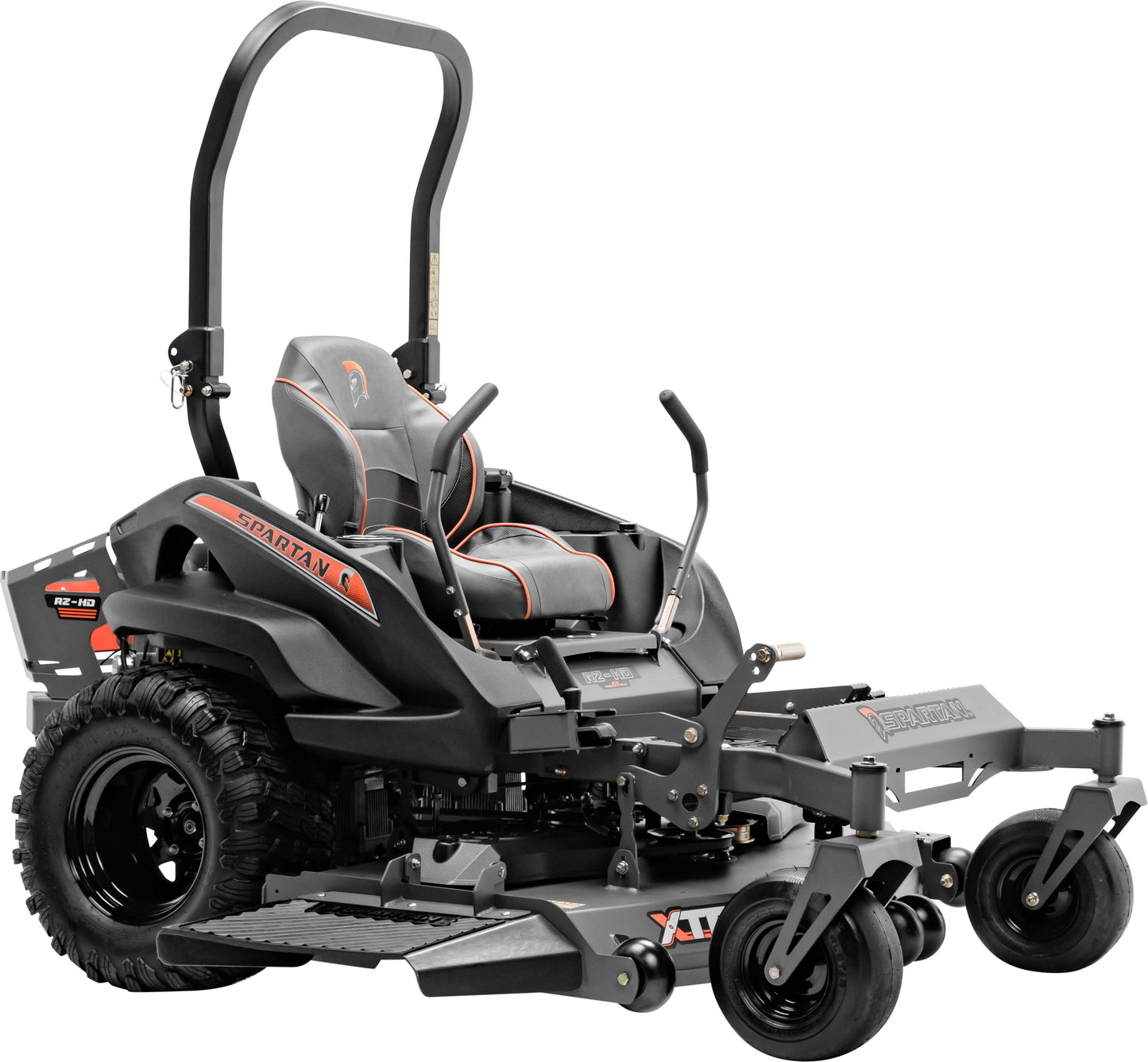

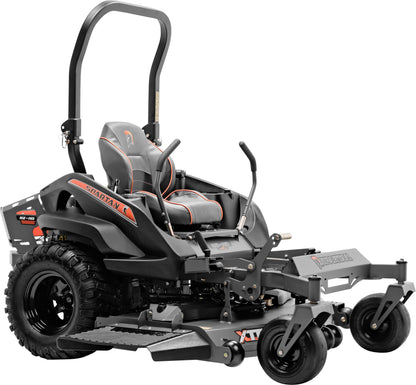

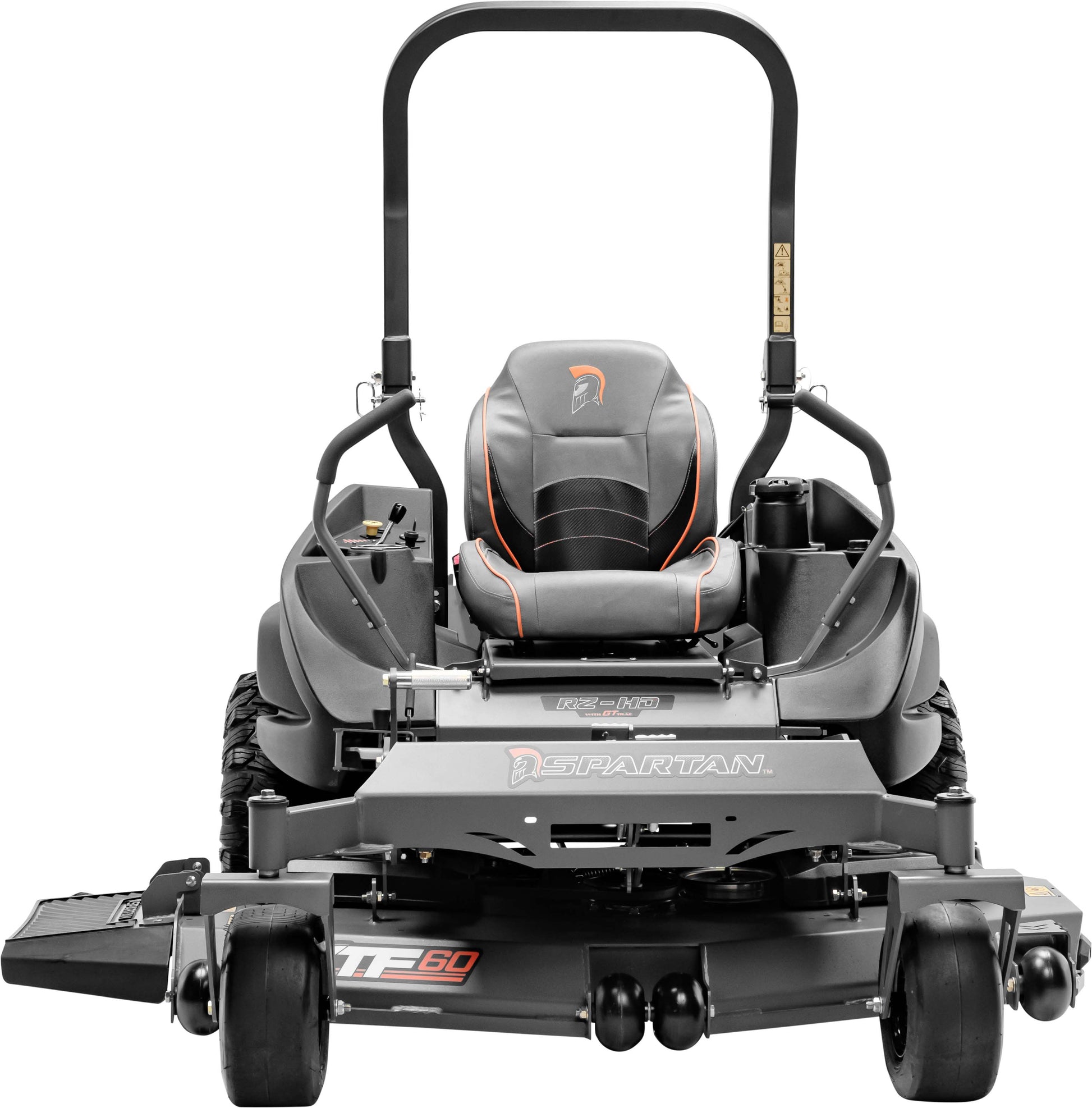

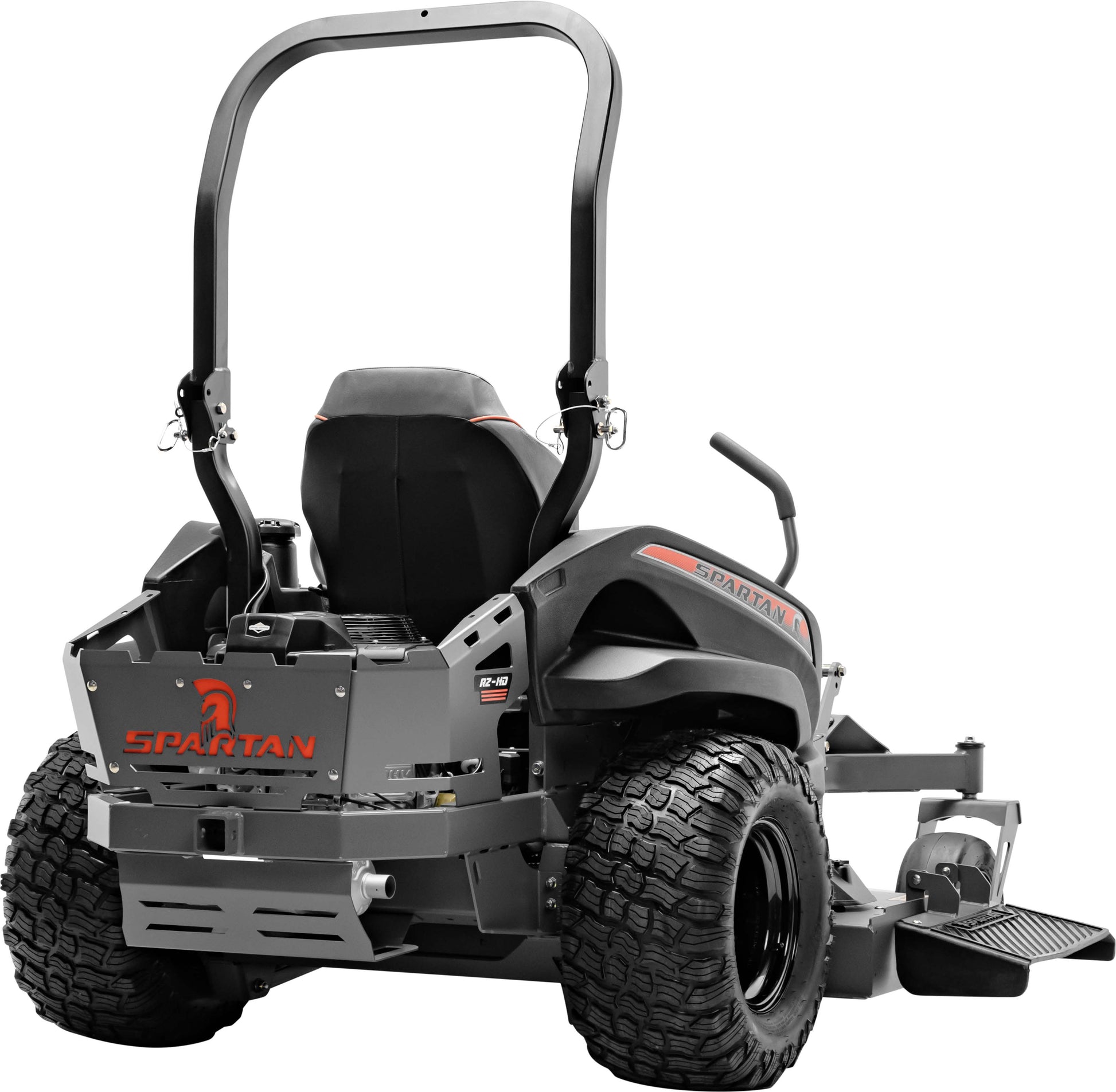

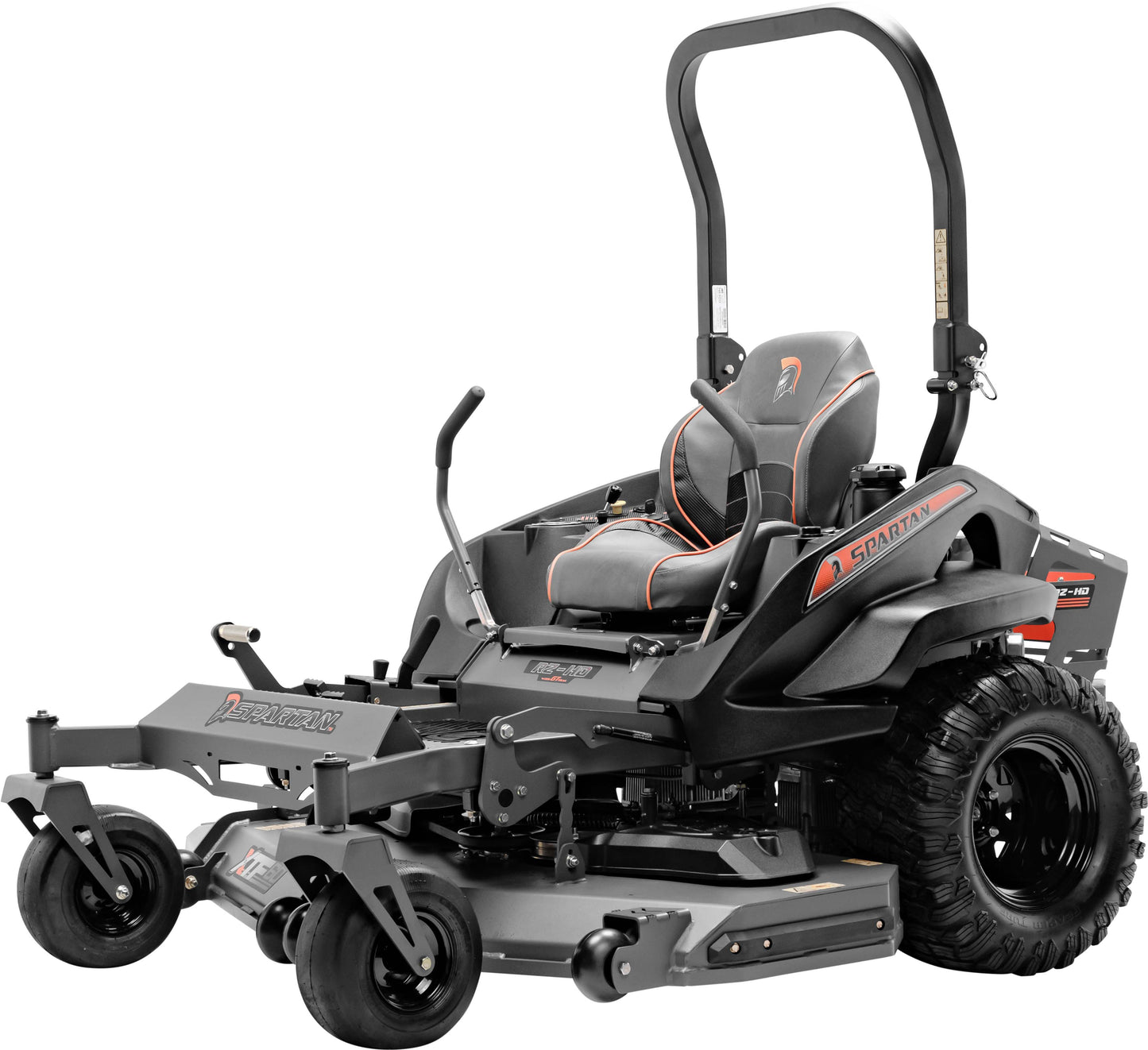

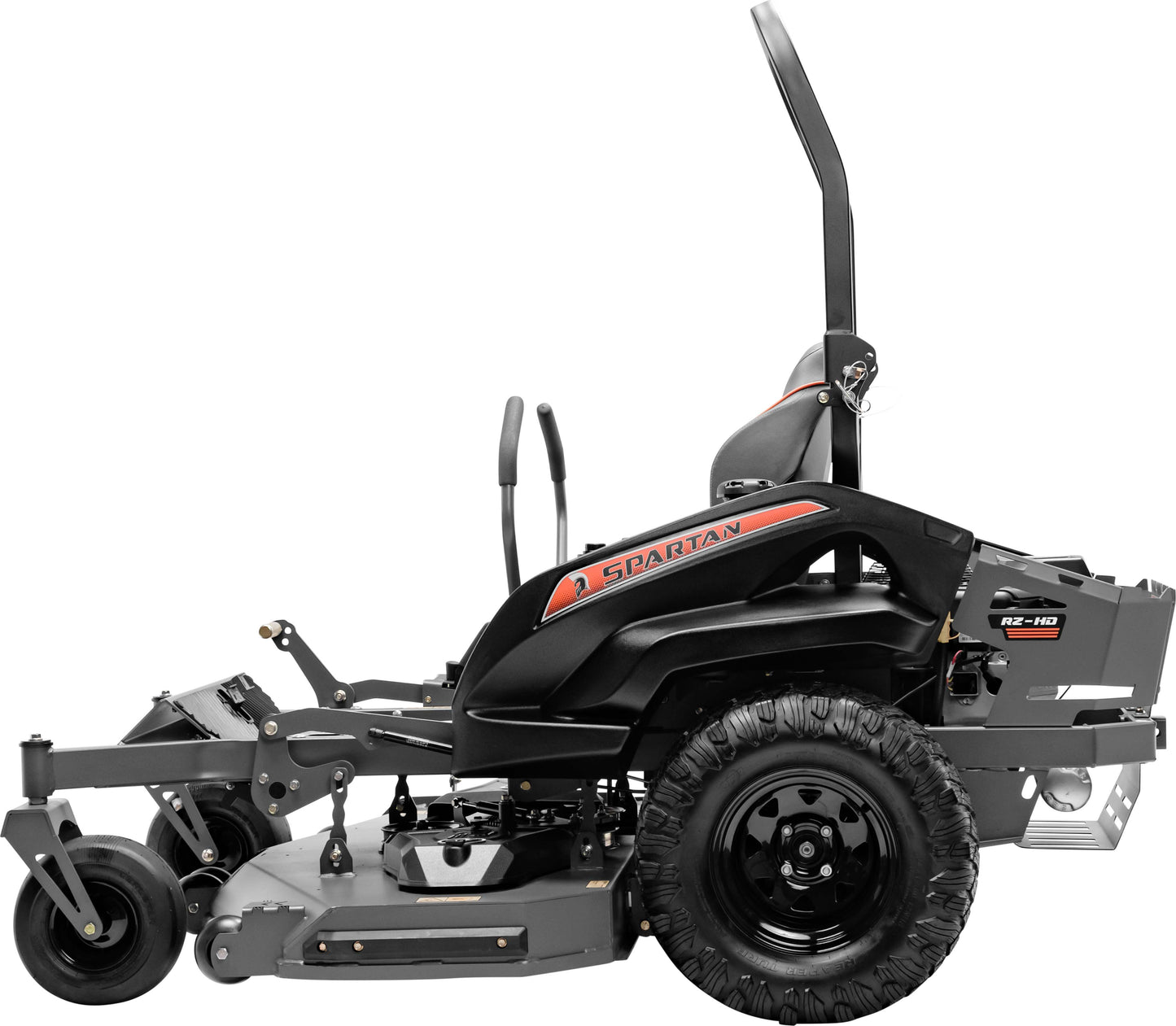

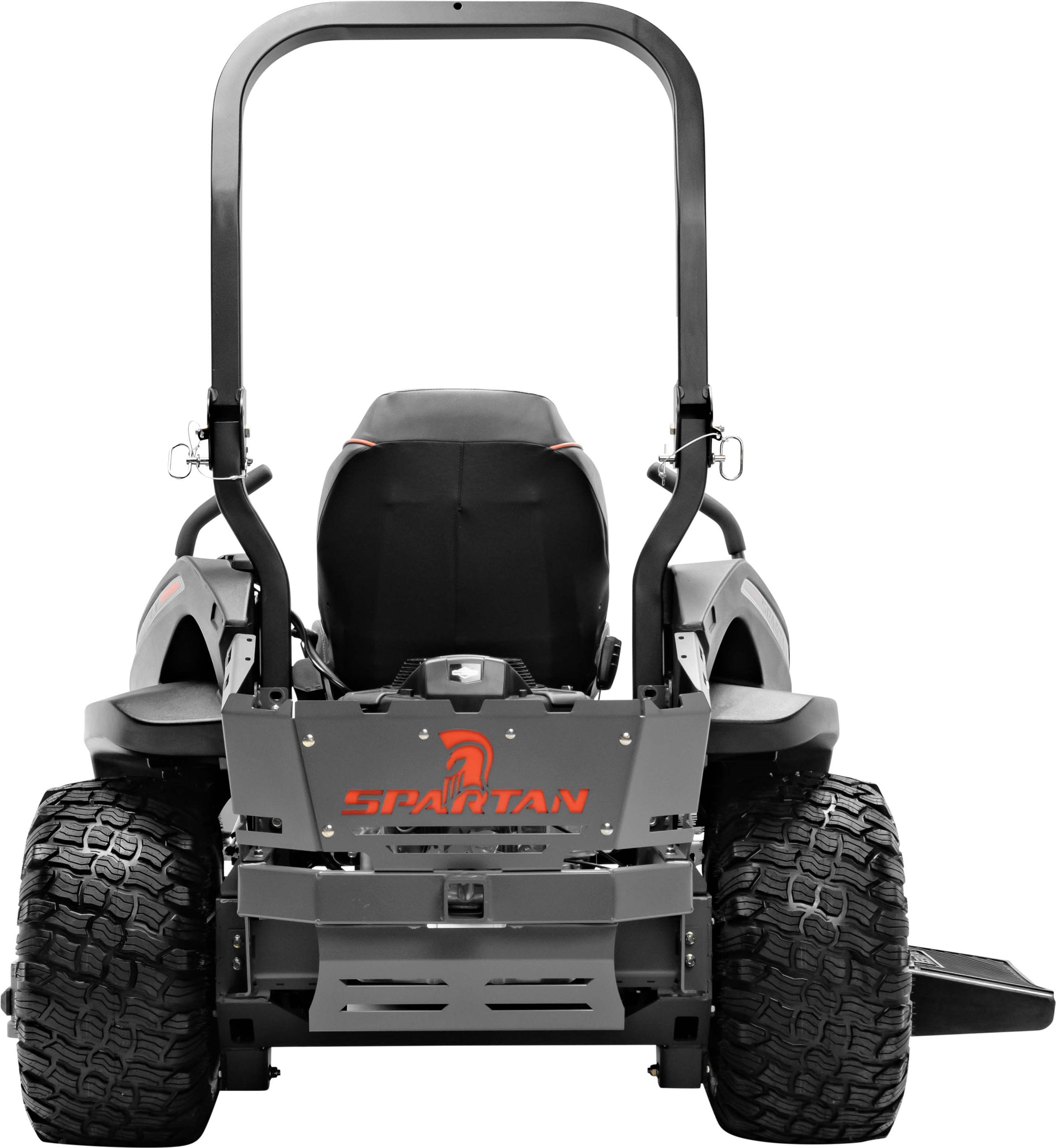

Spartan® RZ-HD - Residential Mower, Heavy Duty Attitude
Key Features
1 1/2" x 3" Tubular Welded Frame
Strong, durable welded frame for maximum stability and long-lasting performance.
Bias Ply Front Tires
Reliable bias ply front tires for a smooth, stable ride over various terrains.
Magnetic Pin Height Adjustment
Quick and secure cutting height adjustments with a magnetic pin system.
Folding ROPS
Convenient, easy-to-fold Roll-Over Protective Structure (ROPS) for added safety and storage efficiency.
GT Trac Stabilization
Advanced GT Trac Stabilization for superior traction and smooth operation on uneven surfaces.
18,500 FPM Blade Tip Speed
High blade tip speed (18,500 FPM) for exceptional cutting power and efficiency.
Protective Side Deck Trim
Durable side deck trim designed to protect your mower from wear and debris.
Upgraded Spindles
Heavy-duty upgraded spindles for improved durability and cutting precision.
7-gauge XTF Deck
Rugged 7-gauge XTF deck for enhanced strength, longevity, and a clean cut.
Foot Operated Parking Brake
Hands-free foot-operated parking brake for added convenience and security.
12V Outlet
Handy 12V outlet for charging devices or powering accessories while on the go.
Large Cup Holder
Spacious cup holder to keep beverages within easy reach during operation.
Phone Holder in Console
Convenient phone holder built into the console for easy access and storage.
Storage Tray in Console
Practical storage tray in the console for small tools and personal items.
2" Receiver Hitch
Heavy-duty 2-inch receiver hitch for towing attachments and accessories.
Key Switch Panel
Simple, secure key switch panel for quick ignition and reliable start-up.
Foot Operated Shock Assisted Deck Lift
Effortless foot-operated deck lift with shock assistance for smooth and easy adjustments.
Anti-Vibration Floor Mat
Anti-vibration floor mat for enhanced comfort and reduced operator fatigue.
Model Comparison
| Model | Deck Size | Engine | Horsepower | Transmission | Top Speed | Fuel Capacity |
|---|---|---|---|---|---|---|
| Shield | 42" / 54 | Kawasaki FR691 | 22 / 23 HP | Hydro-Gear ZT-2200 | 7 MPH | 5 gal |
| Shield-HD | 42" / 54" / 60" | Kawaski FR691V 23 HP/Spartan 24 HP | 23 / 24 HP | Hydro-Gear ZT-2800 | 8 MPH | 5 gal |
| Defender | 48" / 54" / 60" | Kawasaki FR691 | 23 / 24 HP | Hydro-Gear ZT-2800 | 8 MPH | 5 gal |
| RZ-HD | 48" / 54" / 60" | Kawasaki FR691V / Briggs CXI 27 HP / Kawasaki FR730V 24 HP / Kawasaki FR730V HP | 24 / 27 HP | Parker HTE Transaxles - 10cc Drive Motors | 9 MPH | 9.5 gal |
Available Accessories (Sold Separately)
No available accessories data found.
Offers and Financing
Best Rates for Qualified Buyers
Designed for top-tier credit customers who want the lowest rates on mowers and outdoor power equipment. Personal and commercial financing available with no early payoff penalties.
Prequalify
Fast Approval. Flexible Credit.
A strong fit for customers rebuilding or strengthening credit. Personal and commercial equipment loans with fast approvals and no prepayment penalties.
Prequalify
Equipment Without the Wait
Fast, simple approvals for entrepreneurs needing equipment quickly. Covers new and used outdoor power equipment with instant decisions up to $25,000.
Prequalify
Flexible Payments Made Simple
Ideal for mid to top-tier credit customers who want payment flexibility. Revolving credit makes it easy to finance mowers, handheld equipment, and smaller purchases.
View Details
Real Solutions for Real Credit
A strong option when traditional financing says no. Same-day approvals available for new and used mowers and equipment.
View Details
SPARTAN - Spring Mower Sales Event
Spring Mower Sales Event valid from April 1 – June 30, 2026. Credits are issued on qualified retail sales during the promotional period.
Learn MoreSpecification Highlights
Engine
Engine Name: 54" Briggs CXI 27 HP, 60" Briggs CXI 27 HP, 48" Kawasaki FR730V 24 HP, 54" Kawasaki FR730V 24 HP, 60" Kawasaki FR730V HP Horsepower: 24 HP / 27 HP Fuel Capacity: 9.5 Gallons
Drive Line
Hydraulic Drive: Parker HTE Transaxles - 10cc Drive Motors
Hydraulic Drive Torque: Continuous - 262 ft-lb | Max Torque - 406 ft-lb
Hydraulic Drive Maintenance: 1,000 Hours Between Oil Change
Front Tires: 13x6.5-R6 Smooth Tread with Optional Radial Upgrade
Drive Tires: 24x12-12 Reapers
Wheel Type: Steel
Speed (F/R): Forward - Up to 9 mph | Reverse - Up to 5 mph
Features
Acreage: 2+
Seat: Ultra Premium Dymetrol Adjustable 3" Travel Seat
Steering Levers: Adjustable Up and Down
Control Panel LCD Display: Hour Meter - Engine Hours, Tachometer
Control Panel LED Warning
Indicators: N/A Ignition: Key Switch
Auxiliary Power: 12v Outlet Storage: Phone Holder, Cup Holder, and Deep
Storage Tray
Hitch: 2" Rear Receiver
LED Light Bar: Full Beam
Cutting Deck
Deck Size: 54"
Deck Depth: 5" Deep, Reinforced 7 Gauge Full-Floating
Deck Deck Lift: Foot Operated with Shock Assist
Deck Adjustment: Magnetic Pin Height Adjustment
Cut Height: 1.5" to 4.75" with 14 Cut Heights
Blade Spindles: Cast Aluminum, No Maintenance/Sealed Bearings
Parking Brake: Foot Operated
Frame: 1.5" by 3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame
Measurements
Width: 54” Deck - 55.5” Wide
Weight: 907 - 1,095 lb
Length: 84"
Height: 75" with ROPS Up | 54" with Folding ROPS Down
Warranty
Engine Warranty: 3 Year
Leading Deck Edge Warranty: 3 Year
Hydraulic Drive Warranty: 3 Year / 400 Hour
Control Panel Warranty: N/A
Product Warranty: 3 Year / 400 Hour
Battery Warranty: 6 Months
Belt Warranty: 90 Days
