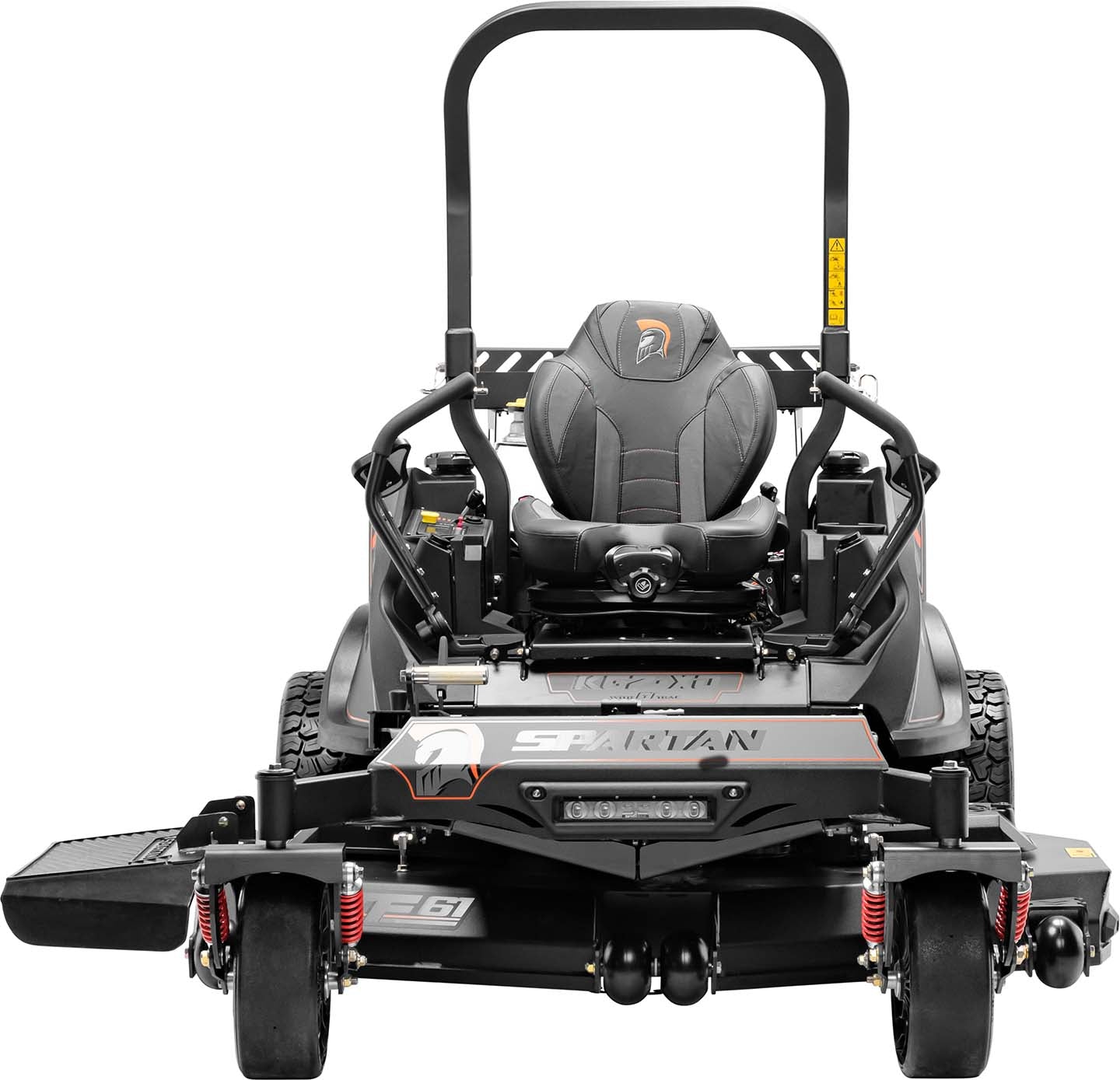

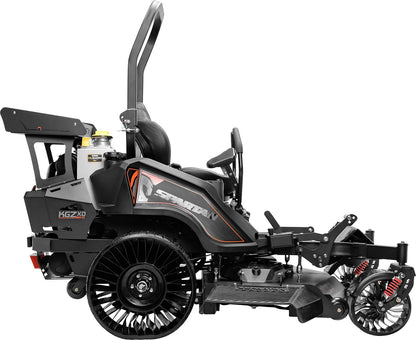

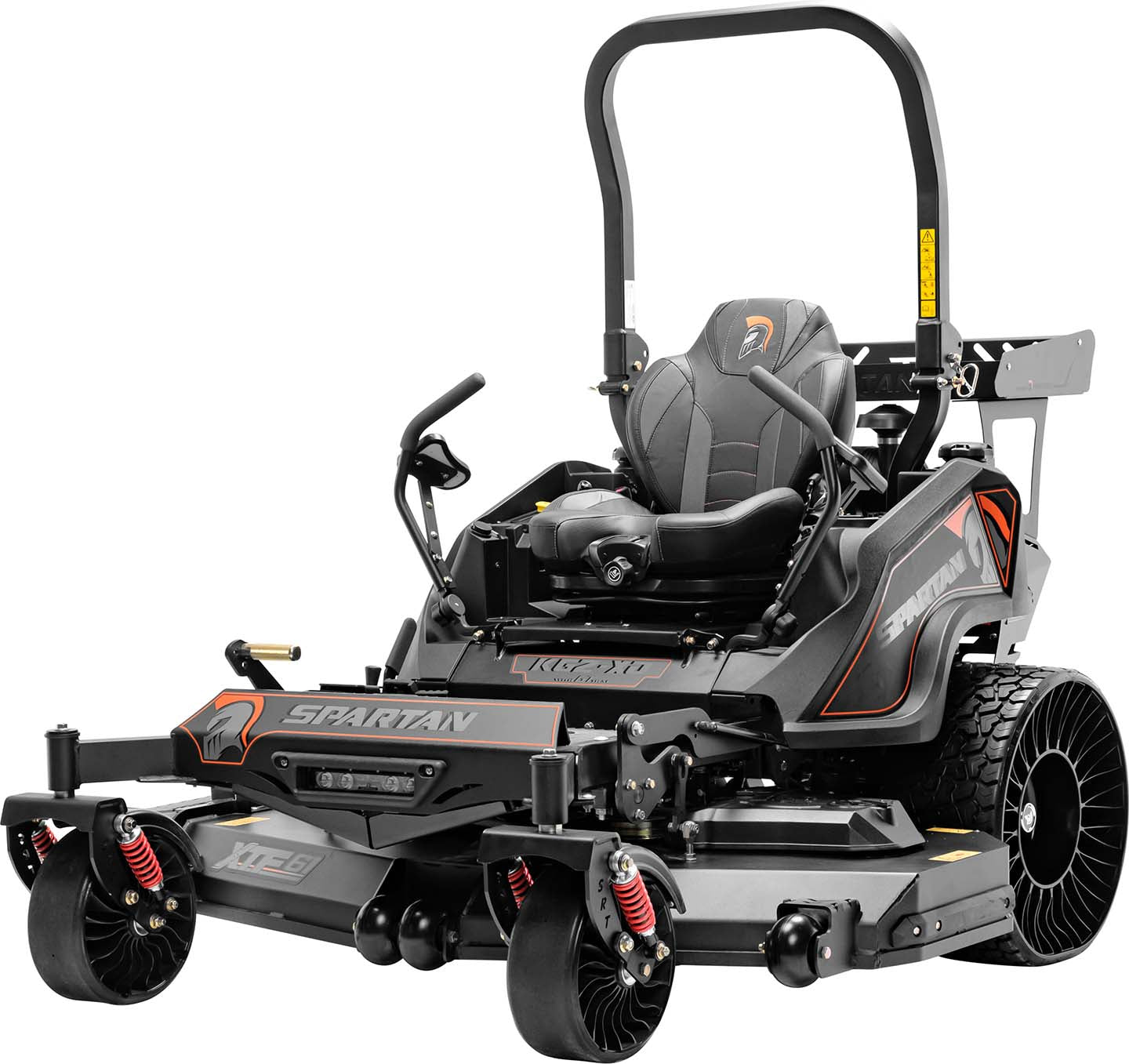

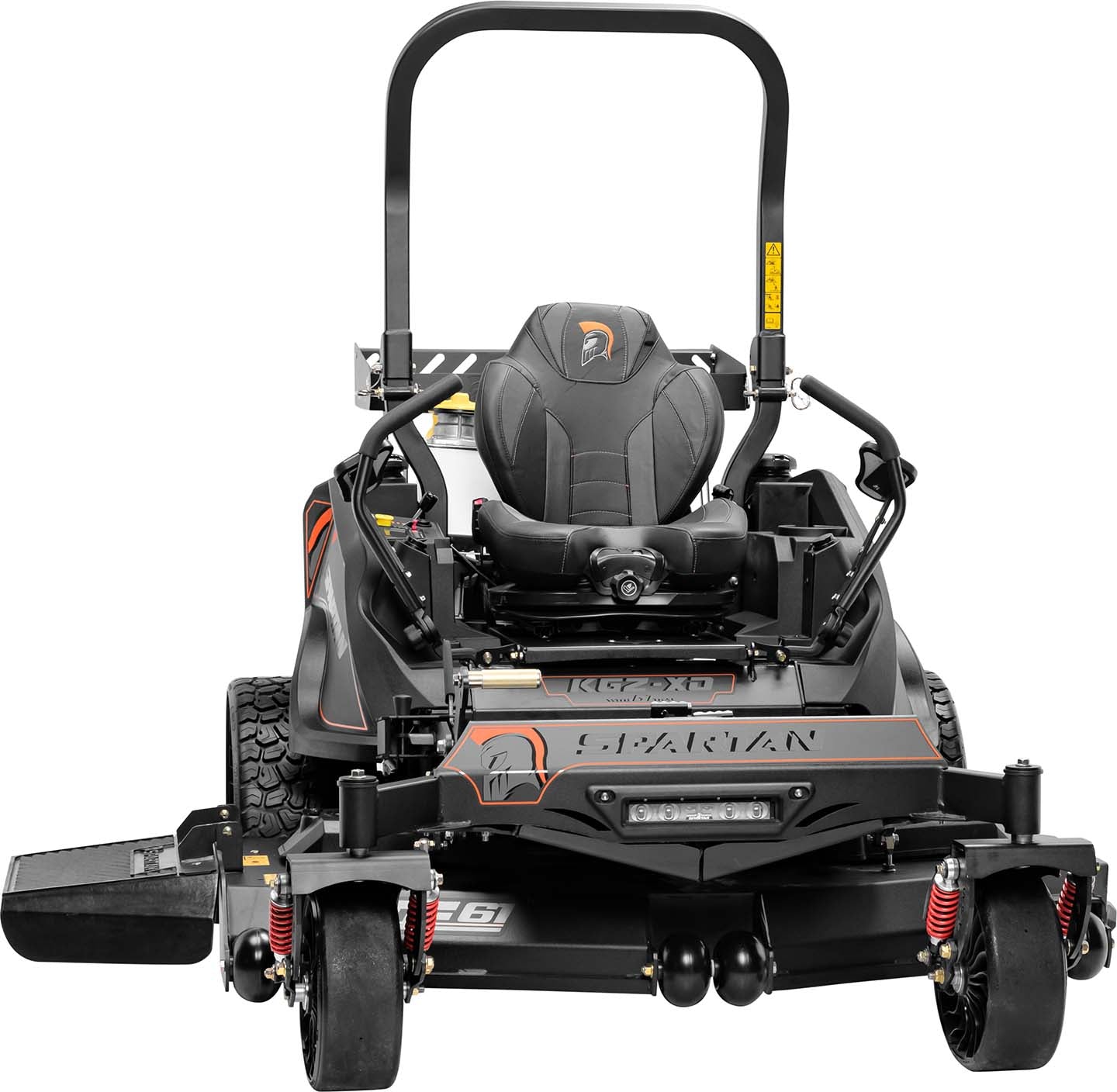

Spartan® KGZ-XD - The King of Zero Turn Mowers
Key Features
1 1/2" x 3" Tubular Welded Frame
Strong, heavy-duty welded frame built for durability and stability.
17 gal Fuel Capacity
Large 17-gallon fuel tank for extended mowing sessions with fewer refuels.
TecsPak® Under Seat
Innovative TecsPak® under-seat suspension system for added comfort and support.
Rear Spring Suspension
Smooths the ride with rear spring suspension, reducing bumps on uneven terrain.
Front Suspension Forks
Front suspension forks for a smoother ride and better handling over rough ground.
Oil Guard System
Advanced Oil Guard system for improved engine protection and extended oil life.
Dual Exhaust
Dual exhaust system for enhanced engine performance and a distinctive sound.
Spoiler Basket
Functional spoiler basket for added storage and improved aerodynamics.
Oversized Electric Clutch
Heavy-duty oversized electric clutch for reliable engagement and quick starts.
Multi-Function Keypad with Soft Start
Easy-to-use keypad with soft start technology for smoother operation.
Versa Guard Personalized Control Panels
Customizable Versa Guard control panels for personalized user settings.
360-degree Seat Plate
Fully adjustable 360-degree rotating seat plate for tailored comfort and convenience.
Full Beam LED Light Bar
Bright full beam LED light bar for excellent visibility in low-light conditions.

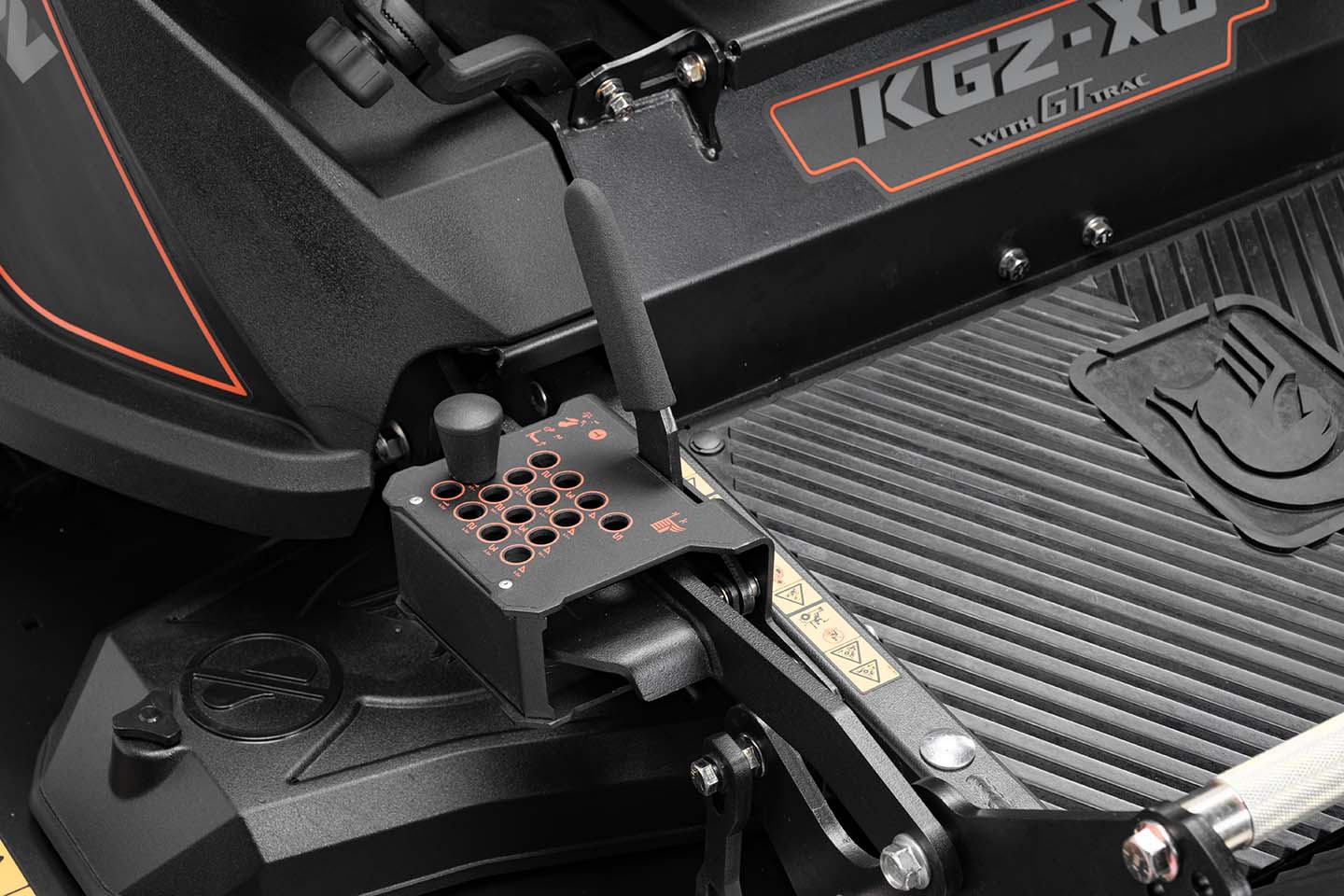

Magnetic Pin Height Adjustment
Quick and secure deck height adjustment with magnetic pin system for precision.
Adjustable Steering Arms
Fully adjustable steering arms for improved comfort and better handling.
Folding ROPS
Convenient, foldable Roll-Over Protective Structure (ROPS) for safety and easy storage.
GT Trac Stabilization
GT Trac Stabilization technology for superior traction and smoother performance on uneven terrain.
18,500 FPM Blade Tip Speed
High 18,500 FPM blade tip speed for clean, efficient cutting with minimal effort.
Protective Side Deck Trim
Durable side deck trim designed to protect against wear and debris while mowing.
Upgraded Spindles
Heavy-duty upgraded spindles for increased durability and precise cutting performance.
7-gauge XTF Deck
Rugged 7-gauge XTF deck for superior strength and professional-grade cutting results.
Foot Operated Parking Brake
Hands-free foot-operated parking brake for quick and easy parking engagement.
12V Outlet
Convenient 12V outlet to charge devices or power accessories while on the go.
Large Cup Holder
Spacious cup holder to keep beverages secure and within easy reach during operation.
Phone Holder in Console
Built-in phone holder in the console for easy access and secure storage.
Storage Tray in Console
Practical console storage tray for small tools, accessories, and personal items.
2" Receiver Hitch
Heavy-duty 2-inch receiver hitch for towing accessories and attachments with ease.
Key Switch Panel
Secure key switch panel for simple, reliable ignition and operation.
Foot Operated Shock Assisted Deck Lift
Foot-operated deck lift with shock assistance for smooth, effortless adjustments.
Anti-Vibration Floor Mat
Anti-vibration floor mat to reduce fatigue and enhance comfort during long operations.
Rear Stabilizing Wheels
Durable rear stabilizing wheels for improved deck stability and smoother cuts.
Premium Adjustable 3" Travel Seat
Premium seat with 3" of adjustable travel for personalized comfort and support.
Special Blackout Seat Design
Stylish blackout seat design for a sleek, modern appearance and added durability.
Model Comparison
| Model | Deck Size | Engine | Horsepower | Transmission | Top Speed | Fuel Capacity |
|---|---|---|---|---|---|---|
| RZ-XD | 48" / 54" / 60" | Kawasaki FX730V 24 HP | 24 HP | Parker HTE Transaxles - 10cc Drive Motors | 9 MPH | 9.5 gal |
| RZ-XD Blackout | 54" / 60" | Kawasaki FX801V 25.5 HP | 25.5 HP | Parker HTE Transaxles - 10cc Drive Motors | 9 MPH | 9.5 gal |
| RT-HD | 54" / 61" / 72" | Vanguard EFI 993cc 37 HP / Kawasaki Vanguard EFI 993cc 37 HP / Kawasaki FX1000 35 HP | 35 / 37 HP | Parker HTJ Transaxles - 12cc Drive Motors | 11 MPH | 9.5 gal |
| SRT-XDe | 54" / 61" | Kawasaki FX801V 25.5 HP | 25.5 HP | Parker HTJ Transaxles - 12cc Drive Motors | 11 MPH | 9.5 gal |
| SRT-XD | 61" / 72" | Kawasaki FX1000 EFI 38.5 HP / Vanguard EFI 994cc w/OG 40 HP | 38.5 / 40 HP | Parker HTG Transaxles - 16cc Drive Motors | 13 MPH | 9.5 gal |
| KGZ-XD | 61" / 72" | Vanguard EFI 994cc w/OG 40 HP | 40 HP | Parker HTG Transaxles - 16cc Drive Motors | 15 MPH | 17 gal |
Available Accessories (Sold Separately)
No available accessories data found.
Offers and Financing
Best Rates for Qualified Buyers
Designed for top-tier credit customers who want the lowest rates on mowers and outdoor power equipment. Personal and commercial financing available with no early payoff penalties.
Prequalify
Fast Approval. Flexible Credit.
A strong fit for customers rebuilding or strengthening credit. Personal and commercial equipment loans with fast approvals and no prepayment penalties.
Prequalify
Equipment Without the Wait
Fast, simple approvals for entrepreneurs needing equipment quickly. Covers new and used outdoor power equipment with instant decisions up to $25,000.
Prequalify
Flexible Payments Made Simple
Ideal for mid to top-tier credit customers who want payment flexibility. Revolving credit makes it easy to finance mowers, handheld equipment, and smaller purchases.
View Details
Real Solutions for Real Credit
A strong option when traditional financing says no. Same-day approvals available for new and used mowers and equipment.
View Details
SPARTAN - Spring Mower Sales Event
Spring Mower Sales Event valid from April 1 – June 30, 2026. Credits are issued on qualified retail sales during the promotional period.
Learn MoreSpecification Highlights
Engine
Engine Name: 61" Vanguard EFI 994cc w/OG 40 HP, 72" Vanguard EFI 994cc w/OG 40 HP
Horsepower: 40 HP
Fuel Capacity: 17 Gallons
Drive Line
Hydraulic Drive: Parker HTG Transaxles - 16cc Drive Motors
Hydraulic Drive Torque: Continuous - 498 ft-lb | Max Torque - 587 ft-lb
Hydraulic Drive Maintenance: 1,000 Hours Between Oil Changes
Front Tires: 13x6.5-R6 Michelin Tweels®
Drive Tires: 24x14-R12 Michelin Tweels®
Wheel Type: Michelin Tweels®
Speed (F/R): Forward - Up to 15 mph | Reverse - Up to 6 mph
Features
Acreage: 5+
Seat: Supreme Custom Blackout Seat - Adjustable TecsPak Elastomer supports - 360 degree floating seat platform
Steering Levers: Soft-Touch Knobs to Adjust Forward and Back. Adjustable Up and Down
Control Panel LCD Display: Engine Hour Meter - Mower Deck Hour Meter - Tachometer - Low Level Warning Volt Meter - Time Between Oil Change Countdown - Fault Codes
Control Panel LED Warning Indicators: Parking Brake Set - Drive Levers - Operator Present - PTO - Low/Hi Battery Volts - Low Oil PSI
Ignition: Keyless, Personal Code activated
Auxiliary Power: 12v Outlet
Storage: Phone Holder, Cup Holder, and Deep Storage Tray
Hitch: 2" Rear Receiver
LED Light Bar: Full Beam
Cutting Deck
Deck Size: 61"
Deck Depth: 6" Deep, Reinforced 7 Gauge Full-Floating Deck
Deck Lift: Foot Operated with Shock Assist
Deck Adjustment: Magnetic Pin Height Adjustment
Cut Height: 1.5" to 4.75" with 14 Cut Heights
Blade Spindles: Cast Aluminum, No Maintenance/Sealed Bearings
Parking Brake: Foot Operated
Frame: 1.5" by 3" Powder Coated Fusion-Bonded Solid Steel Bridge Frame
Measurements
Width: 61” Deck - 61.1” Wide
Weight: 1,310 lbs
Length: 84”
Height: 75" with ROPS Up - 54" with Folding ROPS Down
Warranty
Engine Warranty: 3 Year
Leading Deck Edge Warranty: 3 Year
Hydraulic Drive Warranty: 3 Year / 750 Hour
Control Panel Warranty: 3 Year
Product Warranty: 3 Year
Battery Warranty: 6 Months
Belt Warranty: 90 Days
