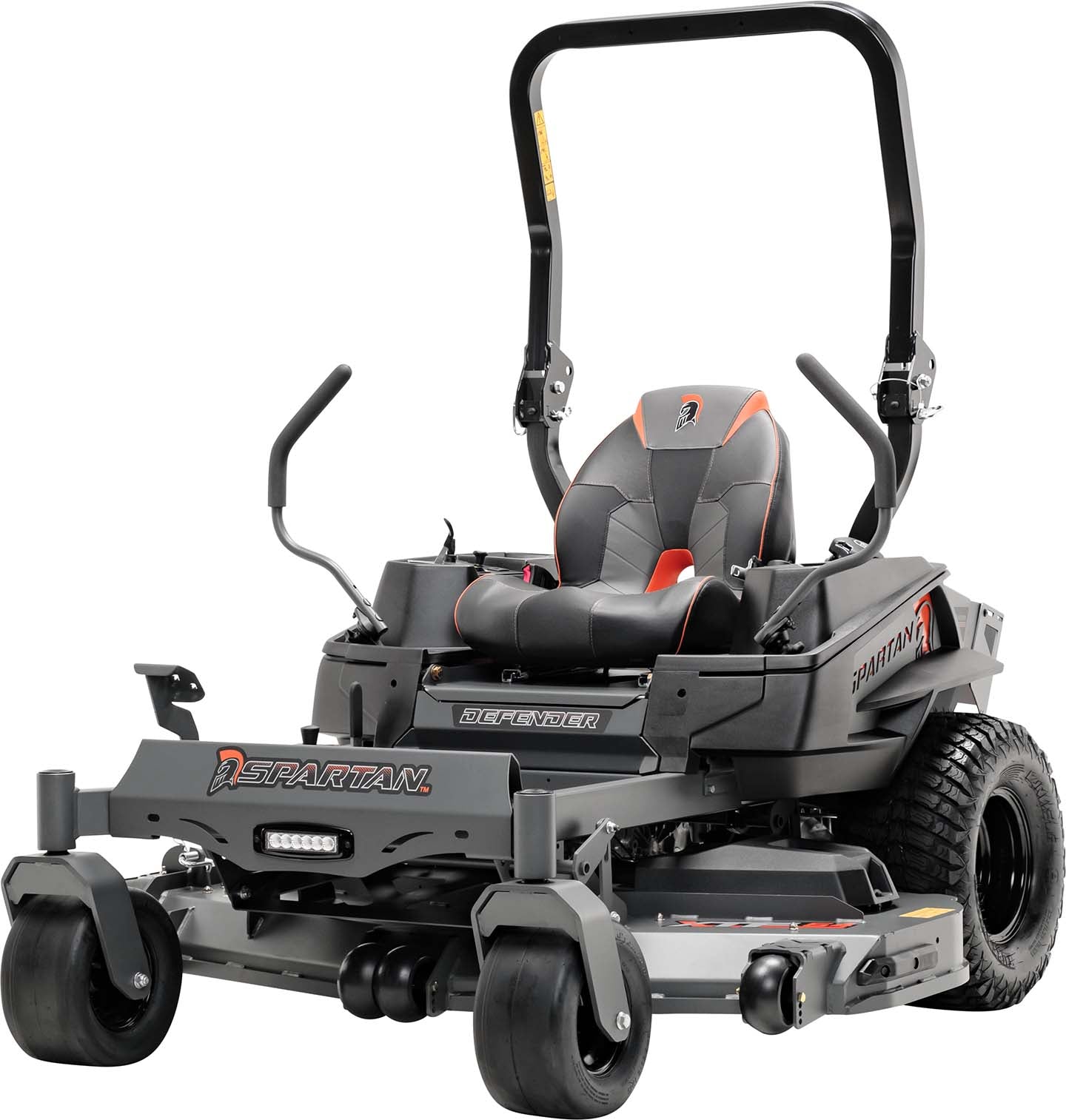

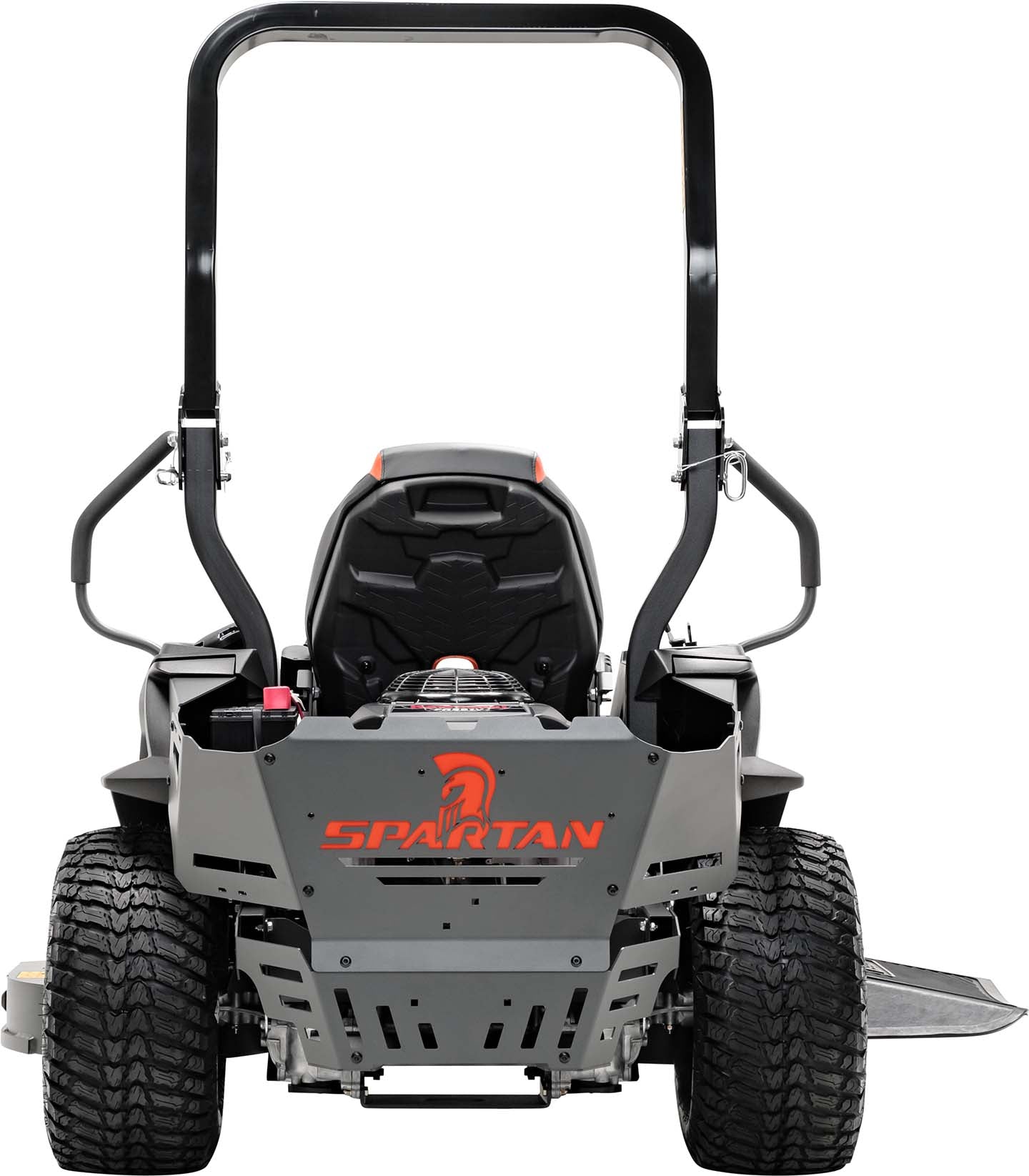

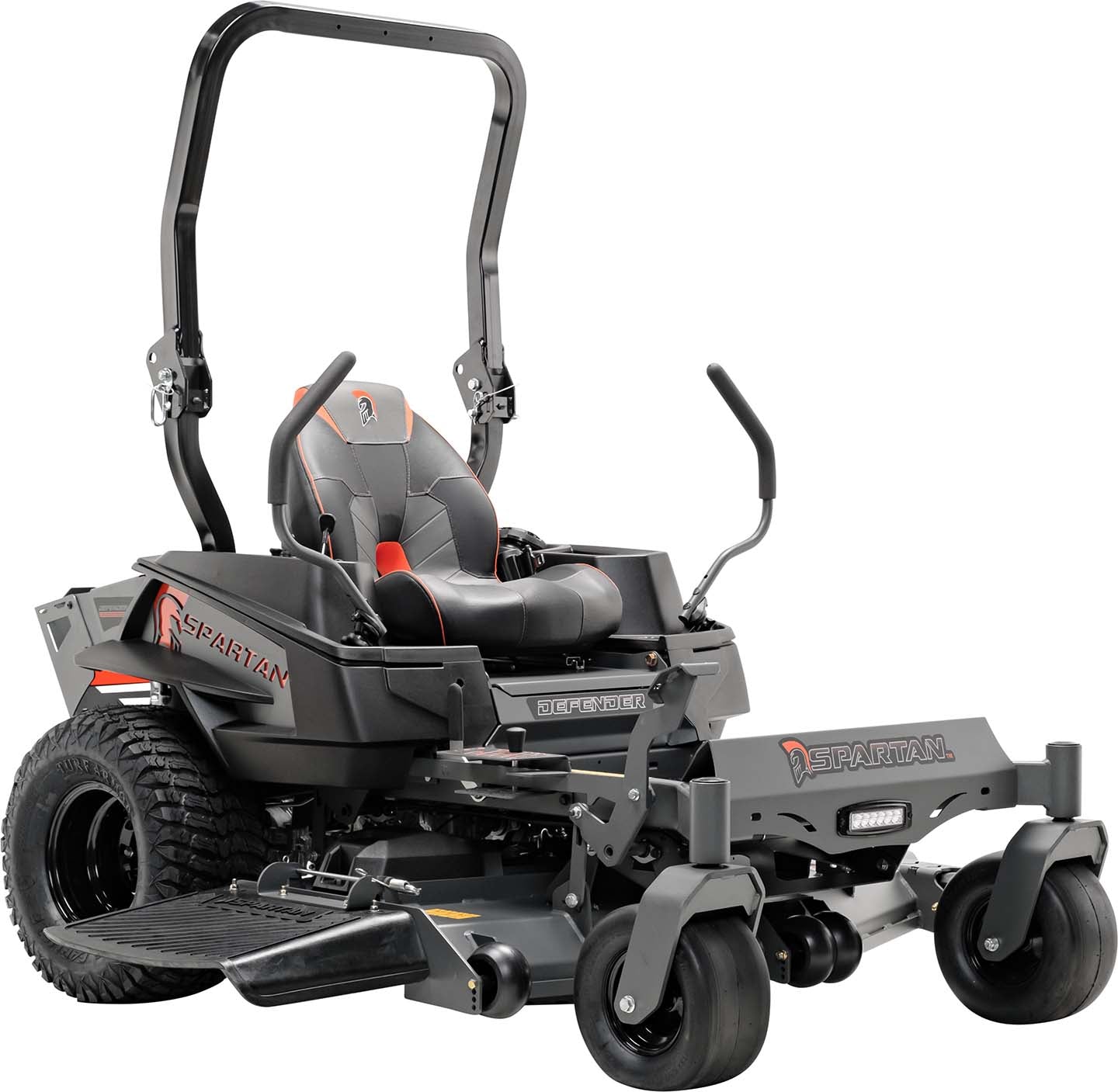

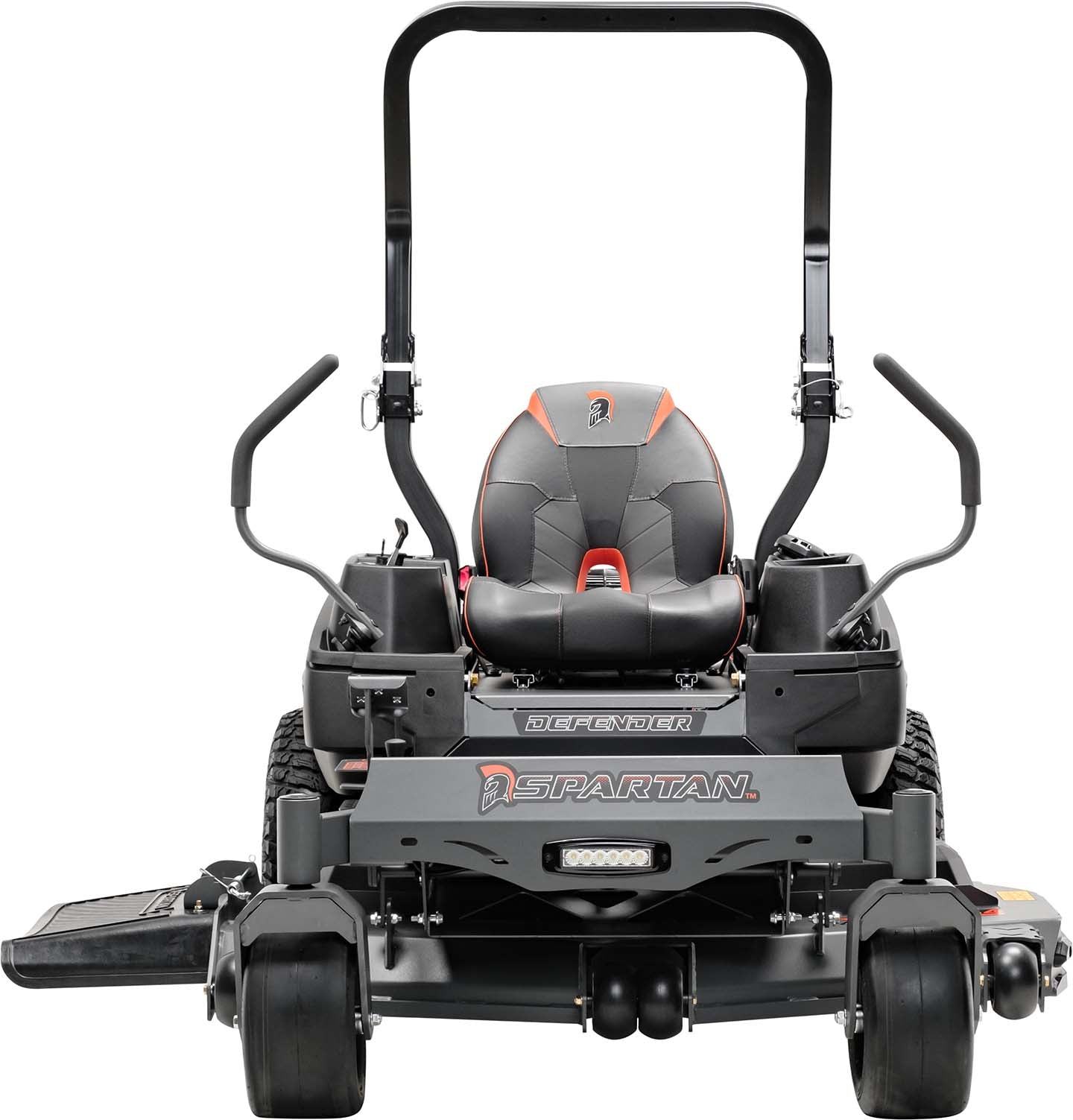

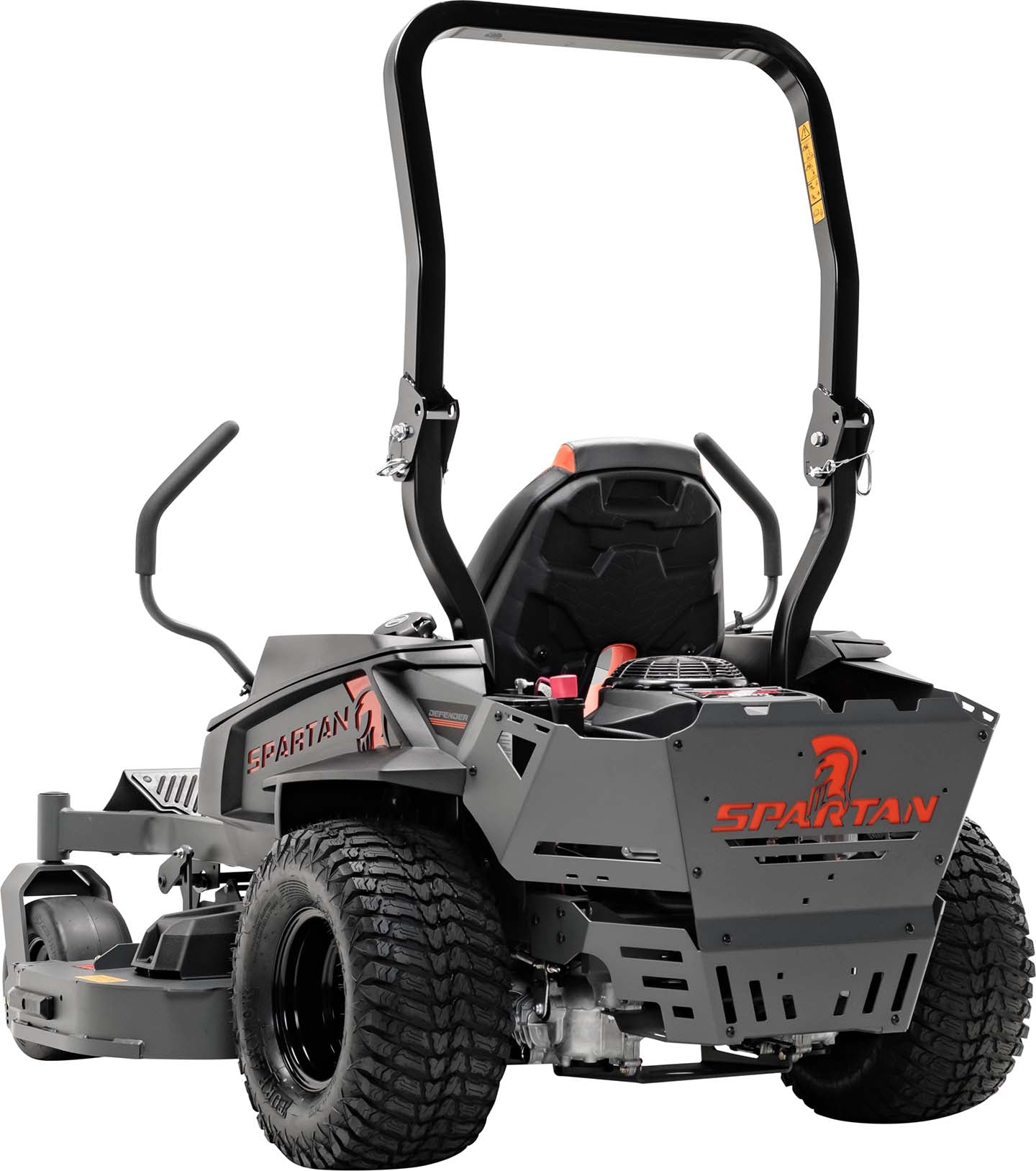

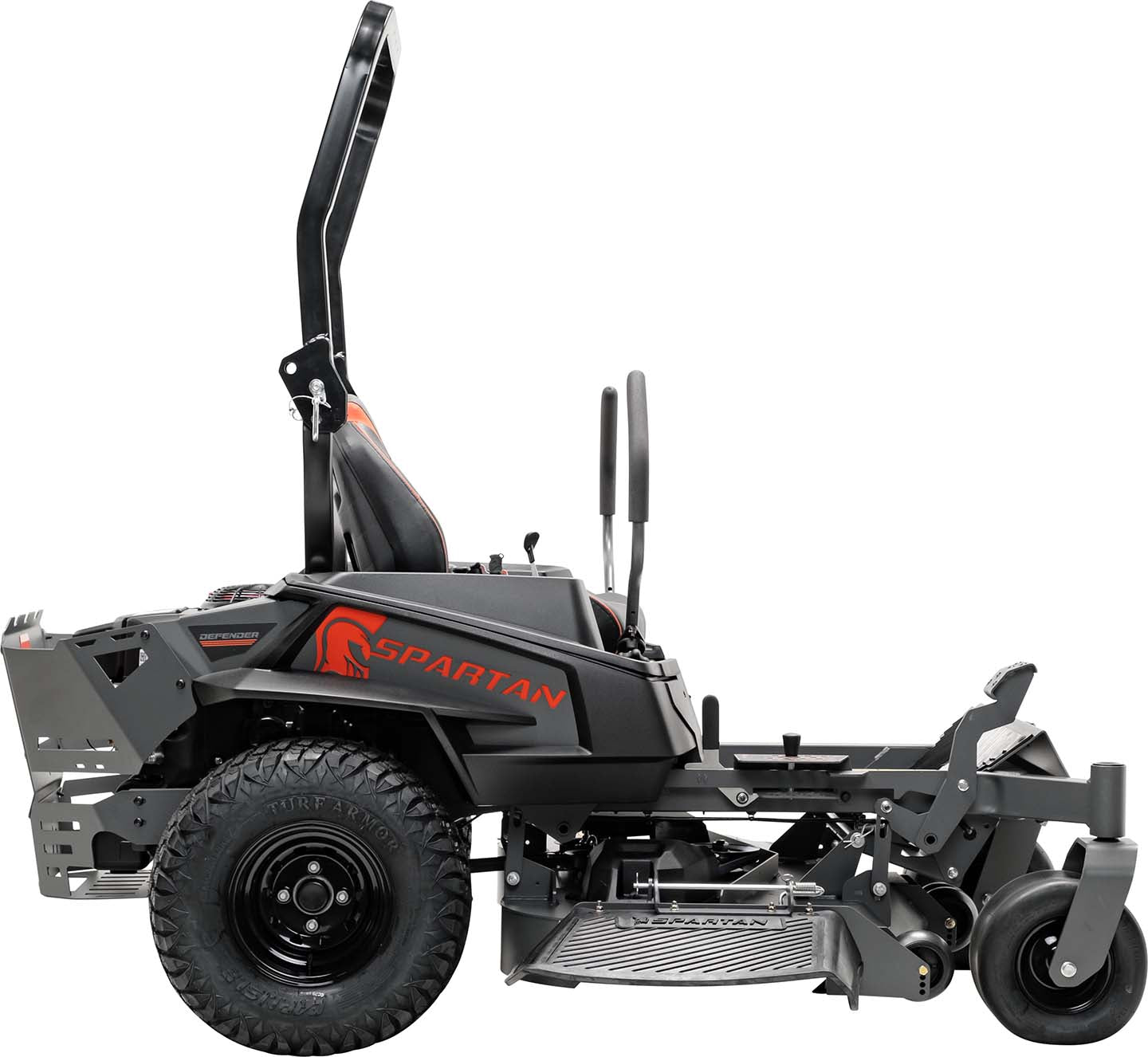

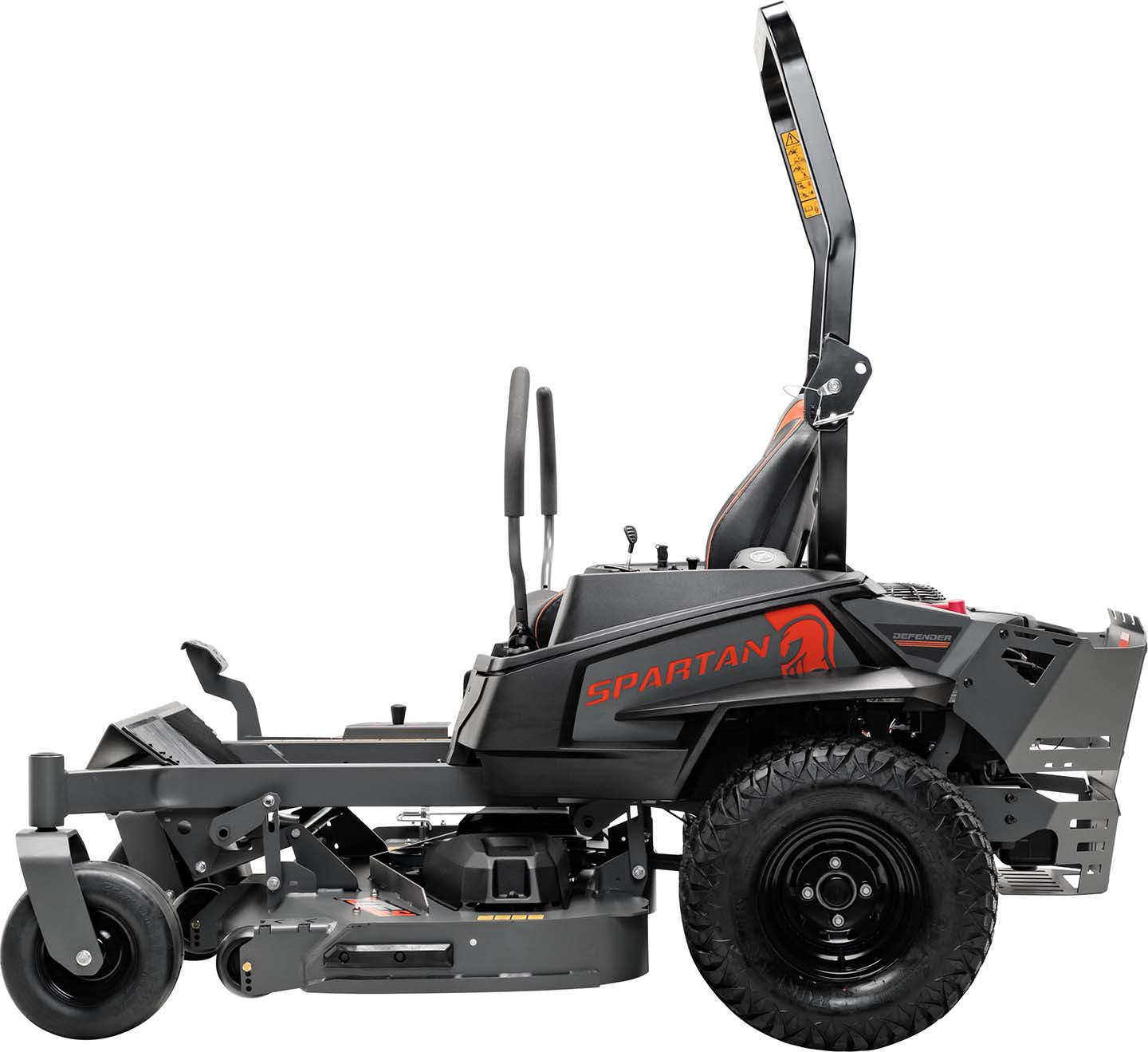

Spartan® Defender - Commercial Features at a Homeowner Price
Key Features
1 1/2" x 3" Tubular Welded Frame
Heavy-duty welded frame for exceptional durability and strength.
Automatic Parking Brake
Effortless automatic parking brake for secure, hands-free parking.
Hydro-Gear ZT-2800 Transmission
High-efficiency ZT-2800 transmission for smooth, responsive performance.
5 gal Fuel Capacity
5-gallon fuel tank for longer operation without frequent refueling.
4.5" Deck Height
4.5-inch deck height for precise, professional-level cutting results.

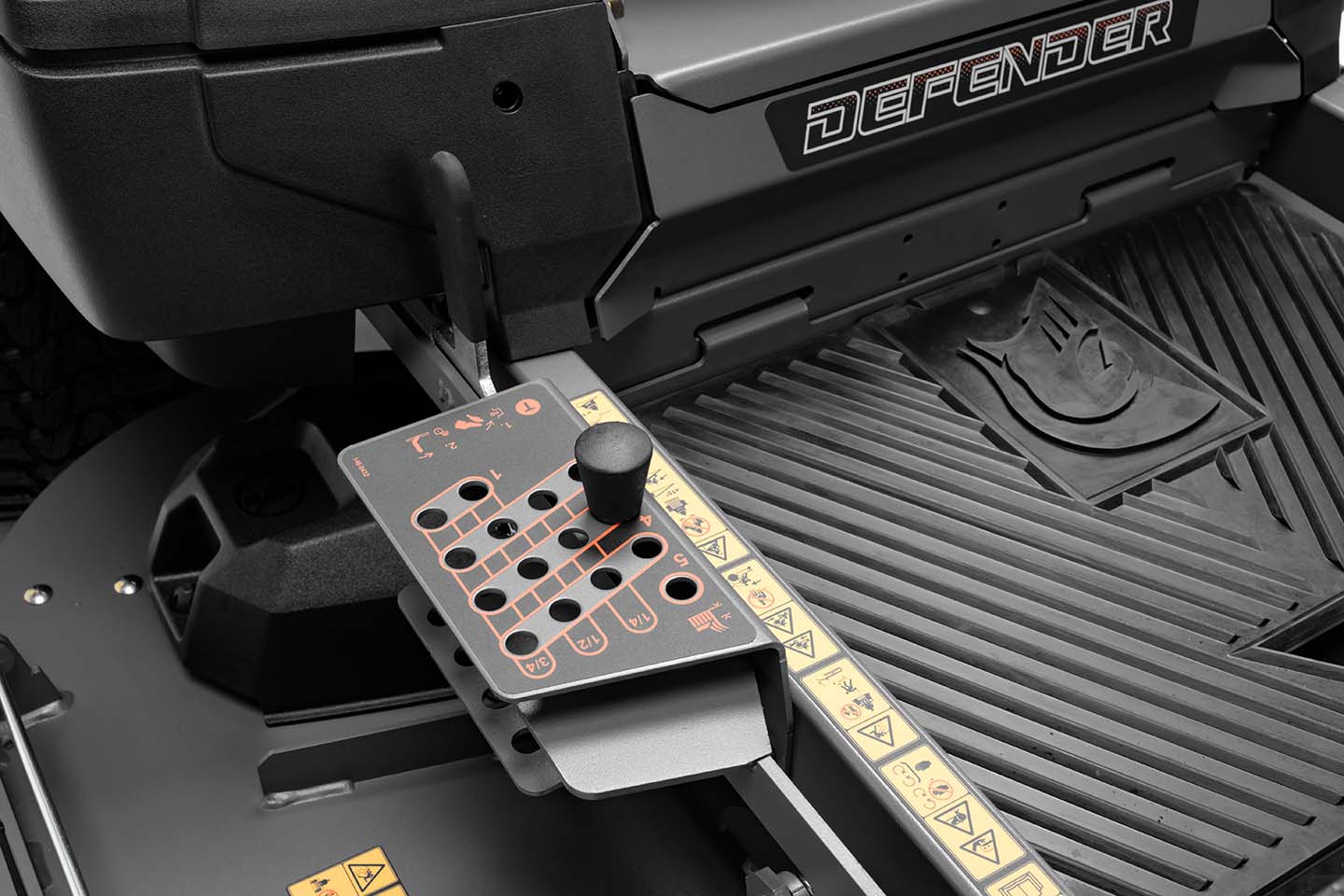

Magnetic Pin Height Adjustment
Quick, secure deck height adjustments with a magnetic pin system.5
Adjustable Steering Arms
Customizable steering arms for improved comfort and handling.
Folding ROPS
Convenient folding Roll-Over Protective Structure (ROPS) for easy storage and safety.
18,500 FPM Blade Tip Speed
High 18,500 FPM blade tip speed for superior cutting performance.
Protective Side Deck Trim
Durable side deck trim to protect against wear and debris.
Key Switch Panel
Simple, secure key switch panel for quick engine start-up.
Foot Operated Shock Assisted Deck Lift
Effortless foot-operated deck lift with shock assistance for smooth operation.
Model Comparison
| Model | Deck Size | Engine | Horsepower | Transmission | Top Speed | Fuel Capacity |
|---|---|---|---|---|---|---|
| Shield | 42" / 54 | Kawasaki FR691 | 22 / 23 HP | Hydro-Gear ZT-2200 | 7 MPH | 5 gal |
| Shield-HD | 42" / 54" / 60" | Kawaski FR691V 23 HP/Spartan 24 HP | 23 / 24 HP | Hydro-Gear ZT-2800 | 8 MPH | 5 gal |
| Defender | 48" / 54" / 60" | Kawasaki FR691 | 23 / 24 HP | Hydro-Gear ZT-2800 | 8 MPH | 5 gal |
| RZ-HD | 48" / 54" / 60" | Kawasaki FR691V / Briggs CXI 27 HP / Kawasaki FR730V 24 HP / Kawasaki FR730V HP | 24 / 27 HP | Parker HTE Transaxles - 10cc Drive Motors | 9 MPH | 9.5 gal |
Available Accessories (Sold Separately)
No available accessories data found.
Offers and Financing
Best Rates for Qualified Buyers
Designed for top-tier credit customers who want the lowest rates on mowers and outdoor power equipment. Personal and commercial financing available with no early payoff penalties.
Prequalify
Fast Approval. Flexible Credit.
A strong fit for customers rebuilding or strengthening credit. Personal and commercial equipment loans with fast approvals and no prepayment penalties.
Prequalify
Equipment Without the Wait
Fast, simple approvals for entrepreneurs needing equipment quickly. Covers new and used outdoor power equipment with instant decisions up to $25,000.
Prequalify
Flexible Payments Made Simple
Ideal for mid to top-tier credit customers who want payment flexibility. Revolving credit makes it easy to finance mowers, handheld equipment, and smaller purchases.
View Details
Real Solutions for Real Credit
A strong option when traditional financing says no. Same-day approvals available for new and used mowers and equipment.
View Details
SPARTAN - Spring Mower Sales Event
Spring Mower Sales Event valid from April 1 – June 30, 2026. Credits are issued on qualified retail sales during the promotional period.
Learn MoreSpecification Highlights

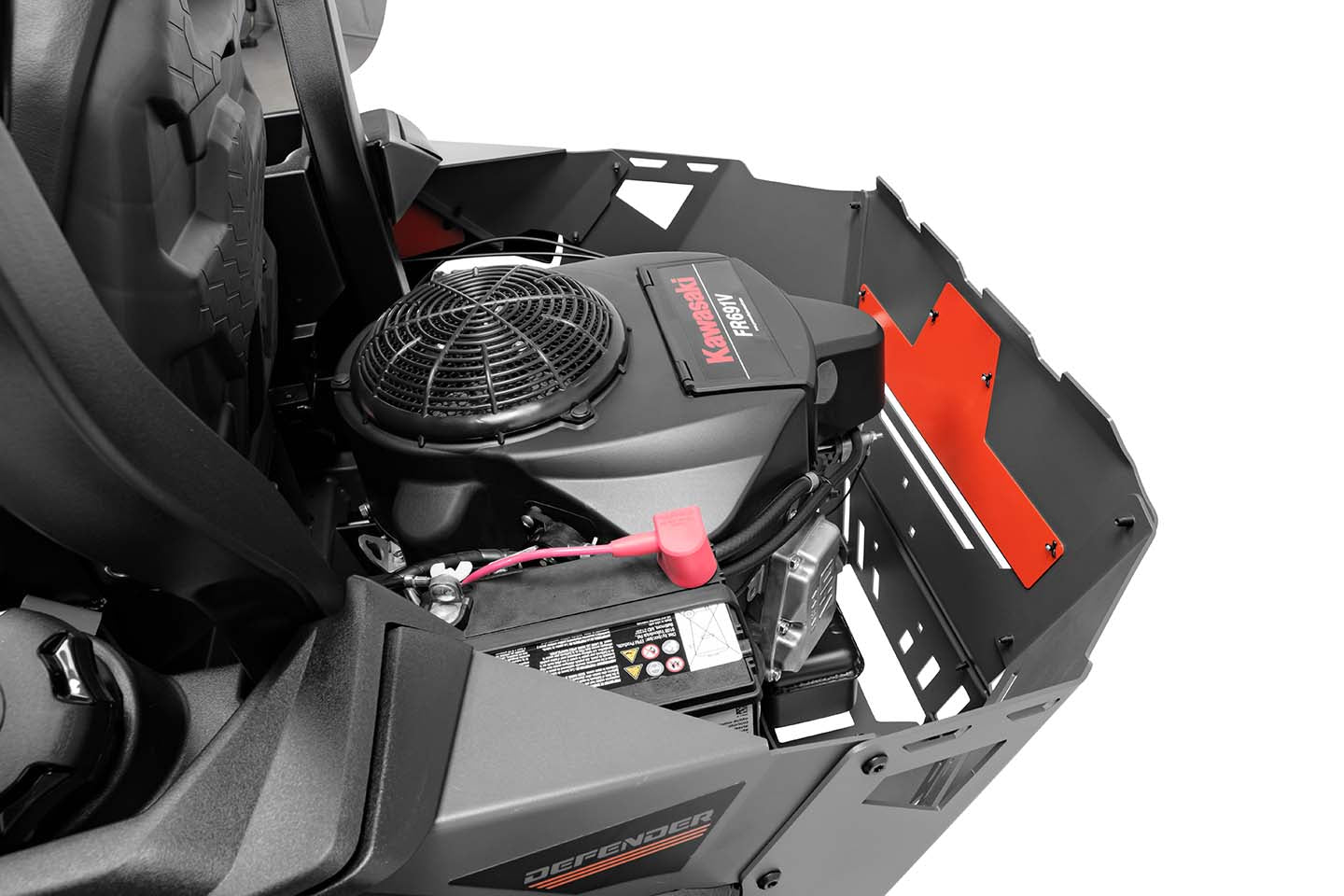

Engine
Engine Name: 48" Kawasaki FR691V 23 HP, 54" Kawasaki FR691V 23 HP, 60" Kawasaki FR730V 24 HP
Engine Name: Kawasaki FR691
Horsepower: 23 HP / 24 HP
Fuel Capacity: 5 Gallons
Drive Line
Hydraulic Drive: Hydro-Gear ZT-2800
Hydraulic Drive Torque: Up to 300 ft-lb
Hydraulic Drive Maintenance: 400 Hours Between Oil Change
Front Tires: 13" Bias Ply
Drive Tires: 22x11-10 Carlisle Turf Armor
Wheel Type: Steel
Speed (F/R): Forward - Up to 8 mph, Reverse - Up to 5 mph
Features
Acreage: Up to 2 acres

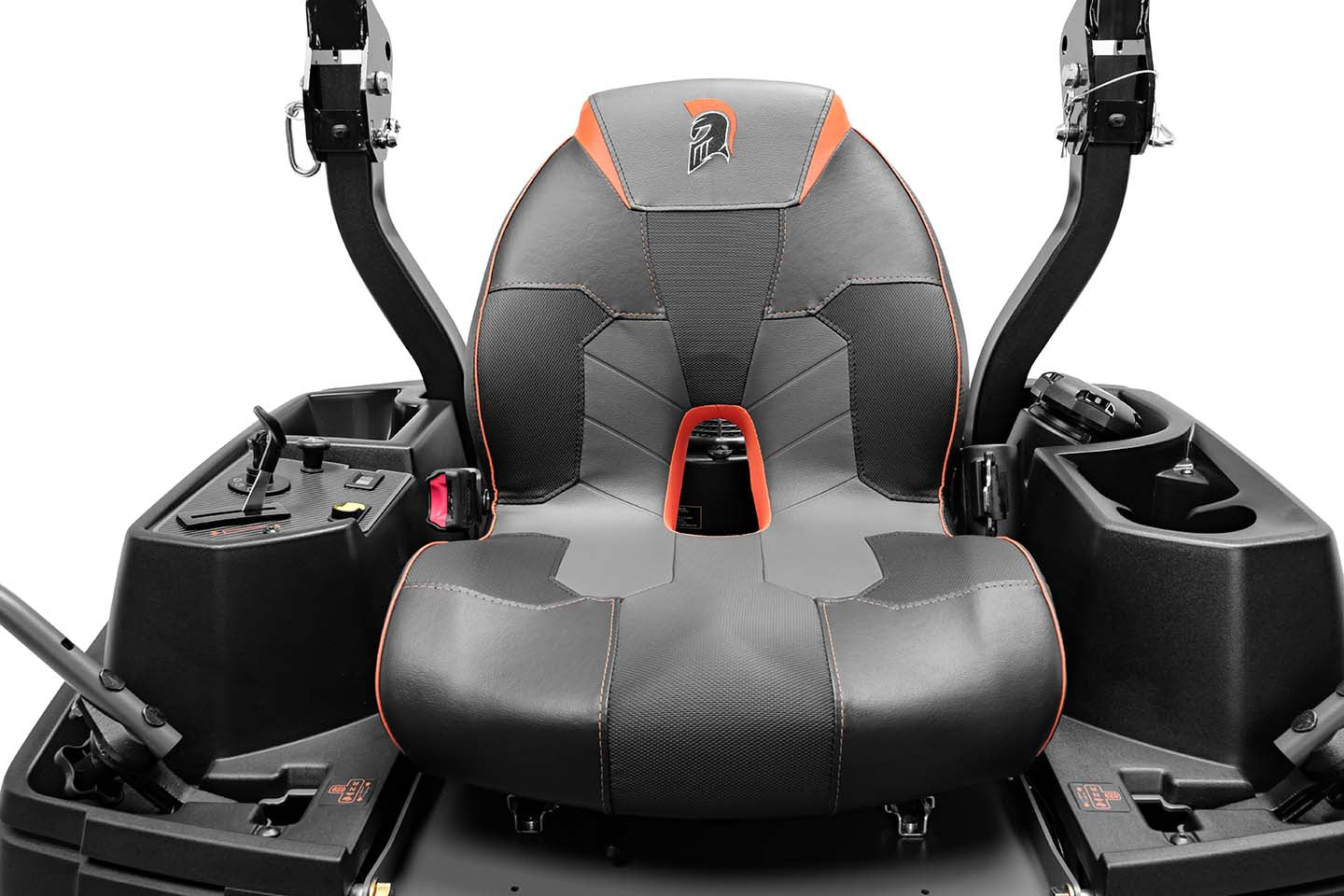

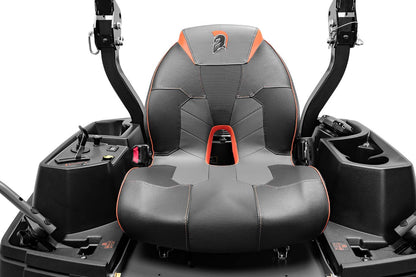

Seat: Premium
Steering Levers: Soft-Touch Knobs to Adjust Forward and Back. Adjustable Up and Down
Control Panel LCD Display: Hour Meter - Engine Hours
Control Panel LED Warning Indicators: N/A
Ignition: Key Switch
Auxiliary Power: N/A
Storage: Cup Holder and Deep Storage Tray
Hitch: N/A
LED Light Bar: Full Beam
Cutting Deck
Deck Size: 48"
Deck Depth: 4.5", 7 gauge deck
Deck Lift: Foot Operated
Deck Adjustment: Magnetic Pin Height Adjustment
Cut Height: 1" to 5" with 15 Cut Heights
Blade Spindles: Cast Aluminum, No Maintenance/Sealed Bearings
Parking Brake: Automatic in Control Arms
Frame: 1.5" by 3" Powder Coated Frame
Measurements
Width: 48" Deck - 43.5" Wide
Weight: 765 - 862 lbs
Length: 81"
Height: 74" with ROPS up - 49" with Folding ROPS down
Warranty
Engine Warranty: 3 Year
Leading Deck Edge Warranty: 3 Year
Hydraulic Drive Warranty: 3 Year / 300 Hour
Control Panel Warranty: N/A
Product Warranty: 3 Year / 300 Hour
Battery Warranty: 6 Months
Belt Warranty: 90 Days
