Barreto Trenchers - Dig Deep with Unstoppable Power

1 7

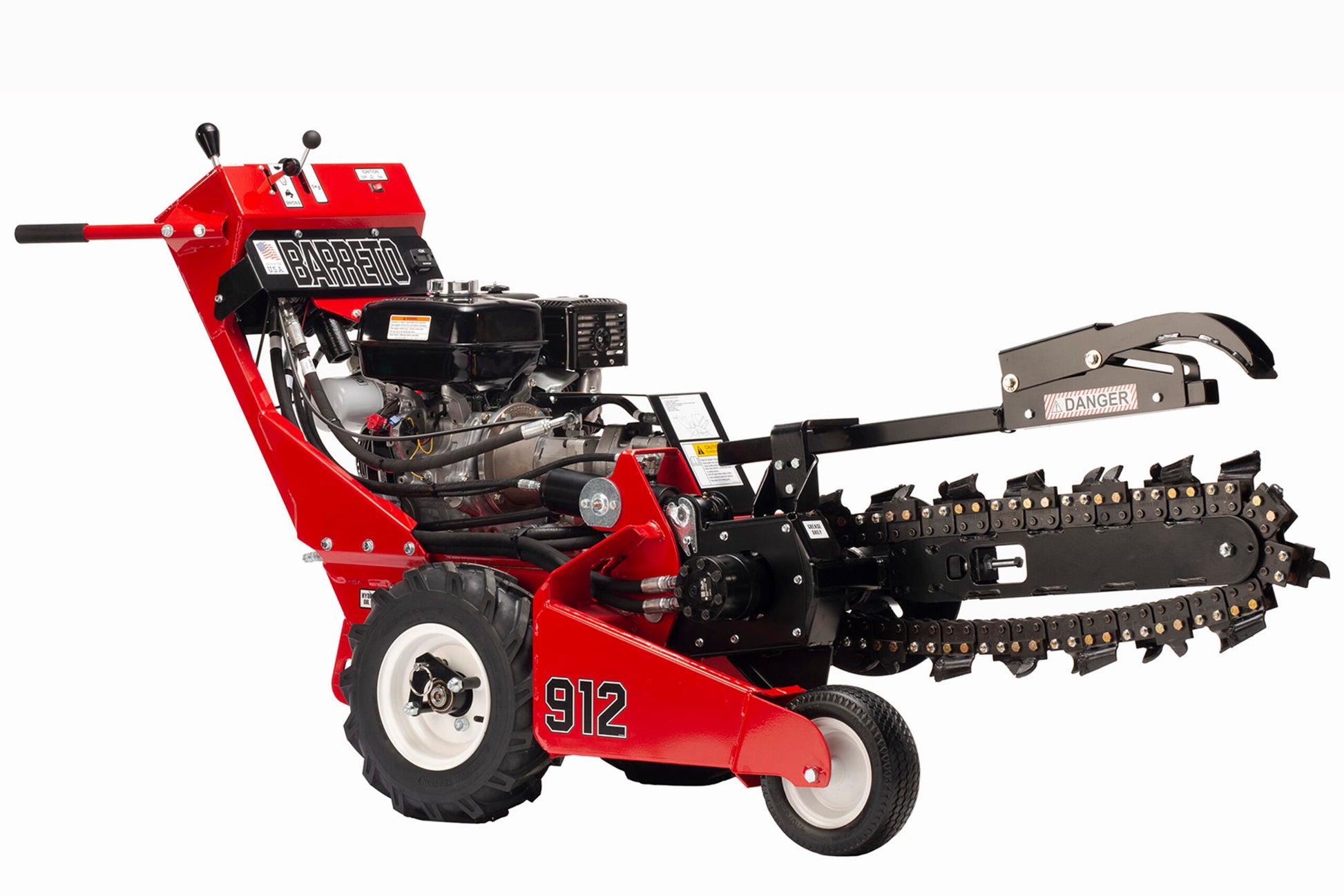

BARRETO 912HM MINI TRENCHER

BARRETO 912HM MINI TRENCHER

Barreto’s comprehensive trencher line offers models for every job, ranging from micro and mini units designed for tight spaces to heavy-duty track trenchers capable of digging trenches up to 48” deep.

As Low As $11,608.00 USD
As Low As $11,608.00 USD
Sale Sold out

As low as price includes all available discounts.

View full details
  • Key Features
  • Model Comparison
  • Available Accessories
  • Specifications
  • Offers and Financing

Key Features

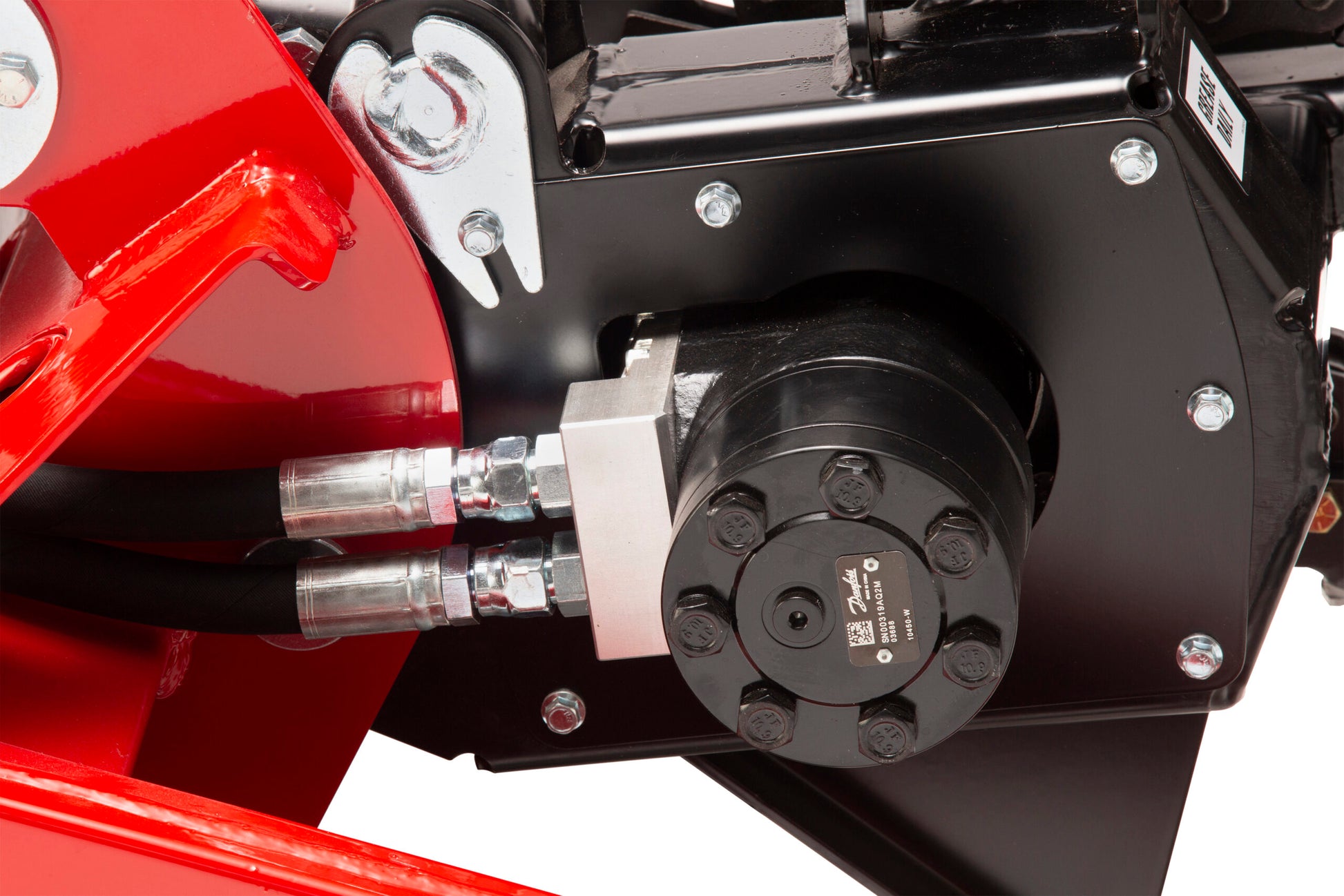

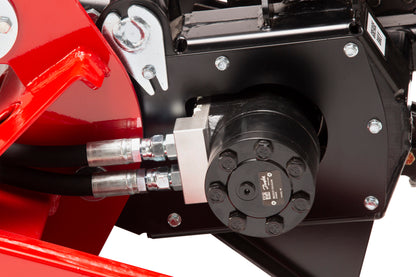

Reliable Hydraulic Design

Reliable hydraulic design keeps efficiency high and maintenance low

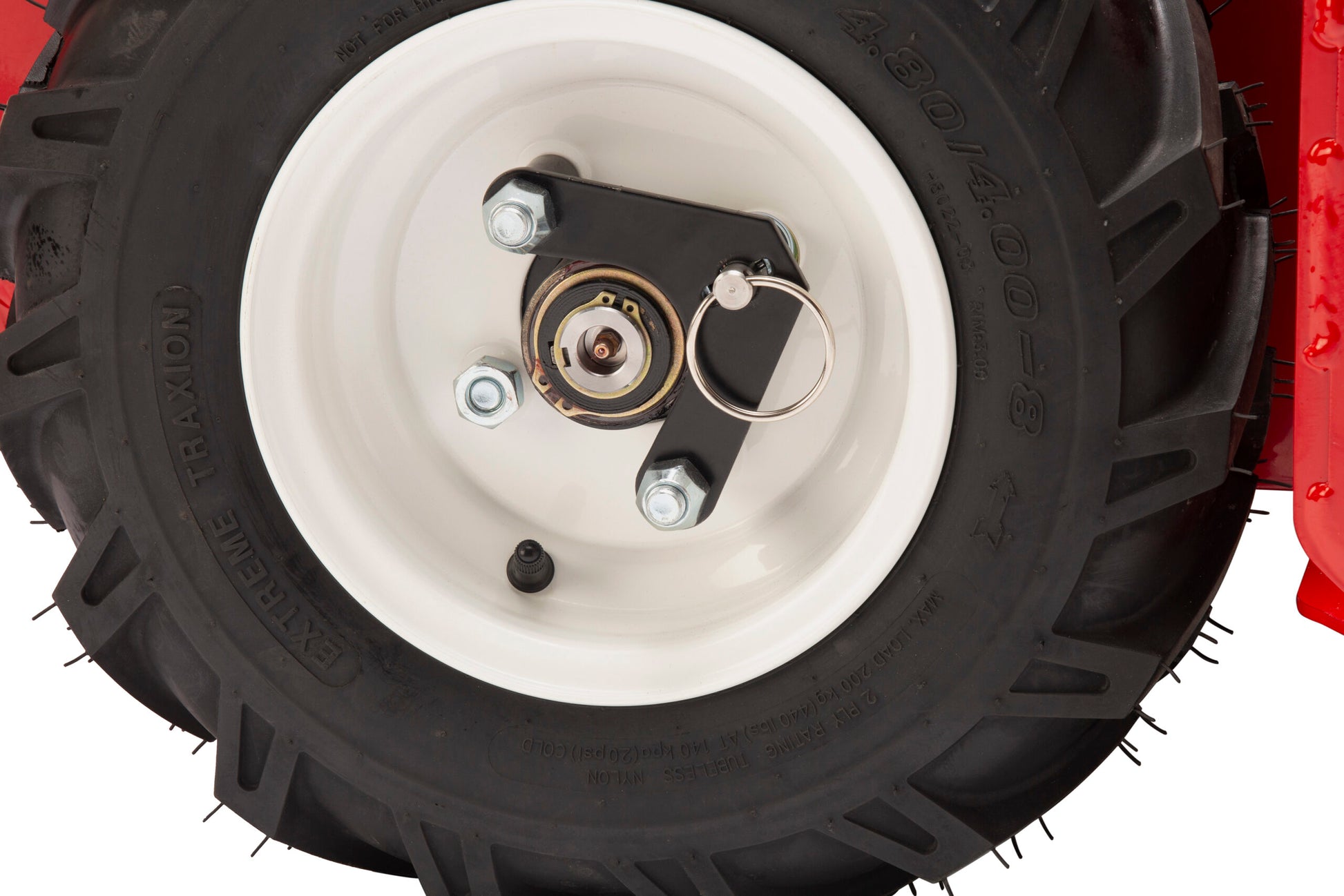

Free-wheeling Hubs

Free-wheeling hubs unlock to transport without starting the engine

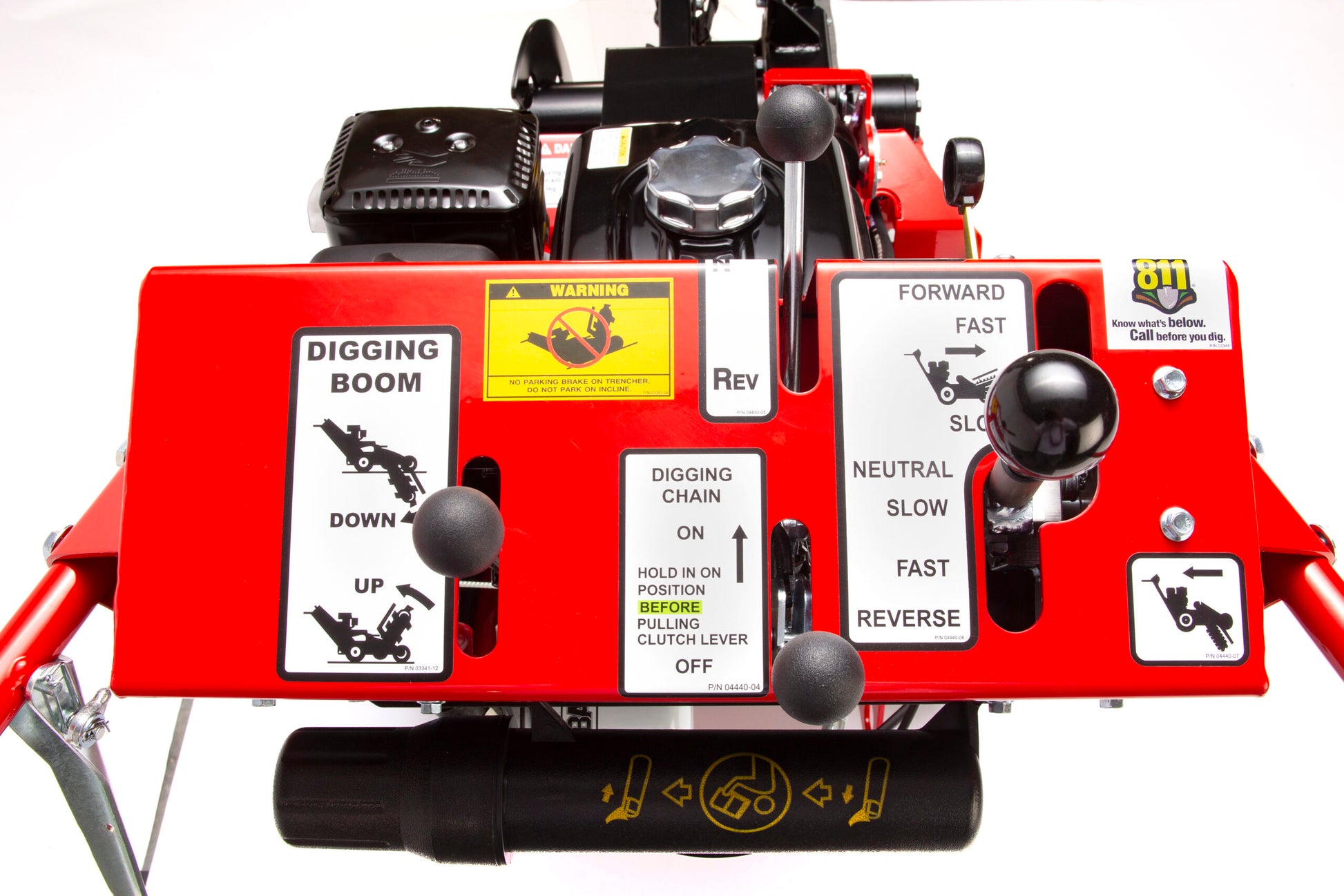

Simple Controls

Simple controls are easy to operate with no color codes

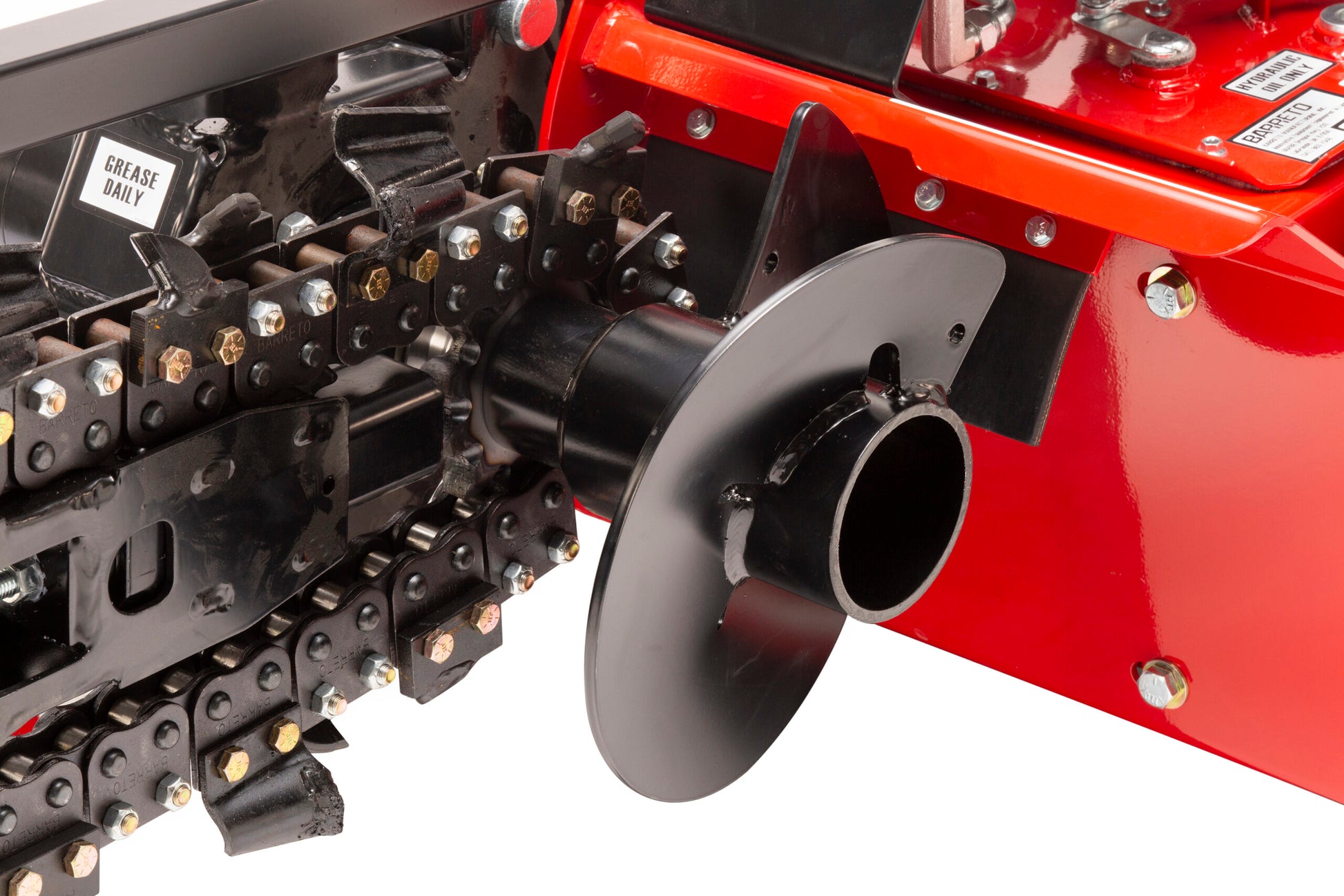

Boom Pivot Design

Boom pivot design keeps the bushing out of the dirt

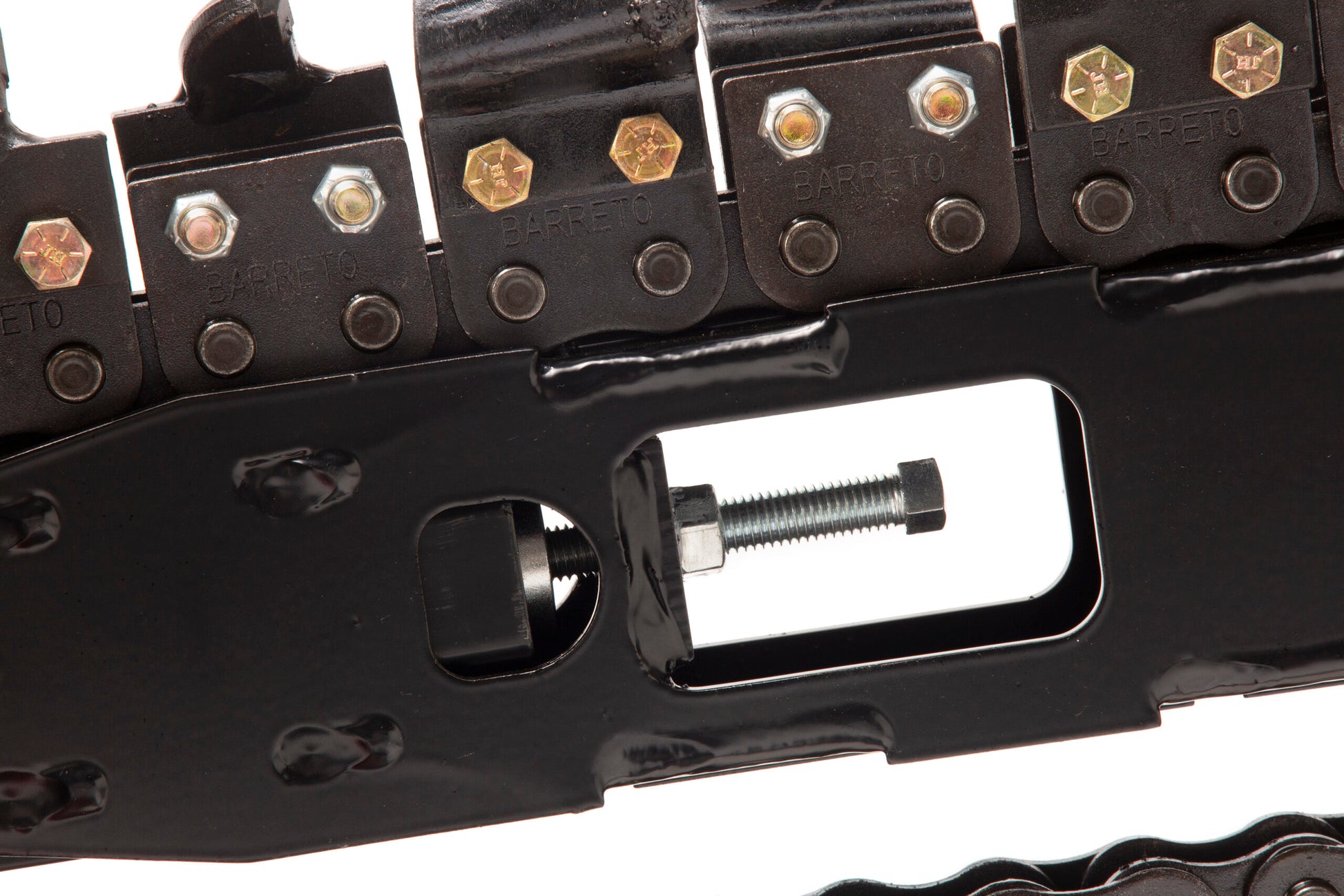

Reversible Chain

Reversible chain can be manually operated to dislodge debris

Model Comparison

Model Weight Height Length Width Wheel Base Boom Depth Chain Width Honda Briggs Vanguard Fuel Hydraulic Reservoir Ground Drive Forward Ground Drive Reverse Digging Chain Speed
712MTH Micro Trencher 400 lbs 43" 71.25" 30.5" 25.25" 12"/18" 4" GX200 N/A Gasoline 1.5 gallons 148 ft/min 23 ft/min 200 ft/min
912HM Mini Trencher 620lbs 43" 81" 28" 30" 12" / 18" / 24" 4" GX270 N/A Gasoline 9.5 gallons 132 ft/min 58 ft/min 227 ft/min
1324D / 1624D Standard Trencher 900 lbs 45.25" 83" 35" 35" 24" / 30" / 36" 4" GX390 16HP V-Twin Gasoline 14 gallons 180 ft/min 90 ft/min 260 ft/min
1324STK / 1624STK Track Trencher 1085 lbs 52.5" 84" 33.25" N/A 24" / 30" 4" GX390 16HP V-Twin Gasoline 7.3 gallons 210 ft/min 100 ft/min N/A
2024RTK / 2324RTK Track Trencher 1690 lbs 56.2" 108" 35.5" N/A 24" / 30" / 36" / 42" / 48" 4" GX390/ GX690 23HP V-Twin Gasoline 14 gallons 210 ft/min 90 ft/min N/A

Available Accessories (Sold Separately)

Trencher Crumber
The spring-loaded Barreto Crumber is excellent for assisting in trench clean-out. Especially effective in sandy or loose soil conditions.
Trencher Lift Eye
When loading your trencher with a hoist, the optional Barreto Lift Eye will make this task a piece of cake.

Offers and Financing

Scale Your Operation

Commercial financing and leasing up to $250,000 for serious lawn and landscape operations. Fund entire equipment packages with structured terms built for business growth.

View Details

Equipment Without the Wait

Fast, simple approvals for entrepreneurs needing equipment quickly. Covers new and used outdoor power equipment with instant decisions up to $25,000.

Prequalify

Specification Highlights

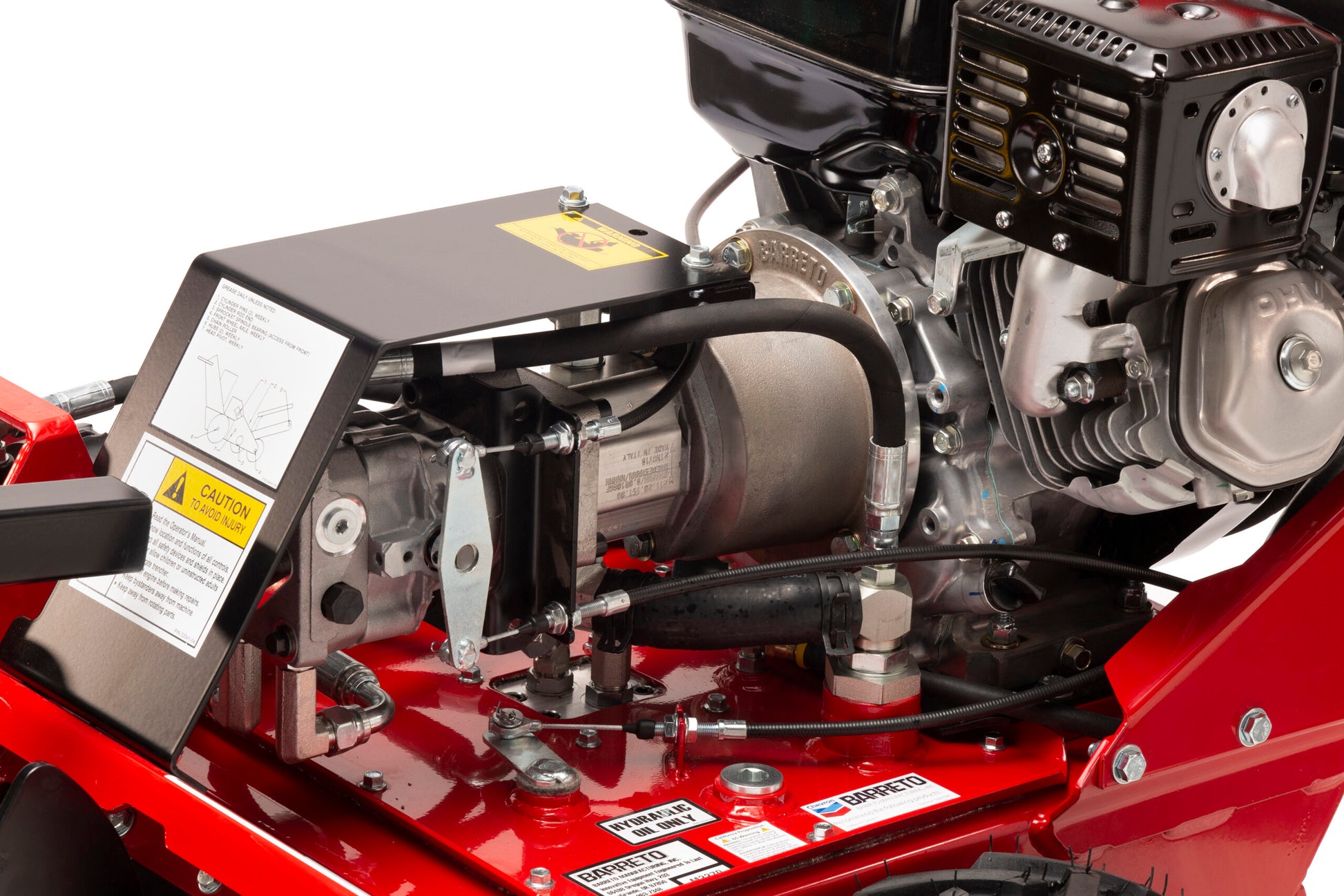

Engine Options

Model: Honda GX270

Dimentions

Height: U.S.: 43” | Metric: 1.09 m
Front Wheel to Handlebar: U.S.: 71” | Metric: 1.80 m
Boom End to Handlebar: U.S.: 81” | Metric: 2.06 m
Wheel Width: U.S.: 28” | Metric: 71.12 cm
Handlebar Width: U.S.: 29” | Metric: 73.66 cm
Wheel Base: U.S.: 30” | Metric: 76.2 cm

Additional Infromation

Weight: U.S.: 620 lbs | Metric: 281.23 kg
Hydraulic Reservoir: U.S.: 9.5 gallons | Metric: 35.96 liters
Ground Drive (Forward): U.S.: 132 ft/min | Metric: 40.23 m/min
Ground Drive (Reverse): U.S.: 58 ft/min | Metric: 17.68 m/min
Digging Chain Speed: U.S.: 227 ft/min | Metric: 69.19 m/min
Boom Depth Options: U.S.: 12”, 18”, or 24” | Metric: 30.48 cm, 45.72 cm, or 60.96 cm
Chain Width Options: U.S.: 4” or 6” | Metric: 10.16 cm or 15.24 cm

Barreto. Jobsite Tough

Barreto equipment is known for rugged construction, hydraulic power, and jobsite durability. Shop Barreto trenchers, tillers, and specialty equipment at Northshore Power Equipment, your Louisiana source for professional-grade ground-engaging machines.
