Barreto Trenchers - Dig Deep with Unstoppable Power

1 8

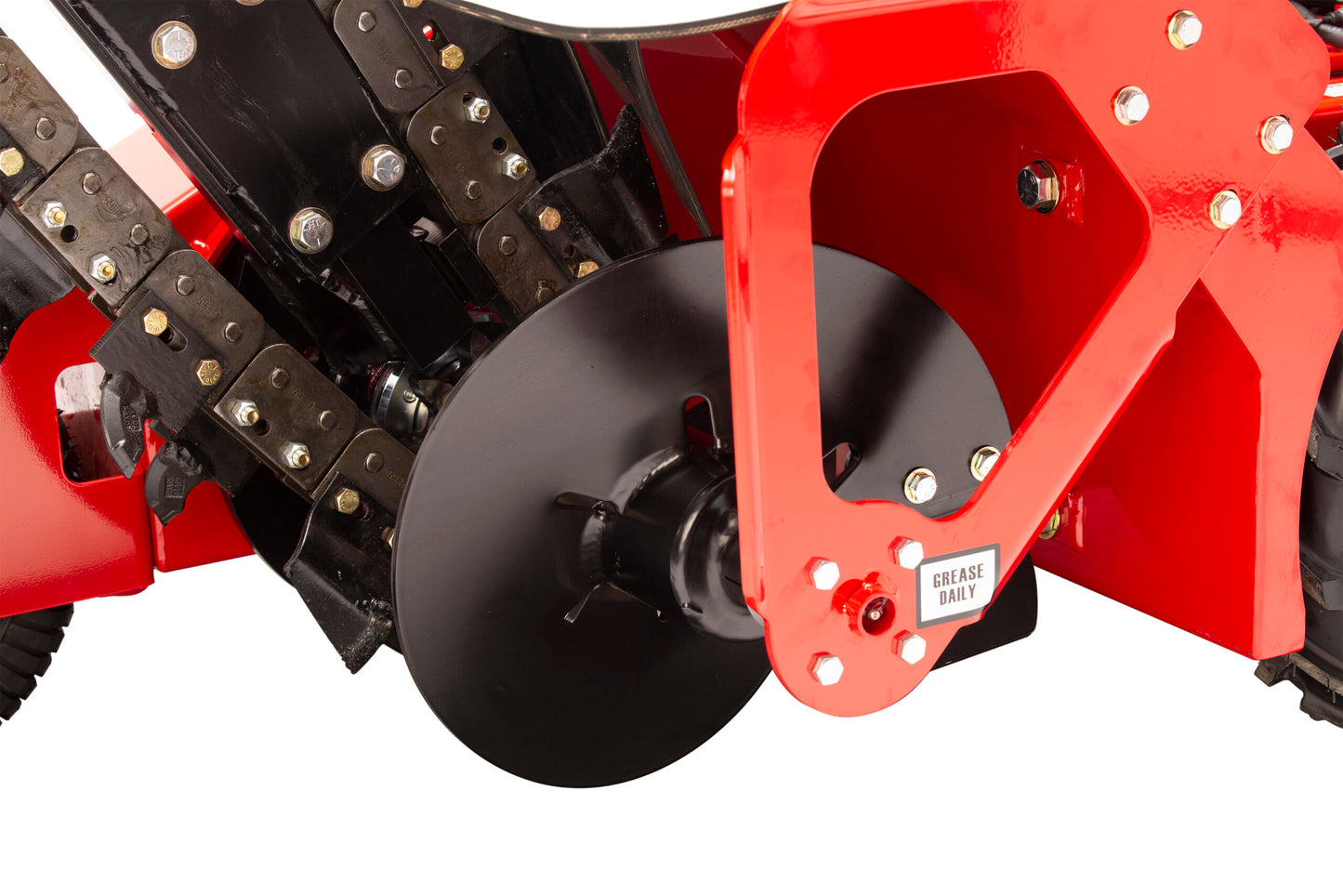

BARRETO 1624D STANDARD TRENCHER

BARRETO 1624D STANDARD TRENCHER

Barreto’s comprehensive trencher line offers models for every job, ranging from micro and mini units designed for tight spaces to heavy-duty track trenchers capable of digging trenches up to 48” deep.

As Low As $17,301.00 USD
As Low As $17,301.00 USD
Sale Sold out

As low as price includes all available discounts.

View full details
  • Key Features
  • Model Comparison
  • Available Accessories
  • Specifications
  • Offers and Financing

Key Features

Boom Tension

Boom tension can be easily adjusted when needed

Easy Maintenance And Repair

Quick access to all of the hydraulics for easy maintenance and repair

Simple Controls

Simple controls are easy to operate with no color codes to remember

Hydraulic Pumps

Hydraulic pumps are protected yet accessible

Reversible Chain

Reversible chain can be manually operated to dislodge debris

Model Comparison

No model comparison data found

Available Accessories (Sold Separately)

Trencher Crumber
The spring-loaded Barreto Crumber is excellent for assisting in trench clean-out. Especially effective in sandy or loose soil conditions.
Trencher Lift Eye
When loading your trencher with a hoist, the optional Barreto Lift Eye will make this task a piece of cake.

Offers and Financing

Scale Your Operation

Commercial financing and leasing up to $250,000 for serious lawn and landscape operations. Fund entire equipment packages with structured terms built for business growth.

View Details

Equipment Without the Wait

Fast, simple approvals for entrepreneurs needing equipment quickly. Covers new and used outdoor power equipment with instant decisions up to $25,000.

Prequalify

Specification Highlights

Engine Options

Model 1324D: Engine: Honda GX390
Model 1624D: Engine: Briggs & Stratton Vanguard V-Twin | Horsepower: 16 HP

Dimensions

Transport Height: U.S.: 46” | Metric: 1.17 m
Transport Width: U.S.: 35” | Metric: 88.9 cm
Front Wheel to Handlebar: U.S.: 71” | Metric: 1.80 m
Boom End to Handlebar: U.S.: 83” | Metric: 2.11 m
Wheel Base: U.S.: 35” | Metric: 88.9 cm
Trench Center to Outside Left: U.S.: 16” | Metric: 40.64 cm
Trench Center to Outside Right: U.S.: 19” | Metric: 48.26 cm

Additional Infromation

Weight: U.S.: 900 lbs | Metric: 408.23 kg
Hydraulic Reservoir: U.S.: 14 gallons | Metric: 52.99 liters
Ground Drive (Forward): U.S.: 180 ft/min | Metric: 54.86 m/min
Ground Drive (Reverse): U.S.: 90 ft/min | Metric: 27.43 m/min
Digging Chain Speed: U.S.: 260 ft/min | Metric: 79.25 m/min
Boom Depth Options: U.S.: 24”, 30”, or 36” | Metric: 60.96 cm, 76.2 cm, or 91.44 cm
Chain Width Options: U.S.: 4” or 6” | Metric: 10.16 cm or 15.24 cm
